Loc3-10Tx Transmitter - Connection Block
The connection block consists of:
• Output (XLR) socket – for the direct connection lead and clamp.
Charger socket (to charge rechargeable battery pack – the charging socket is present even if
rechargeable batteries have not been purchased).
• Transmitter 12V DC power lead used to power the transmitter from a vehicle and if
rechargeable batteries are fitted, will charge the transmitter at the same time.
• Fuse – this protects the transmitter circuitry in the event of the transmitter receiving up to 250V
incoming voltage on the output leads, or higher than allowed current.
• A beeper is positioned behind the small hole

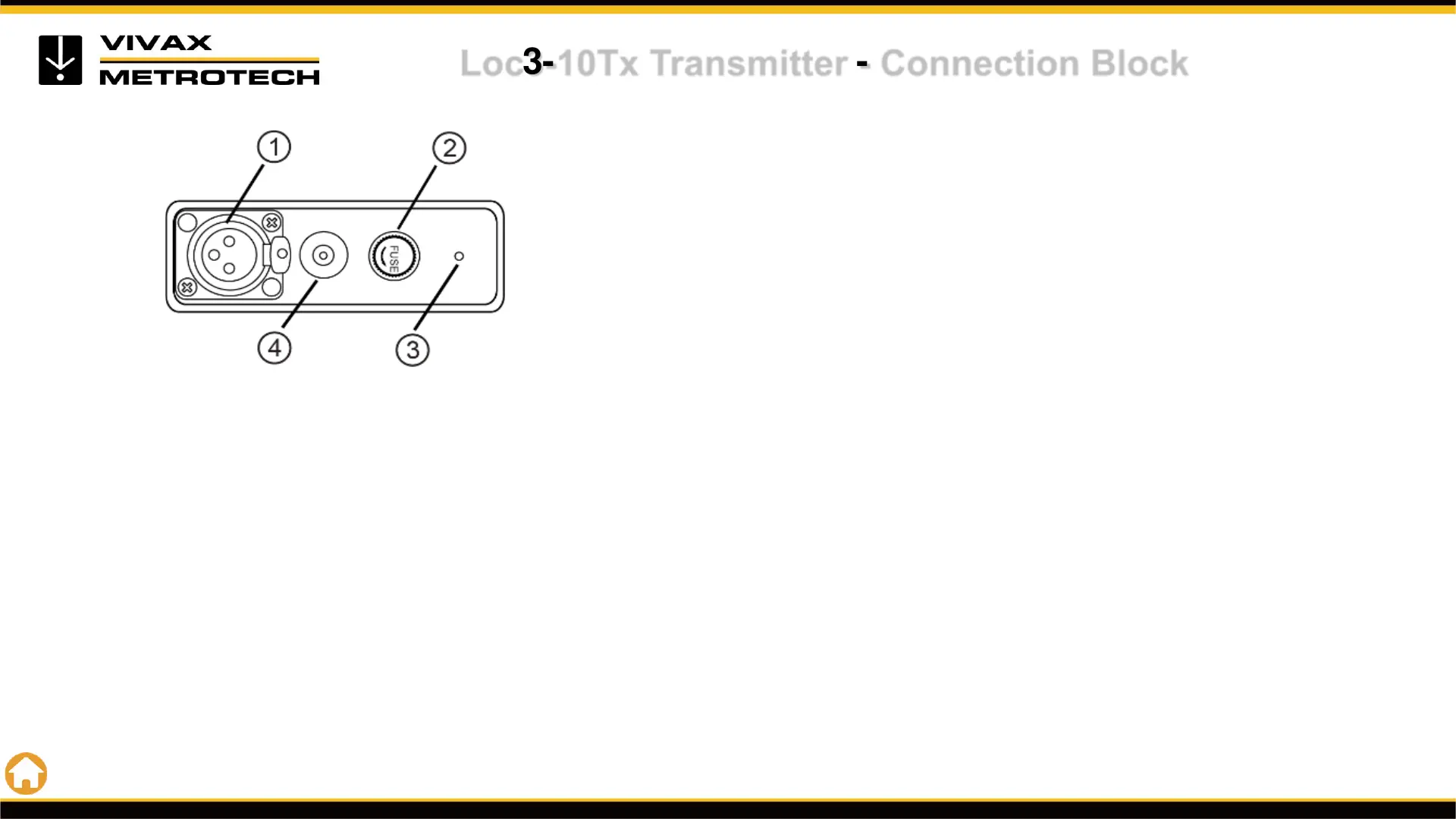

1 - Output (Connection
2 - Output Protection (Fuse)
3 – Speaker (beeper)
4 - Battery Charging Socket & DC Input
