Vivax Metrotech vLoc3 Series Quick Guide

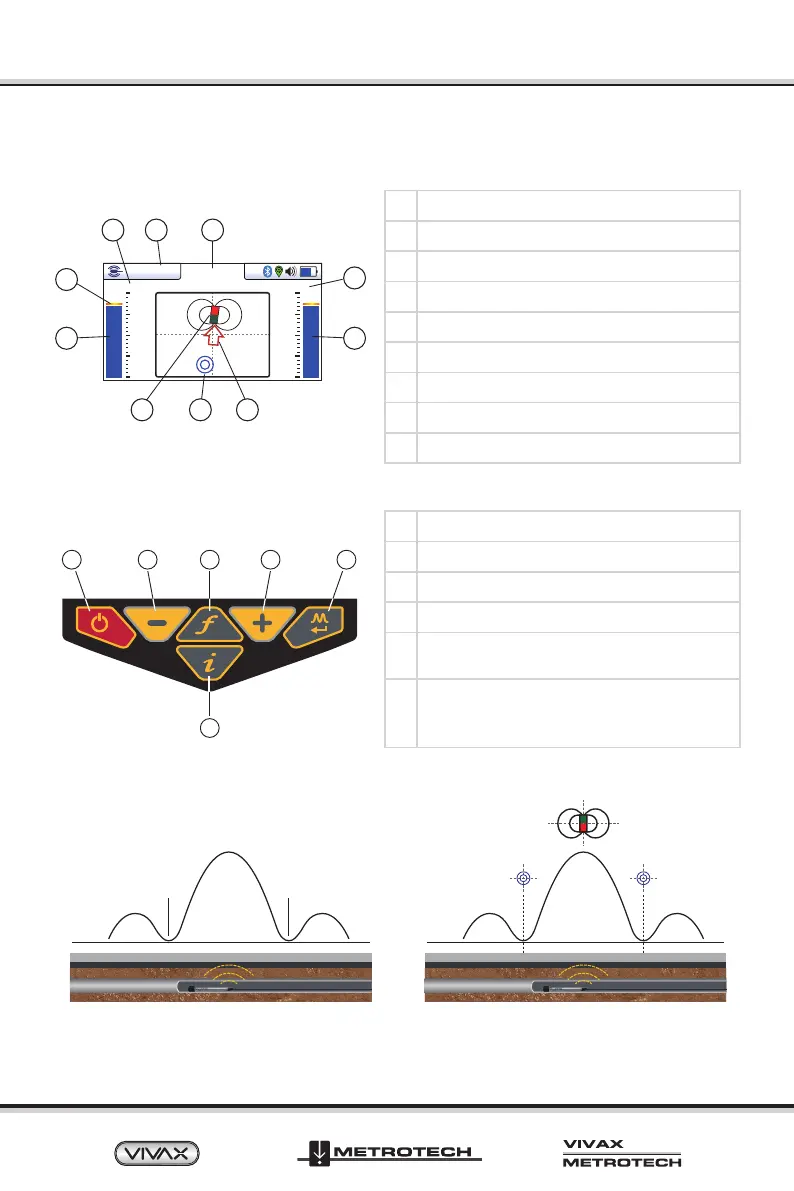

Locating sondes with a vLoc3 series receiver
Interpreting the sonde signalsInterpreting the sonde signals
The vLoc3-Cam Keypad
1
2
3
4
5
6
On/Off button
Reduce sensitivity
Select frequency
Increase sensitivity
Information button,
Short press = depth reading and logging
Long press = enter setup menu
Return button,
Short press = change locate modes
The vLoc3-Cam Display
1
2
3
4
5
6
7
8
9
Peak signal detector
Signal strength bar graph
Sonde icon
Null point
Direction to sonde
Frequency selection
Numeric signal level (mirrors the bar graph)
Depth Reading
Gain setting
67.2
25dB
8kHz
3’9’’
2 2
3 4
5
6
8 7
1
9
™
1 2 543
6
The main peak with null points
before the small peaks
The display shows different icons
for the main peak and null points
NULL NULL
MAIN PEAK
Page 2
