Vivax ACP-09CH25ZNM Service Manual

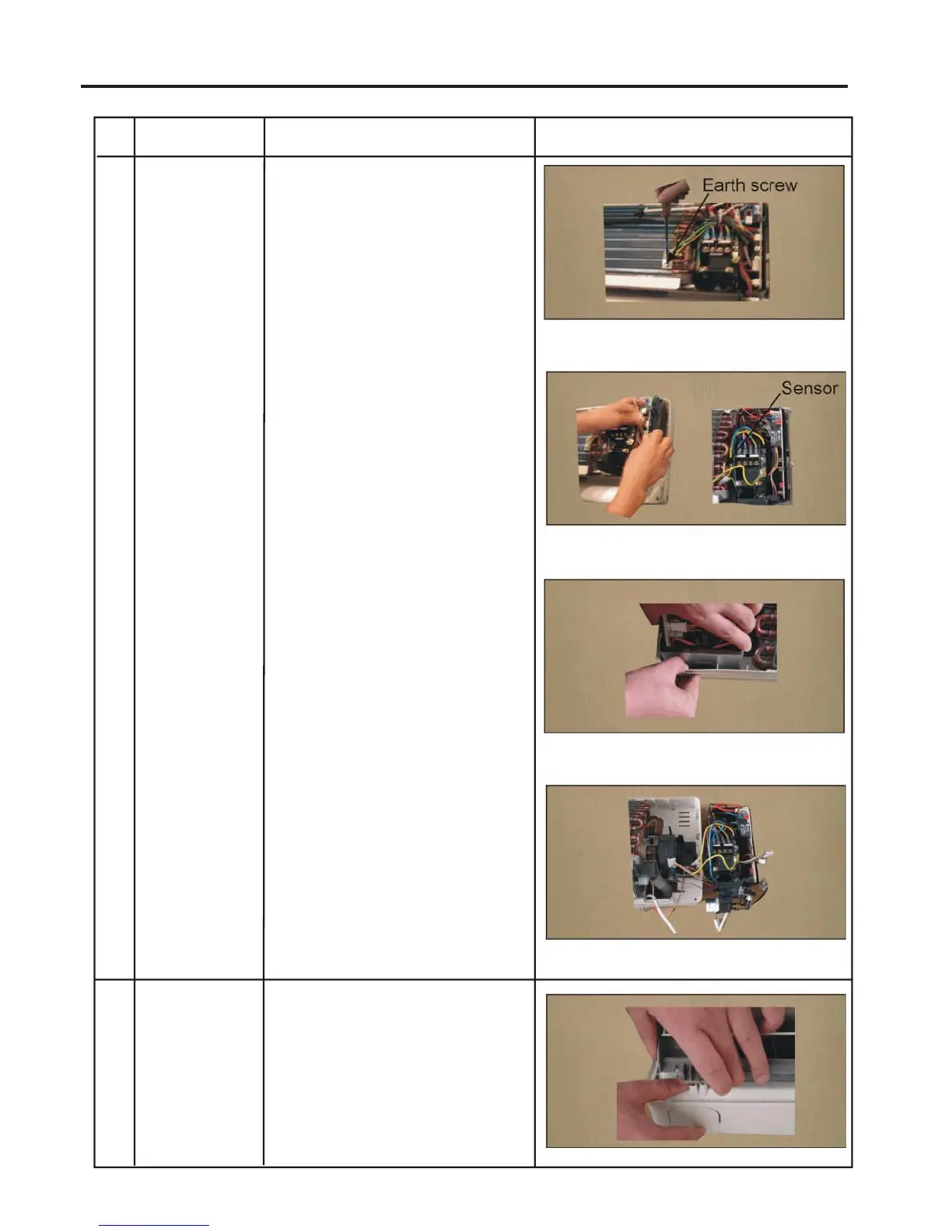

4.Separate the electrical box
from the indoor unit.
1.Loosen the earth screw in
evaporator.
2.Loosen the s
ull softly the indoor
pipe temperature sensor out
from the pipe casing.
tepping motor
line, and p
No
Parts Procedure
Remark
3.Push the hook outside to take
the electrical box out easily.
2
Electrical
parts
3 Ass’y tray
drain
1.Push the left and right hooks
to make the ass’y pulled out.
22
TO DISASSEMBLE MECHANICAL PARTS

Vivax ACP-09CH25ZNM Specifications

General

Type	Split System
Energy Efficiency Class (Cooling)	A++
Energy Efficiency Class (Heating)	A+
Refrigerant	R32
Power Supply	220-240V, 50Hz
Power Consumption (Heating)	0.85 kW
Noise Level (Indoor Unit)	37 dB(A)
