ENG VIVAX
6
1. Misting dish
2
. Front guard
3. Fan blade nut
4. Fan blade
5. Rear guard nut
6. Rear guard
7. Motor
8. Adjusting knob
9. Base
10. Base nut
11. Misting outlet
12. Mist tube inlet
13. Mist tuber
ASSEMBLY AND INSTALLATION
1. Open the packing and ensure all the parts are present.
2. Assemble the Chassis components.
3. Place the main body onto the assembled Chassis.
4. Insert the stanchion into the opening of the top of the main body
and secure, using the stanchion screw.
5. Affix the motor to the support pole and connect to the top of the
stanchion.
6. Place back guard onto the motor and secure with the rear guard
screw.
7. Place the fan blade and secure with the fan blade screw, by turning
in an anti-clockwise direction.
8. Place the hoop net over the front guard and connect to the back
guard.
9. Tighten the hoop net.

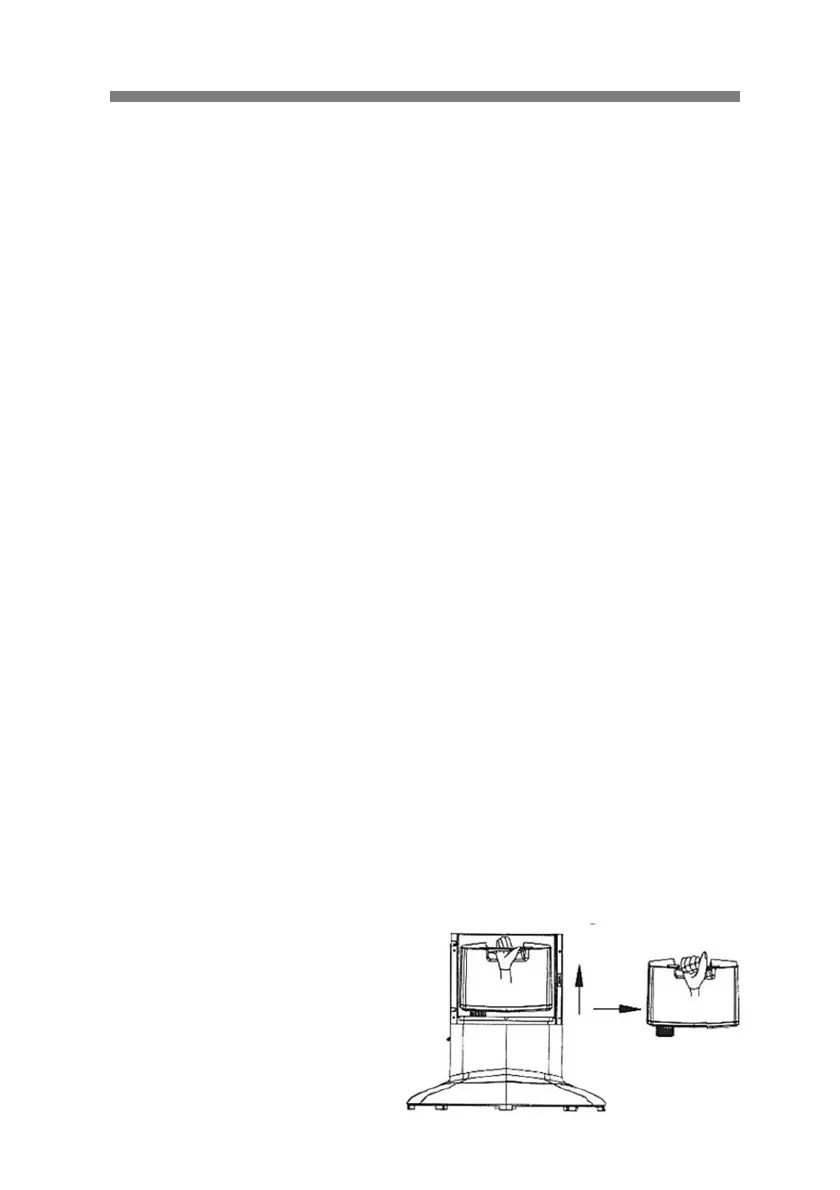

WATER TANK
Remove the water tank
horizontally
