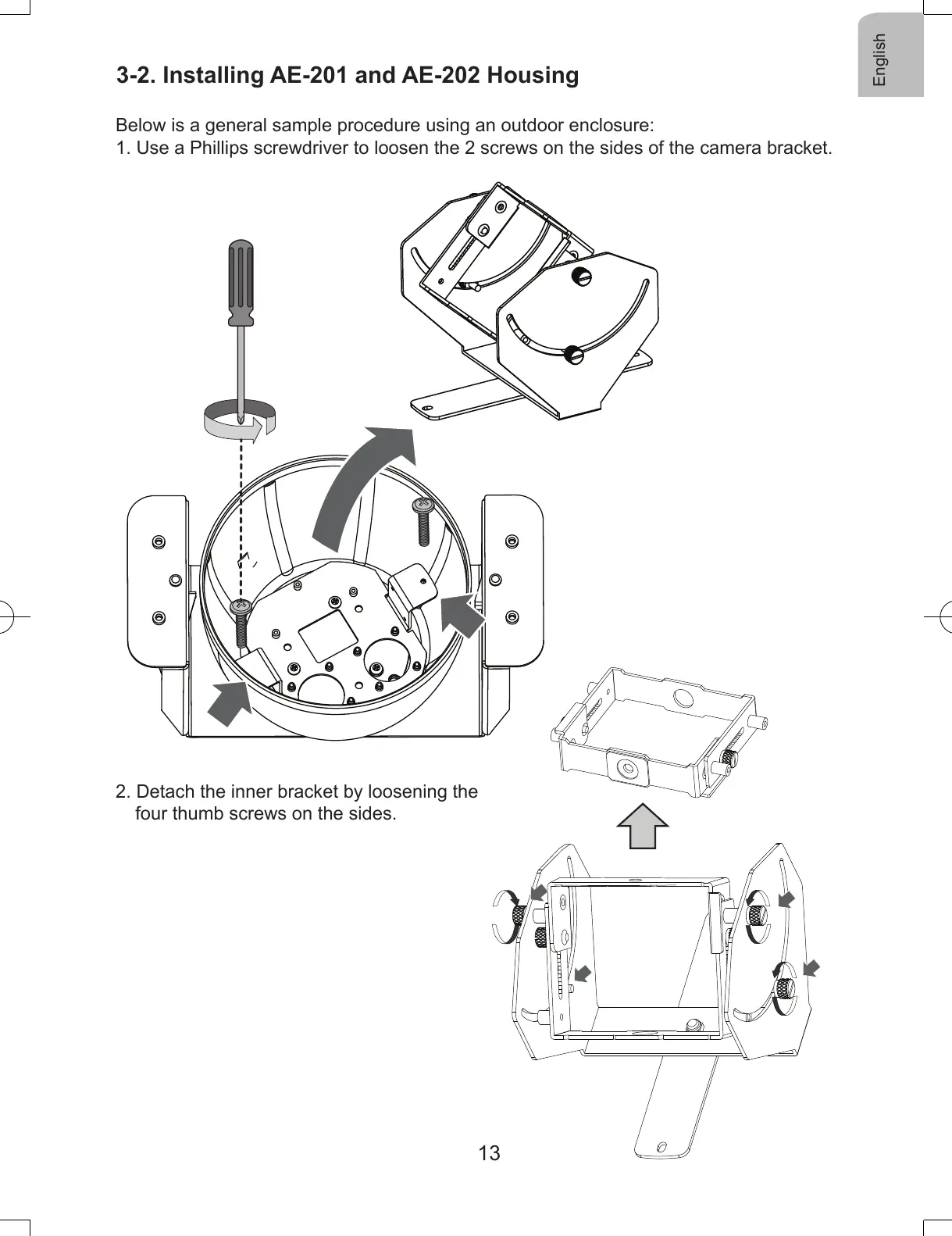

3-2. Installing AE-201 and AE-202 Housing
Below is a general sample procedure using an outdoor enclosure:
1. Use a Phillips screwdriver to loosen the 2 screws on the sides of the camera bracket.
2. Detach the inner bracket by loosening the
four thumb screws on the sides.
