19
English
3
4
5
7
6

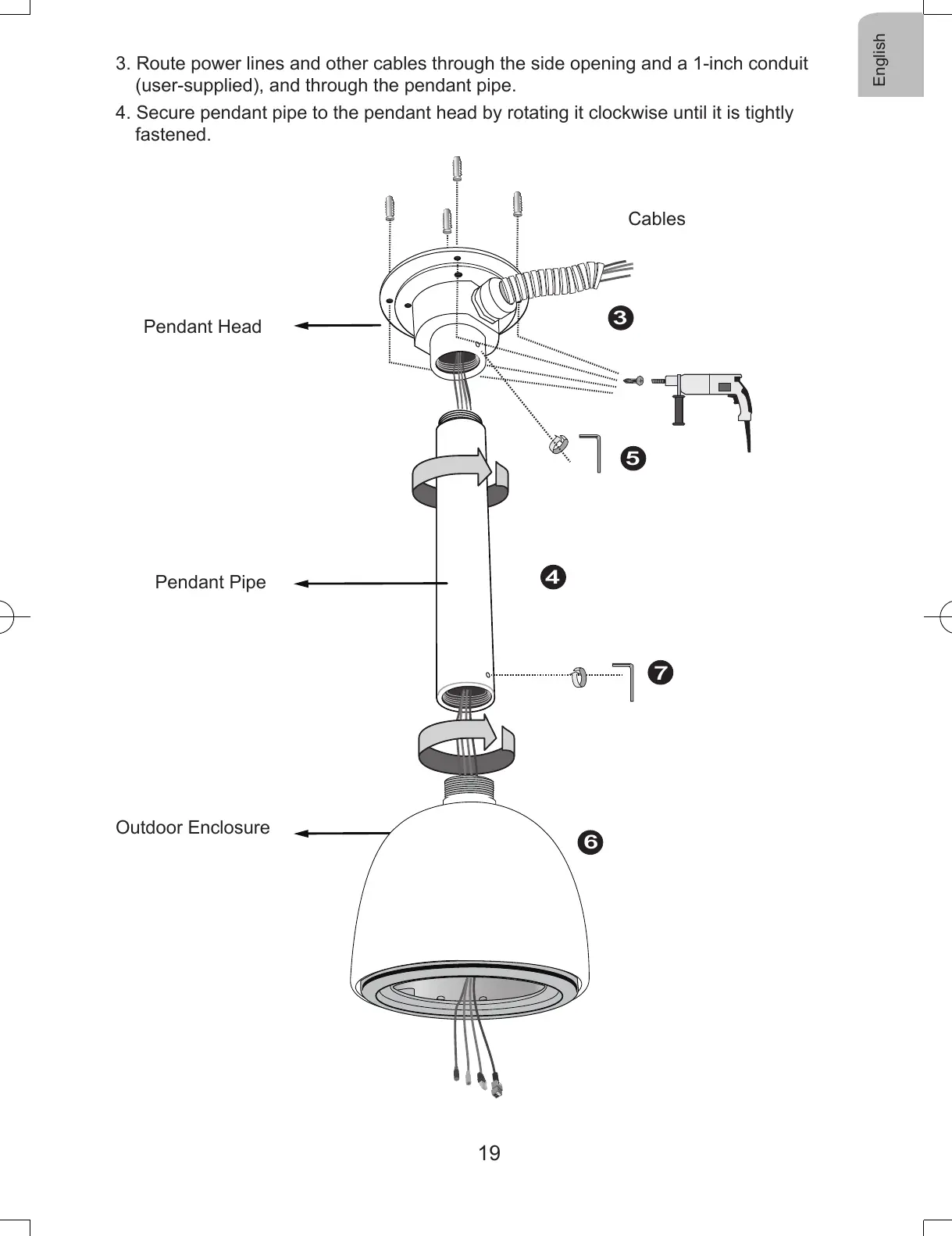

Pendant Head
Pendant Pipe
Outdoor Enclosure
Cables
3. Route power lines and other cables through the side opening and a 1-inch conduit
(user-supplied), and through the pendant pipe.
4. Secure pendant pipe to the pendant head by rotating it clockwise until it is tightly
fastened.
IP8152_housing_ig_VVTK_v1.0_20121206.indd 19 2013/1/10 下午 01:36:49
