27
English

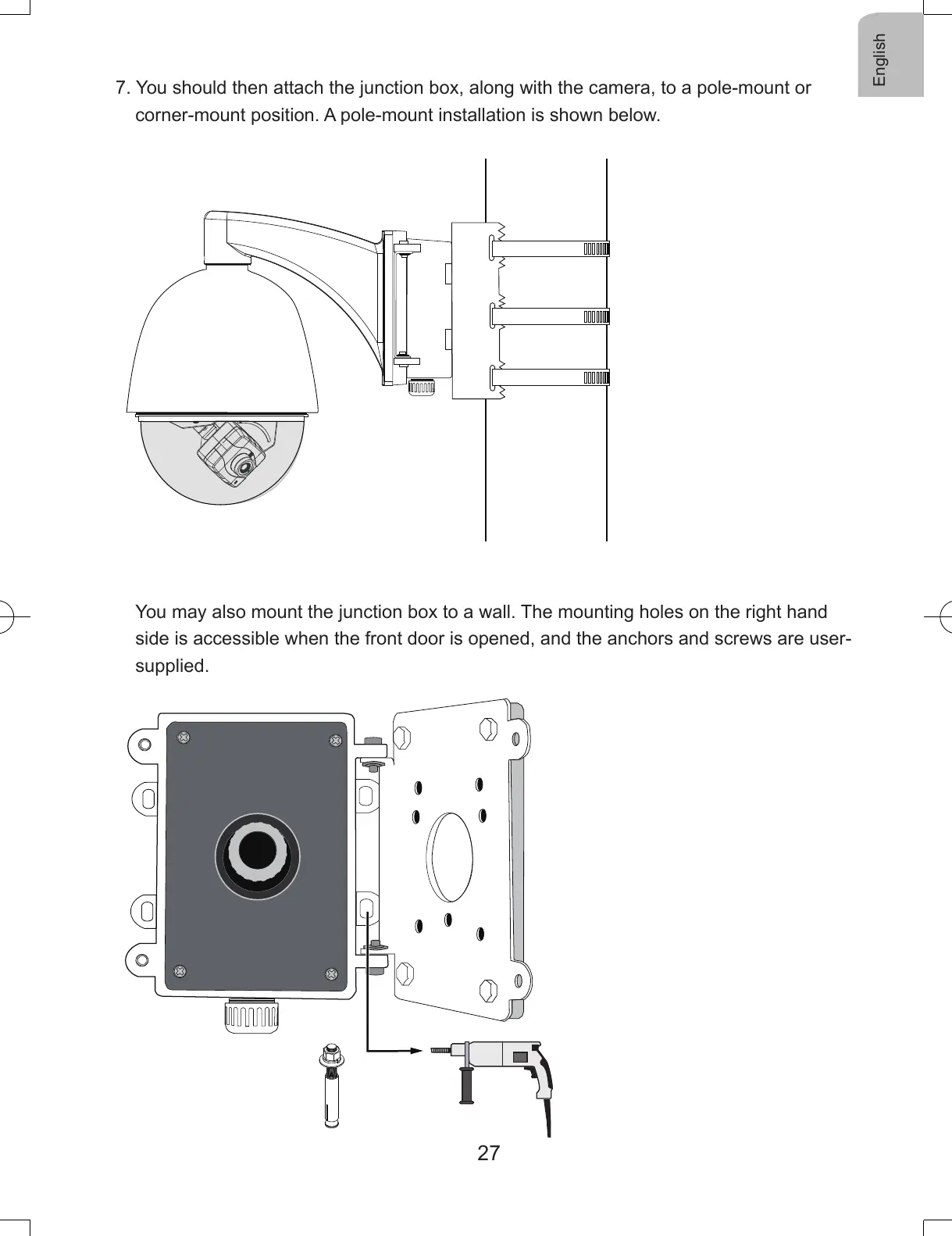

7. You should then attach the junction box, along with the camera, to a pole-mount or
corner-mount position. A pole-mount installation is shown below.
You may also mount the junction box to a wall. The mounting holes on the right hand
side is accessible when the front door is opened, and the anchors and screws are user-
supplied.
IP8152_housing_ig_VVTK_v1.0_20121206.indd 27 2013/1/10 下午 01:36:52
