FD8361
3
5 ~ 10 cm
1
2
M5X10

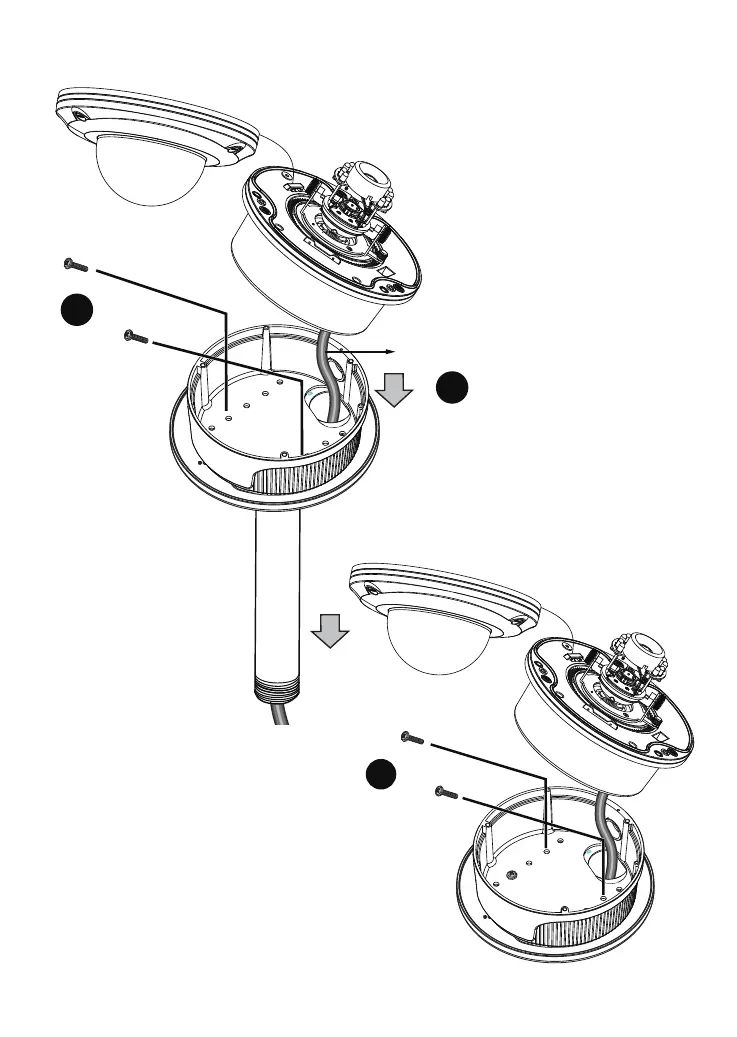

1. Secure 2 of the mounting screws
(those that are away from the routing
hole). Do not completely tighten the
screws yet. Refer to the previous
page for mounting hole positions.
2. Pass cable assembly through the
adapter and the 3/4" pipe.
3. Install another 2 screws to the positions
close to the routing hole.
To Next Page
