VIVOTEK
20 - User's Manual
8. The pinouts are listed below. The DI/DO, audio, and power wires are user-supplied.

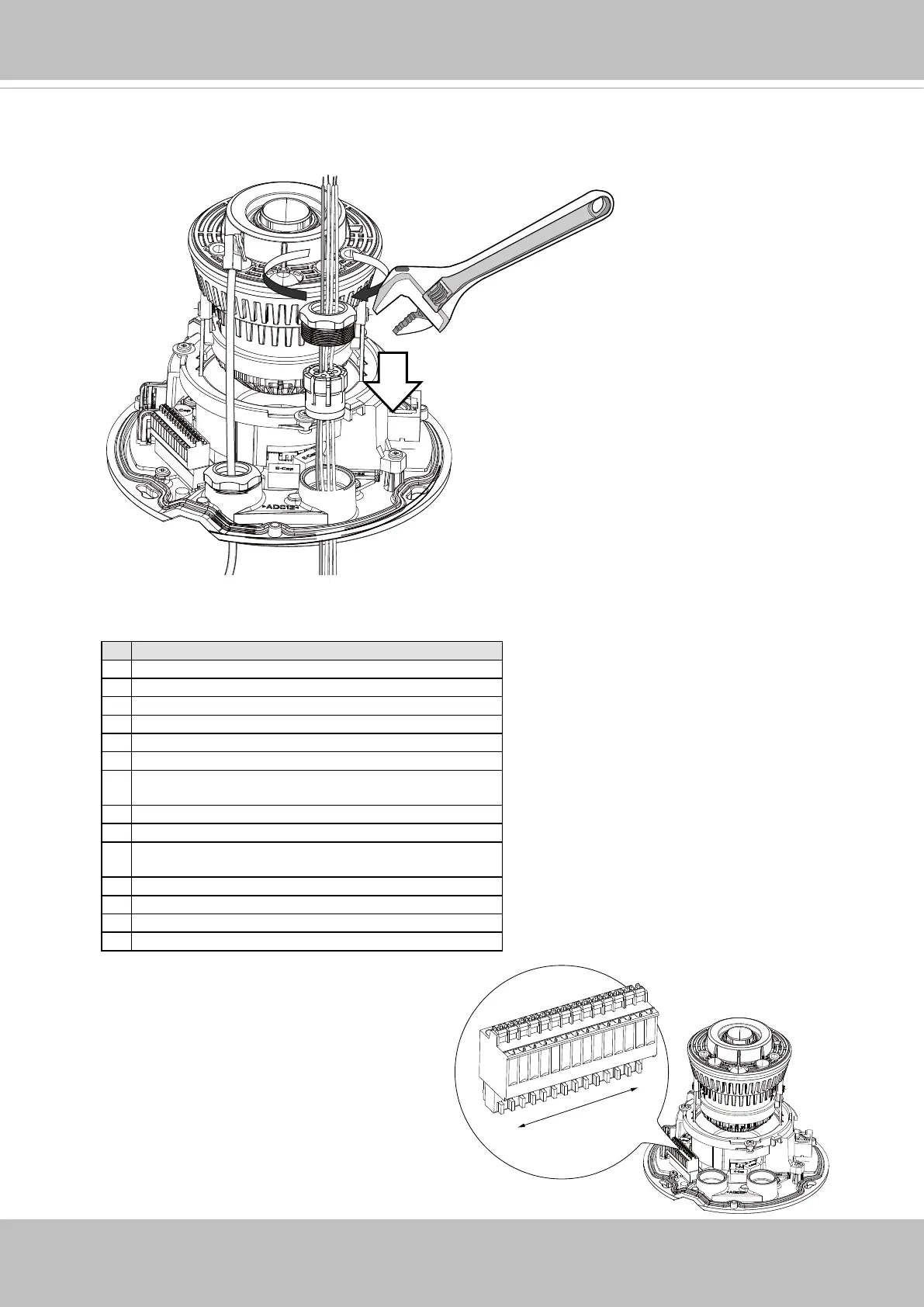

7. Pass the DI/DO, audio, and power wires through the waterproof cable gland components,
and through the rubber seal as shown below. Tighten the cable gland components using
a crescent wrench.
1
14
# Name
1 AC 24V
2 AC 24V
3 DC 12V IN-
4 DC 12V IN+
5 VIDEO-OUT N
6 VIDEO-OUT P
7 DI- (Common GND for all DI, DO, MIC-IN, and AUDIO-
OUT)
8 DI+ 1
9 DI+ 0
10 DO- 1 (If external devices are powered by external
sources, can use DI- as common ground)
11 DO- 0
12 DO+ (5V; if used, can be paired with DO- 0 and DO- 1.)
13 MIC-IN P
14 AUDIO-OUT P
