III-2. Installing the Pendant Head and Pipe
3/4”pendent pipe
AM-522 adapter
AM-118 pendant head
3/4” female adapter

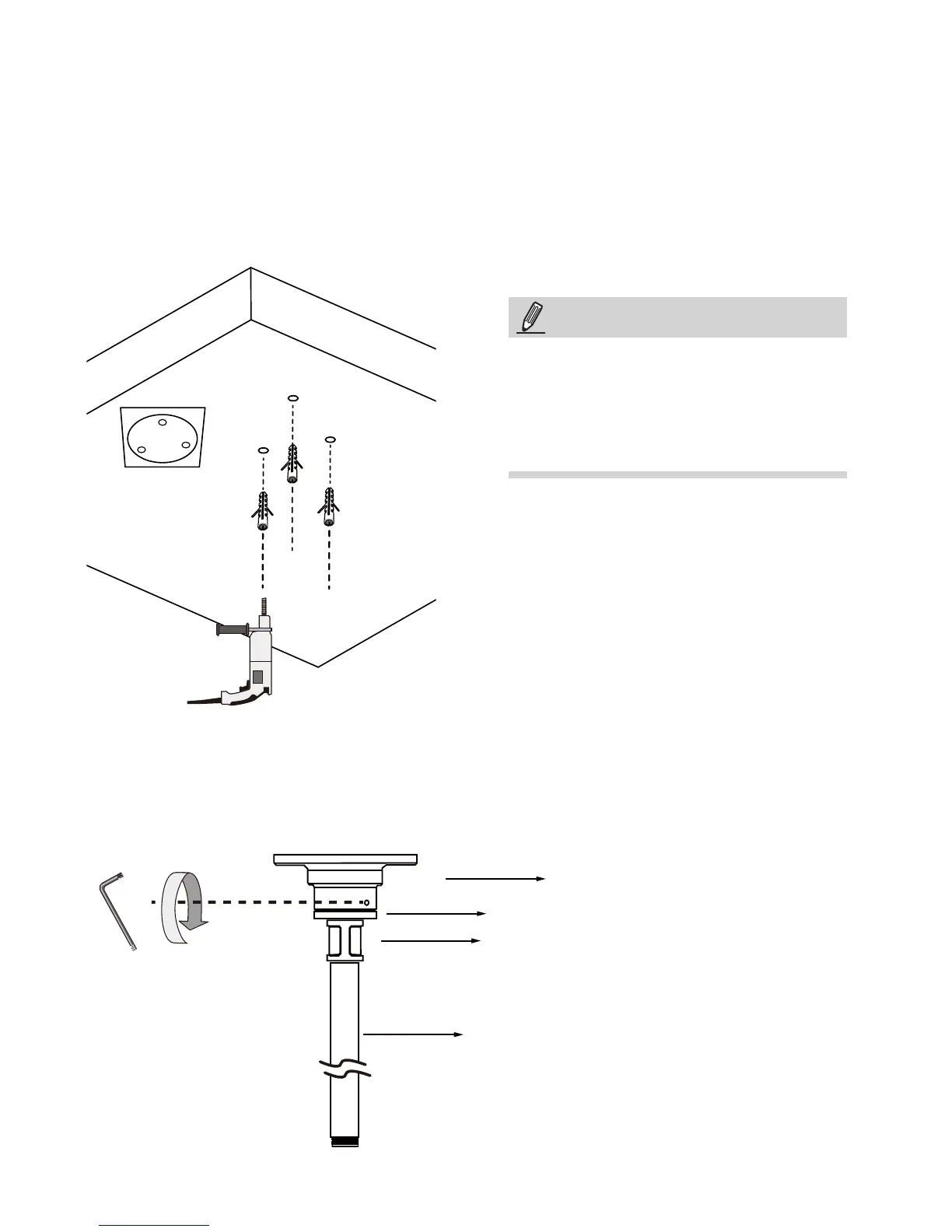

Below are the sample procedures using a pendant head and pendant pipe:
1. Determine a hard surface ceiling location, and use the alignment sticker to mark the
positions where holes will be drilled to secure the pendant head. Hammer the anchors
into the ceiling.
Note that mounting holes should be 10mm in diameter and 60mm deep. The included
screws are M6.2 x75mm.
2. Install an NPT or PT male thread pipe (length determined by installers) by turning it
clockwise to the pendant head, and secure the connection using an included 3mm hex
wrench.
NOTE:
This mount type applies to NPT pipes
only.
For NT pipes, xture on the other end
should be handled by users.
To Next Page
