VIVOTEK
User's Manual - 23

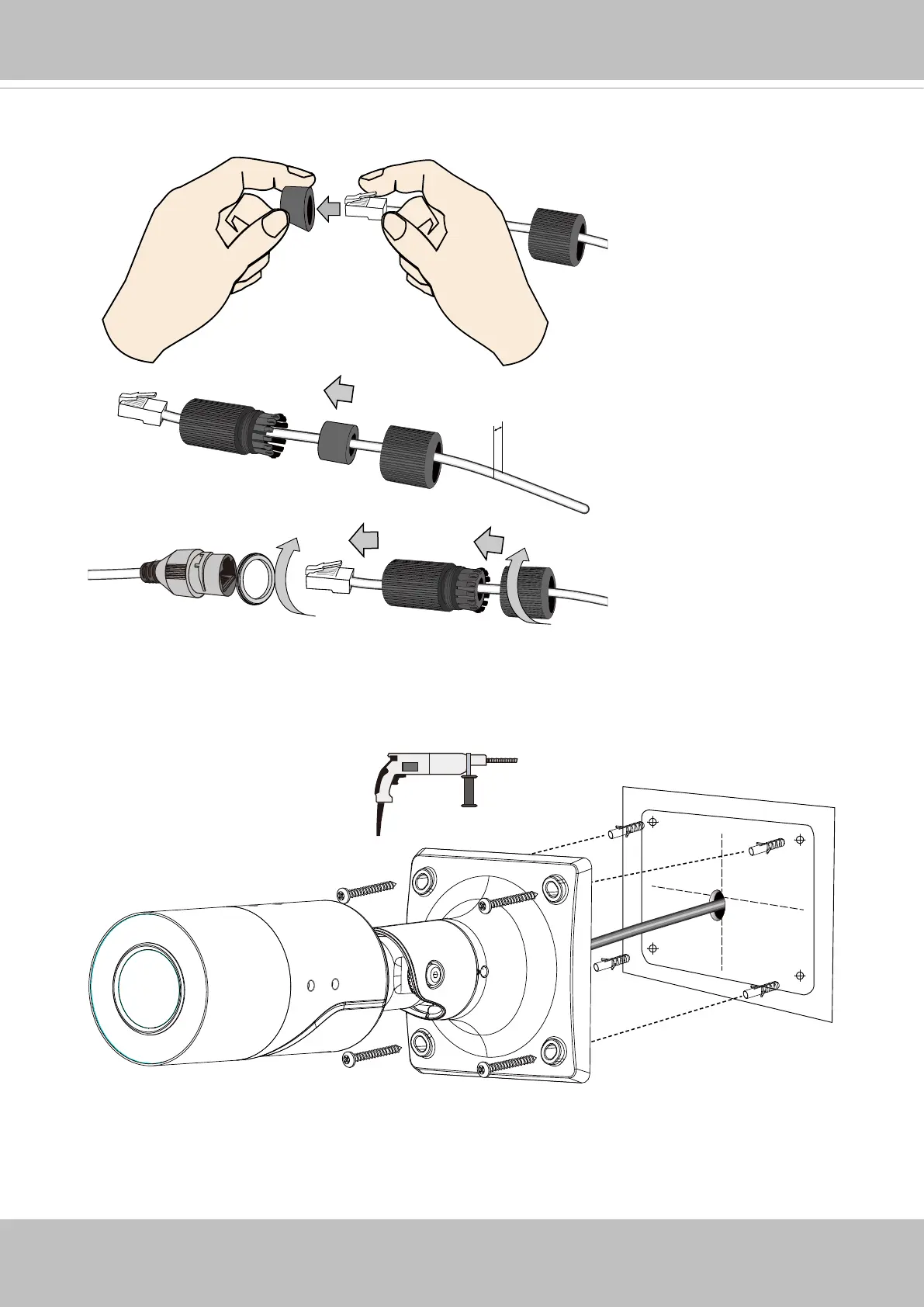

9. Use the alignment sticker to drill mounting holes on the wall. If preferred, drill a routing
hole. Install the camera by hammer in the wall anchors and drive screws.
5.5 ~ 6.5mm
8. Pass an Ethernet cable through the waterproof cable gland components, and through the
rubber seal as shown below. Connect the Ethernet cable to the camera's RJ45 onnector.
