VIVOTEK
12 - User's Manual

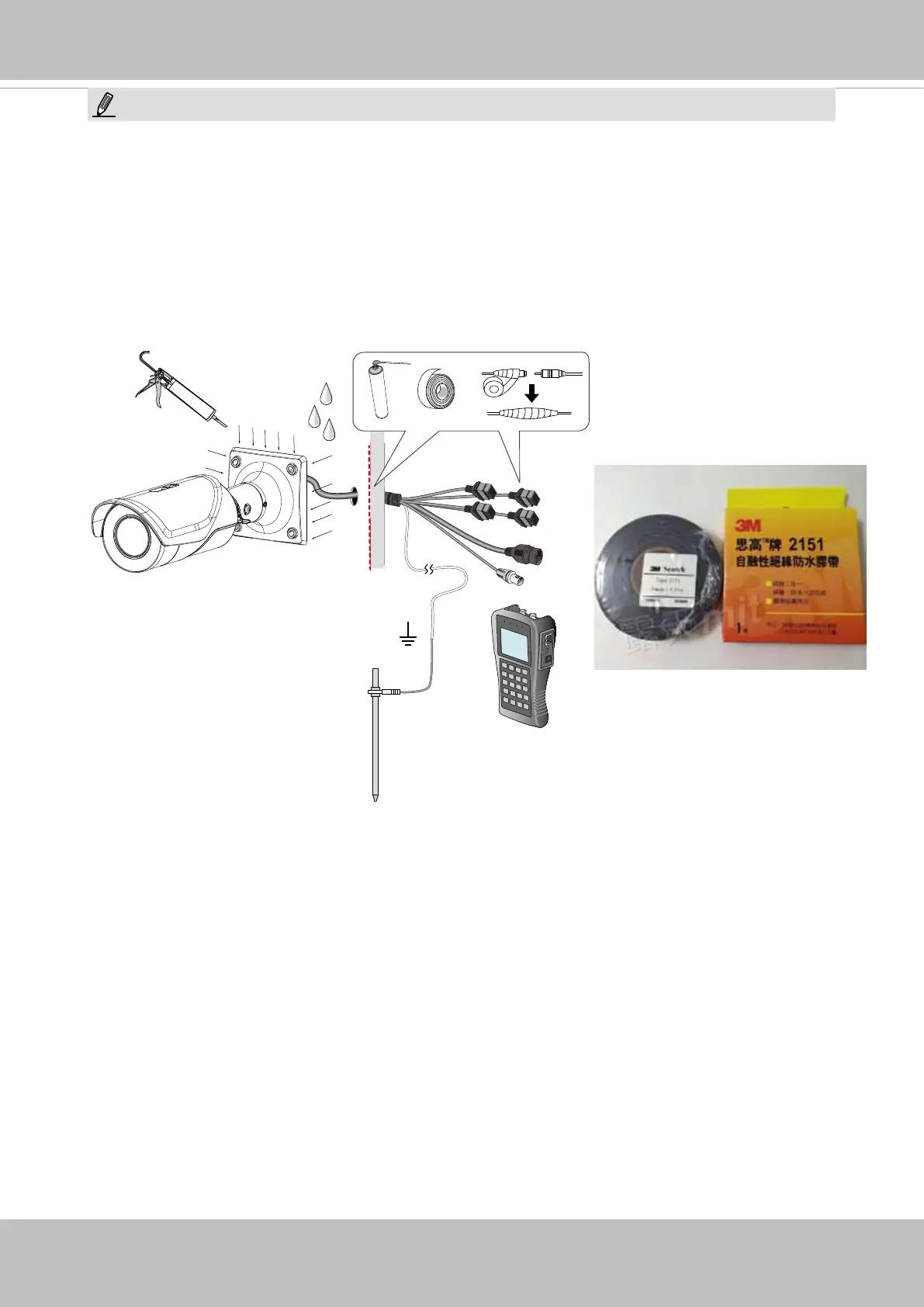

If you are not using the junction box, use putties to seal the cable joints for water-proong.
Connect the ground wire to a grounded earth rod with a resistance smaller than 4Ω, with a
section area larger than 25mm
2
, to a ground rod 1.5 meters into the ground.
You can use the BNC cable for connecting a video tester during the initial setup. You can
also caulk the peripherals of the camera bracket if the junction box is not in use.
NOTE:
The ground wire is user-supplied.
3M 2151 series
