Ethernet 10/100 RJ45 Plug
Connectors

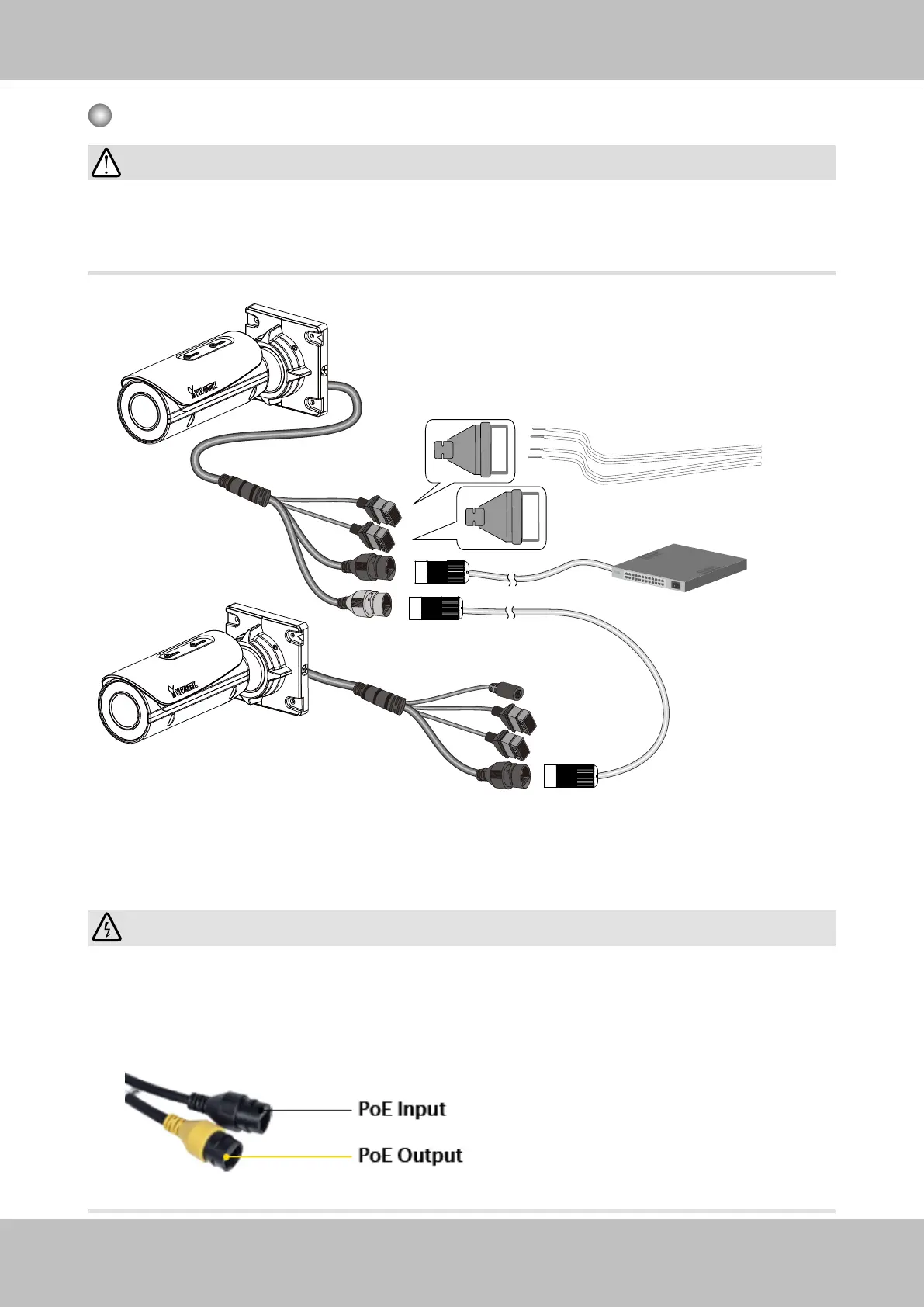

The second LAN port (PoE out, yellow) is available on the IB9381-HRT and IB9371-HRT.
The R models come without the DC connector.
WARNING:
The yellow LAN port (PoE output) can only be used to connect to another IB9381 or 9371
camera. Please do not connect the yellow LAN port to a PC or switch LAN port! The high
voltage can damage the LAN port circuits.
•
The "E" models, e.g., IB9381-EHT, IB9371-EHT, do not support PoE cascade
connections due to its higher power consumption. The "E" models come with
embedded heater for low temperature environments.
IMPORTANT:
Au+
Au-
MIC P
MIC N
DO+
DO-
DI+
DI-
icro
General I/O Terminal Block
Ethernet 10/100 RJ45 Plug
R models: IB9381-HRT and IB9371-HRT.
