VIVOTEK
10 - User's Manual

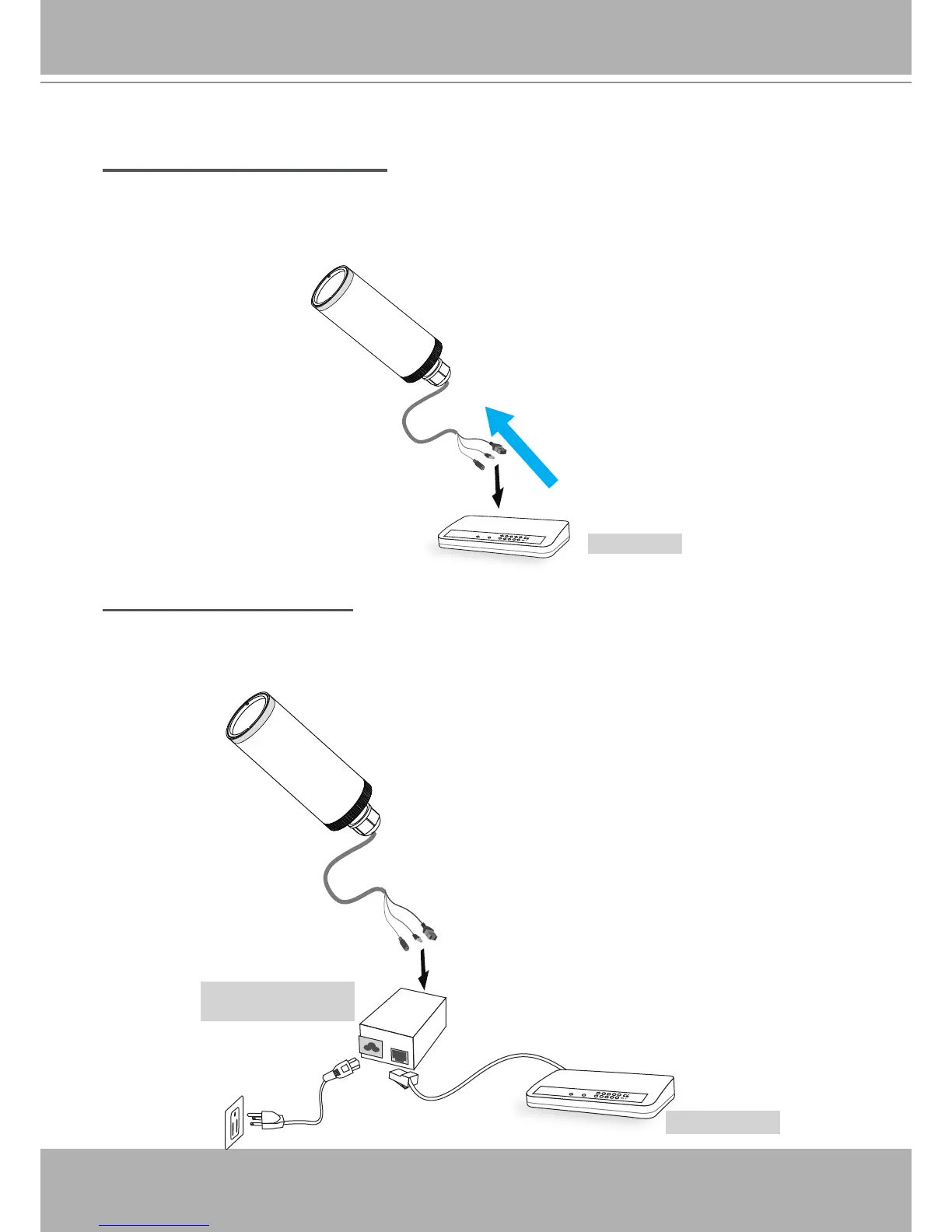

Set up the Network Camera through Power over Ethernet (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable� Follow the below illustration to connect the Network Camera to a PoE-enabled
switch via Ethernet cable�
When using a non-PoE switch
If your switch/router does not support PoE, use a PoE power injector (optional) to connect
between the Network Camera and a non-PoE switch�
PO WE R
COLLISI ON
LINK
REC EI VE
PARTI TIO N
1
2
3
4
5
PoE Switch
power + data transmission
PO WER
COLLISIO N
LINK
RECE IV E
PARTI TION
1
2
3
4
5
PoE Power Injector
(optional)
Non-PoE Switch
