Vizio D24h-G9 User Manual

iv

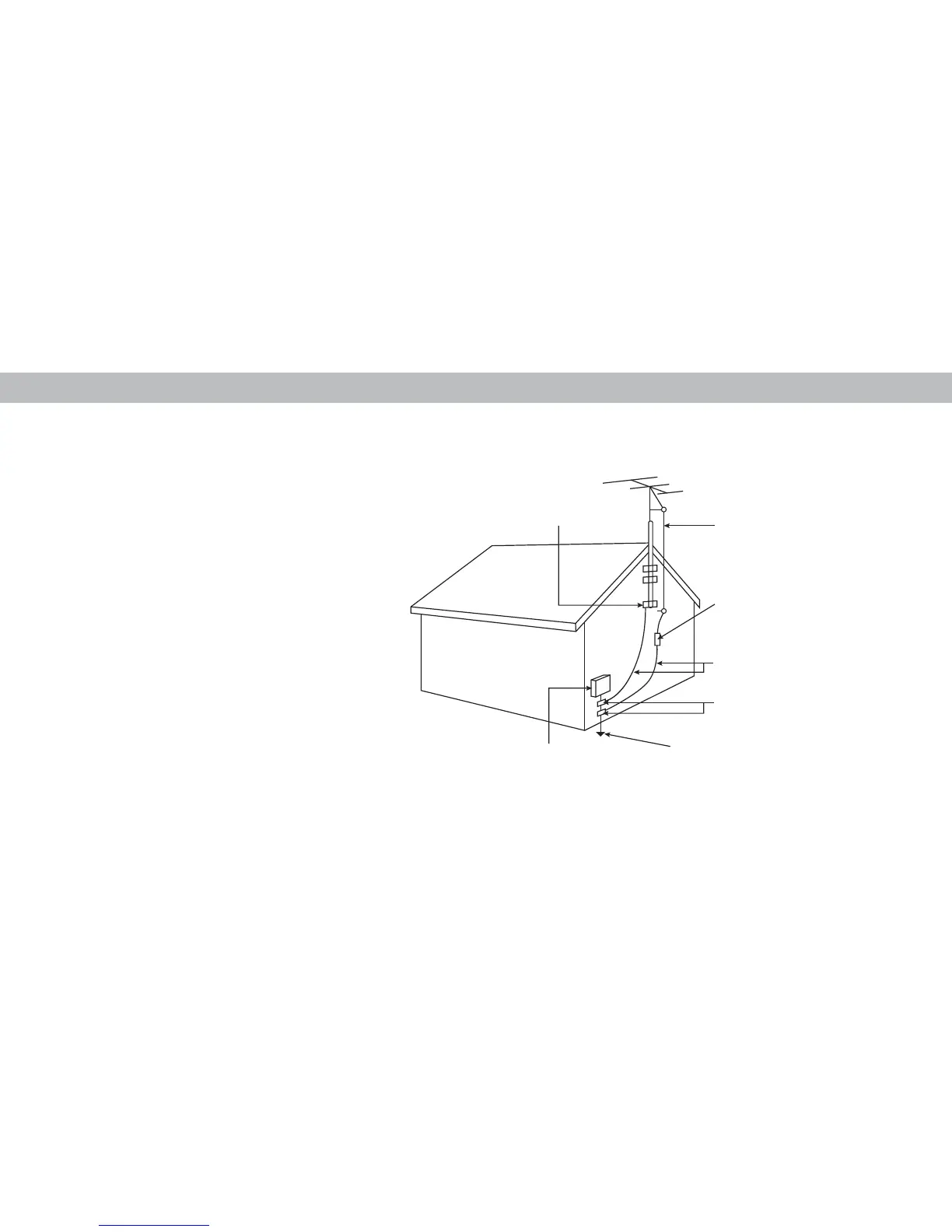

Ground Clamp
Antenna Lead In Wire
Antenna Discharge Unit
(NEC Section 810-20)
Grounding Conductors
(NEC Section 810-21)
Ground Clamps
Power Service Grounding Electrode System
(NEC ART 250, part H)
Electric Service Equipment
TELEVISION ANTENNA CONNECTION PROTECTION
If an outside antenna/satellite dish or cable system is to be connected
to the TV, make sure that the antenna or cable system is electrically
grounded to provide some protection against voltage surges and static
charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides
information with regard to proper grounding of the mast and supporting
structure, grounding of the lead-in wire to an antenna discharge unit,
size of the grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements of the grounding
electrode.
Lightning Protection
For added protection of the TV during a lightning storm or when it is left
unattended or unused for long periods of time, unplug the TV from the
wall outlet and disconnect the antenna or cable system.
Power Lines
Do not locate the antenna near overhead light or power circuits, or
where it could fall into such power lines or circuits. Remember, the
screen of the coaxial cable is intended to be connected to earth in the
building installation.

Vizio D24h-G9 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	24 \
Display brightness	- cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Native refresh rate	60 Hz
LED backlighting type	Direct-LED
Display number of colors	16.78 million colors
Display diagonal (metric)	59.69 cm
Motion interpolation technology	-
Package depth	415 mm
Package width	626.1 mm
Package height	112 mm
Package weight	4300 g
Certification	UL, cUL, FCC Class B, BETS-7/ ICES-003 Class B, IC, HDMI (CEC, ARC) Dolby Audio
AC input voltage	120 V
Power consumption (standby)	0.5 W
Power consumption (typical)	45 W
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cables included	AC
Remote control type	XRT136
Composite video in	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Product color	Black
Panel mounting interface	100 x 100 mm
Processor cores	6
Number of battery cells	2 x AAA
RMS rated power	- W

Weight and Dimensions

Depth (with stand)	157 mm
Width (with stand)	554.5 mm
Height (with stand)	375.4 mm
Weight (with stand)	3180 g
Depth (without stand)	52.3 mm
Height (without stand)	334 mm
Weight (without stand)	3130 g
