Installing the TV on a Wall
To mount your TV on a wall, you will need a wall mount. Consult
the information below to find the appropriate mount for your TV
model:
Installing a TV on a wall requires lifting. To prevent
injury or damage to the TV, ask someone to help you.
E322AR E422AR
Screw Size: M6 M6
Screw Length: 12mm 12mm
Screw Pitch: 1.0mm 1.0mm
Hole Pattern:
200mm (V) x
200mm (H)
300mm (V) x
300mm (H)
Be sure the mount you choose is capable of supporting the
weight of the TV. After you have determined that you have the
correct mount for your TV, you can begin the installation.
To install your TV on a wall:
1. Disconnect any cables connected to your TV.
2. Place the TV face-down on a clean, flat, stable surface.
Be sure the surface is clear of debris that can scratch or
damage the TV.
3. Remove the base by loosening and removing the screws.
4. Attach your TV and wall mount to the wall, carefully following
the instructions that came with your mount.
Use only with a UL-listed wall mount bracket rated for the
weight/load of this TV. See
Appendix B - Specifications
for the
weight of this TV.

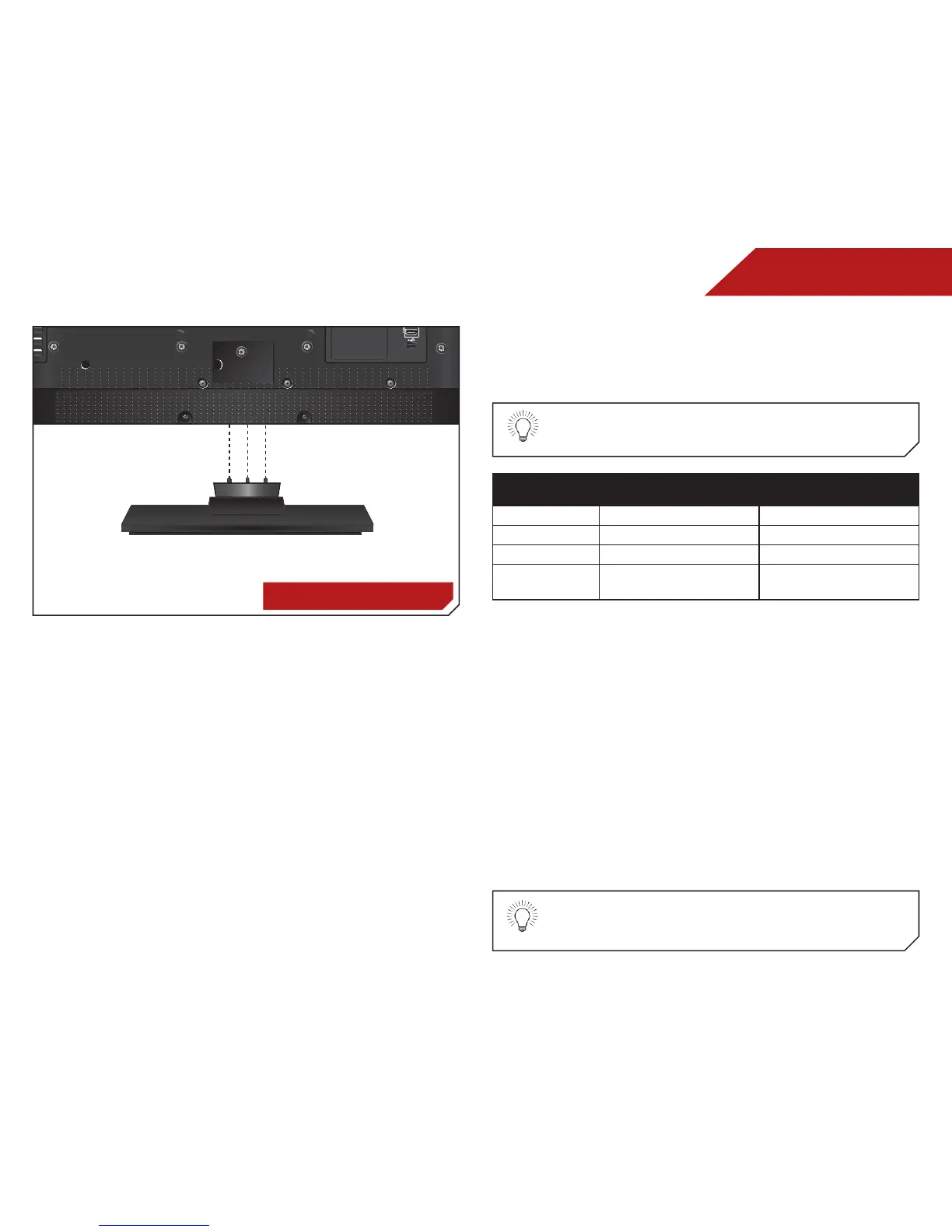

To install the TV stand:
1. Place the TV screen-down on a clean, flat surface. To prevent
scratches or damage to the screen, place the TV on a soft
surface, such as carpet, rug, or blanket.
2. Align the stand with the TV.
3. Attach the base to the TV by tightening the three (3)
pre-installed 14mm screws.
4. Move the TV with attached stand into an upright position
and place on a flat, level, and stable surface.
5. To ensure proper ventilation, leave at least 1” of space
between the back of the TV and any other objects (walls,
etc).
For some wall mounts, you may want to use cables
with right-angle connectors. This allows the TV to rest
closer to the wall.
Installing the Base
