Vizio E390-A1 User Manual

3
12

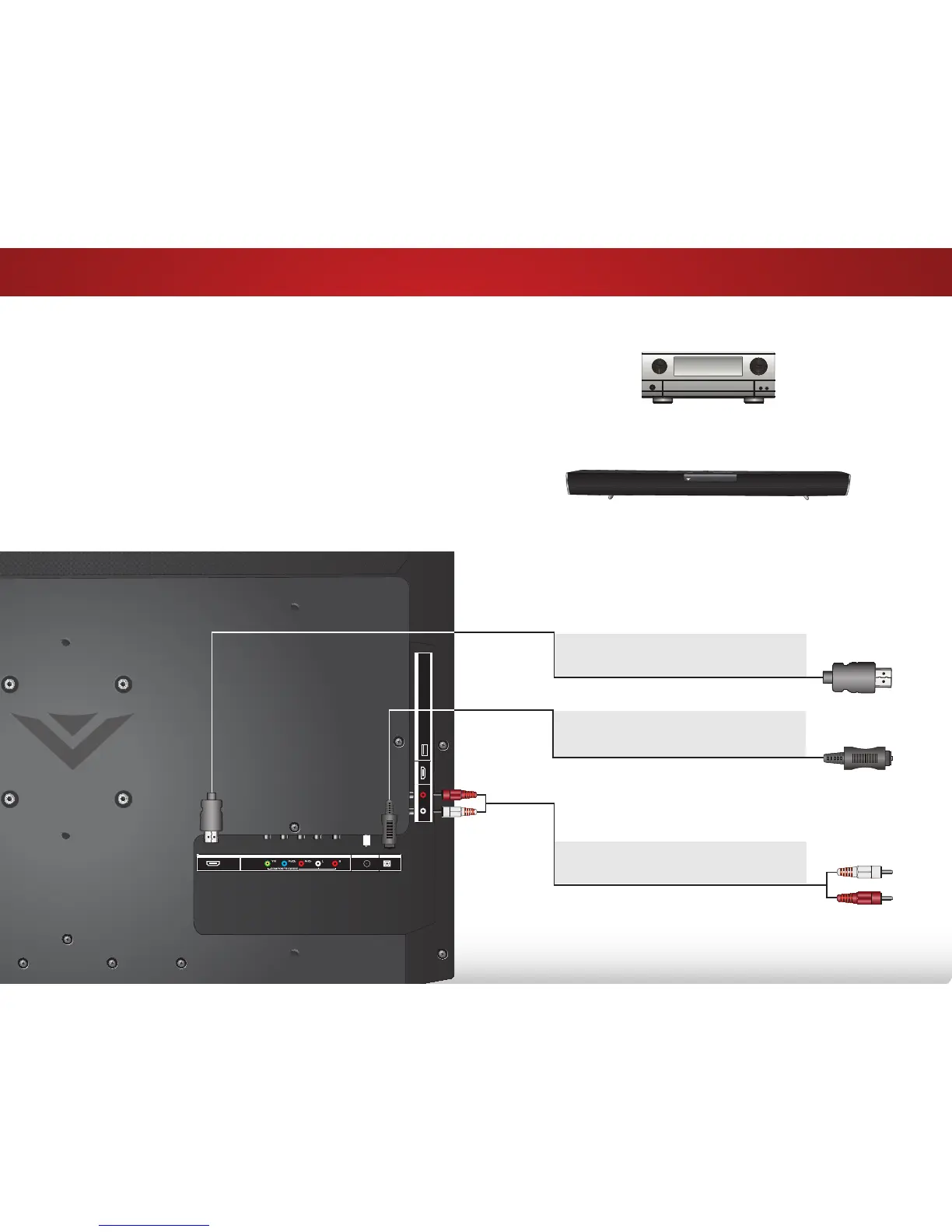

ConneCting An AuDio DeviCe
Home Audio Receiver
VIZIO Sound Bar
Your TV can output sound to an audio device, such as a receiver
or sound bar.
1. Verify that your device has a video port that matches an
available port on the TV (HDMI, RCA, etc).
2. Turn the TV and your audio device off.
3. Connect the appropriate cable (not included) to the TV and
the device.
4. Turn the TV and your device on.
A UD I O O UT
H DM I
U S B
2
L
R
OP T I C AL
1 (A R C )
H DM I
C OM P O N E N T (B E T T E R )
D TV / TV
C AB L E /A N T EN N A
GOOD
RCA CABLE
• ANALOG STEREO CONNECTION
• 2.0 CHANNEL
BETTER
OPTICAL/SPDIF CABLE
• PCM STREAM
• DOLBY DIGITAL 5.1 CHANNEL
• DTS 5.1 CHANNEL
BEST
HDMI CABLE
• CFC 2-WAY COMMUNICATION
• 2.0-5.1 DIGITAL AUDIO
• PCM, DTS, DOLY DIGITAL

Vizio E390-A1 Specifications

General

Response time	8.5 ms
Display diagonal	39 \
LED backlighting type	-
Supported video modes	1080p
Contrast ratio (dynamic)	200000:1
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
RMS rated power	5 W
Number of speakers	2
DVI port	No
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Product color	Black
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	32.5 W
Sustainability certificates	ENERGY STAR
Package depth	156.97 mm
Package width	1011 mm
Package height	612.9 mm
Package weight	11930 g

Weight and Dimensions

Depth (with stand)	202.95 mm
Height (with stand)	575.06 mm
Weight (with stand)	10000 g
Depth (without stand)	7493 mm
Width (without stand)	886.97 mm
Height (without stand)	527.81 mm
Weight (without stand)	8600 g
