Vizio E601i-A3E - HDMI ARC Audio Connection

3
15

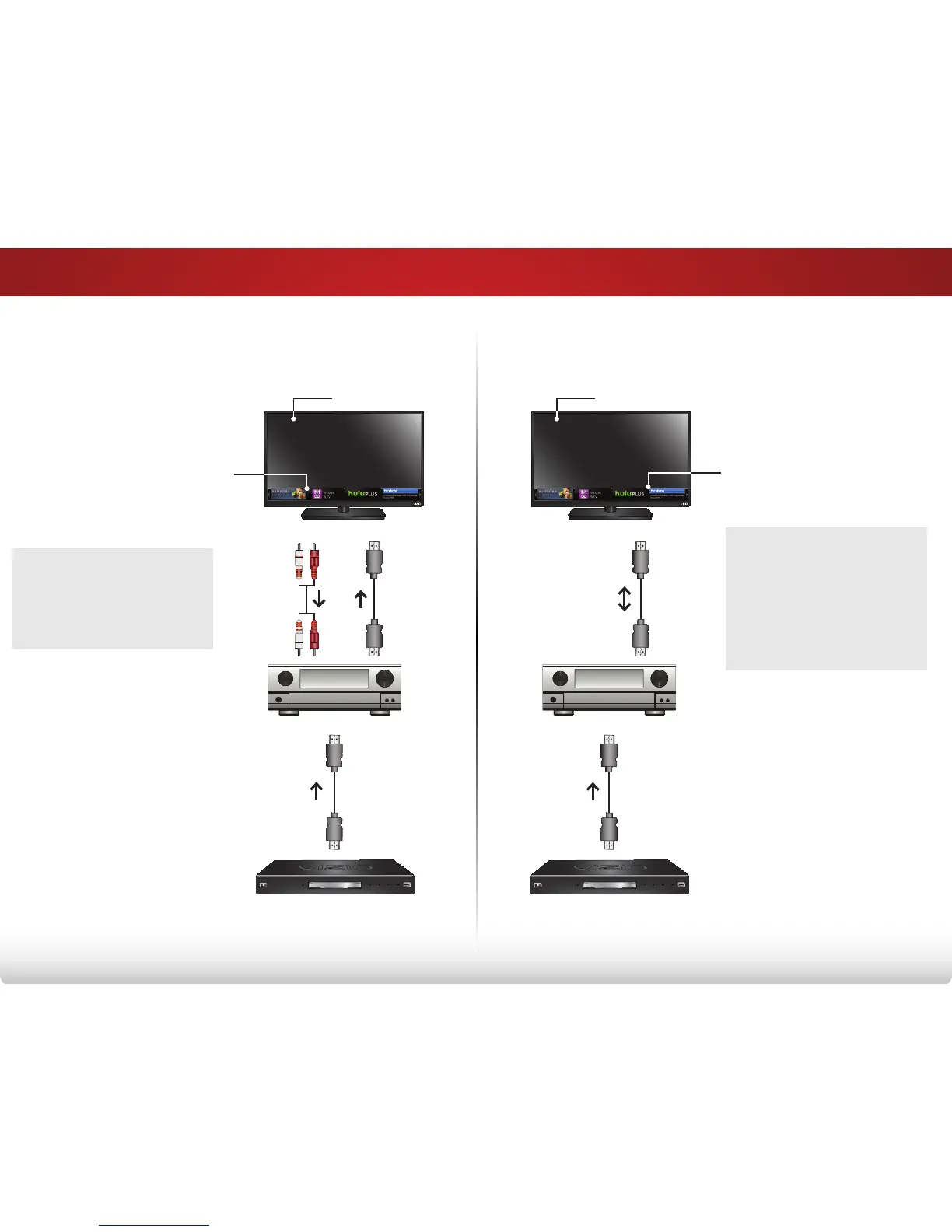

Without HDMI ARC With HDMI ARC
CONNECTING AN AUDIO DEVICE - ARC
HDMI
HDMI
Your Home Audio Receiver
Your Blu-Ray Player
RCA (Audio)
Your TV
HDMI
HDMI
Your Home Audio Receiver
Your Blu-Ray Player
Your TV
With an HDMI ARC setup, the
audio connection between
your TV and Home Audio
Receiver can be removed.
The HDMI cable will transmit
audio signal to and from
your TV with an all-digital
audio/video connection.
Without an HDMI ARC setup,
your TV will transmit audio
signal from the built-in tuner
and VIA apps to your home
audio receiver through a
seperate audio connection.
Built-in Tuner
Built-in Tuner
VIZIO Internet Apps
VIZIO Internet Apps
