Vizio V605-G3 User Manual

10
1
Connecting a device — AUDIO & VIDEO CABLE TYPES
Your TV can be used to display output from most devices.
1. Verify that your device has a video port that matches an available port on the TV (HDMI, Composite, etc.).
2. Connect the appropriate cable (not included) to the TV and the device.
3. Turn the TV and your device on.
4. Set the TV’s input to match the connection you used (HDMI-1, HDMI-2, etc.).
Connecting a device — AUDIO CABLE TYPES
Your TV can be output sound to an audio device, such as a receiver or sound bar.
1. Verify that your device has an audio port that matches an available port on the TV (optical, RCA, etc).
2. Connect the appropriate cable (not included) to the TV and the device.
3. Turn the TV and your device on.
Note: The actual ports and their locations may vary, depending on the TV model.

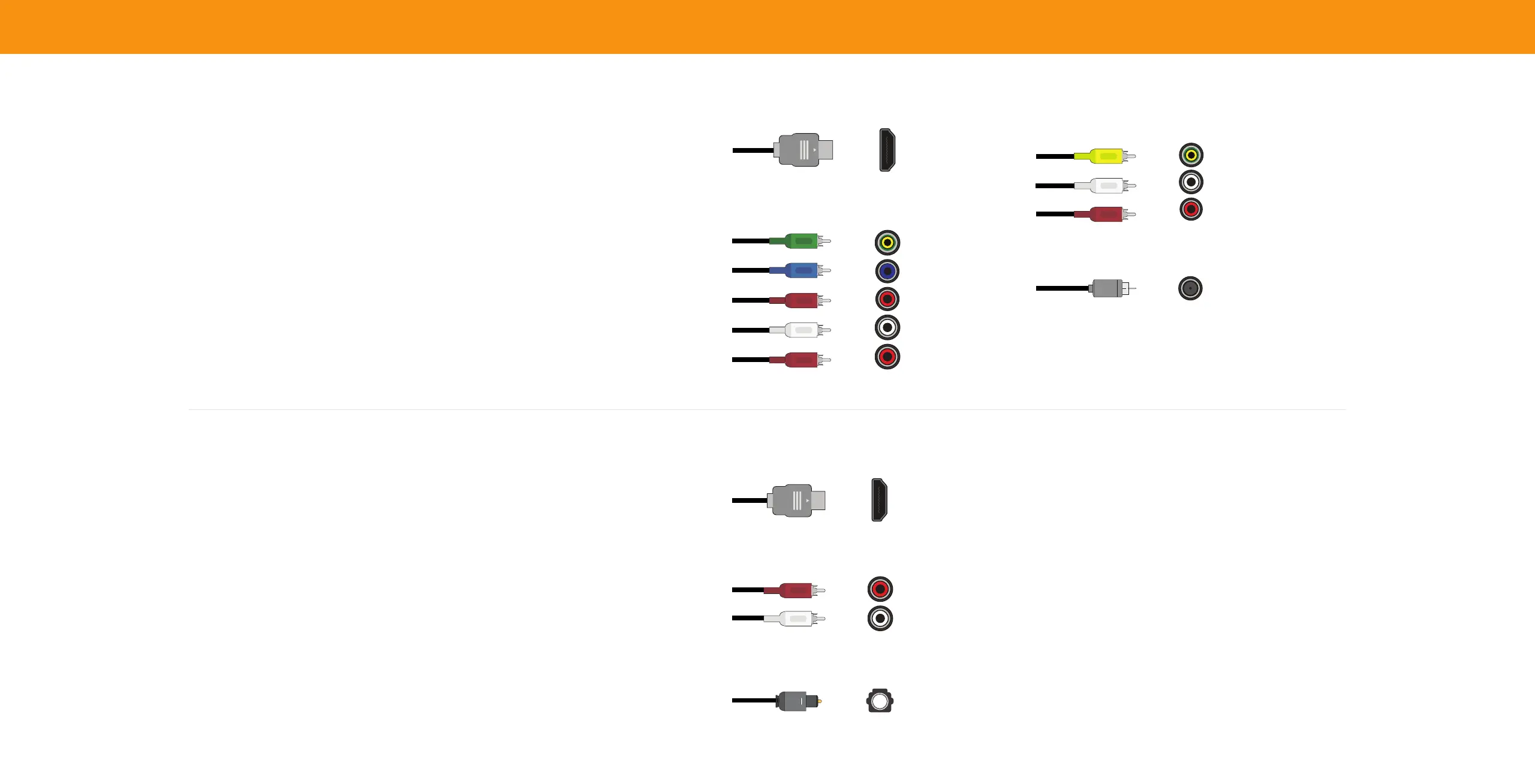

OPTICAL/SPDIF CABLE
HDMI
R
L
Optical
COMPONENT AND/OR COMPOSITE CABLE
HDMI CABLE
HDMI
HDMI CABLE
R
L
Y
Pr/Cr
Pb/Cb
COMPONENT CABLE—ONLY ON V705-G3
Y
L
R
COMPOSITE (AV) CABLE
(Shared with Component input)
Coaxial
COAXIAL CABLE

Vizio V605-G3 Specifications

General

Screen Type	led
Wall Mount	400mm x 200mm
Features	dolby vision hdr, full array led, smartcast, apple airplay, chromecast built-in, works with siri, google assistant, alexa
Tuner	digital
Screen Size	59.5 inches, 60 inches
Resolution	4k (2160p)
HDR	yes
HDR Format	dolby vision, hdr 10, hybrid log-gamma (hlg)
Surround Sound	dolby digital
HDMI ARC Ports	yes
USB Ports	1
Ethernet	yes
RF Antenna	yes
Network	built-in wi-fi, ethernet
Digital Optical Audio Outputs	1
Analog Audio Outputs	1
Component Video Inputs	0
Composite Video Inputs	1
DVI	0
Smart Applications	amazon alexa, apple homekit, google assistant, siri
Remote Control	standard
3D	no
Power Consumption	247 kilowatt hours
Depth with Stand	10.5 inches
Height with Stand	33.5 inches
Width with Stand	53.5 inches
Net Weight with Stand	38.5 pounds
Depth without Stand	2.9 inches
Height without Stand	31 inches
Net Weight without Stand	37.5 pounds
