Quick Operation Guide
ENGLISH
4. USAGE INSTRUCTIONS.
4.1 - Place the lift on a firm, flat surface in the
area it is to be used supported its transport
wheels (T).
4.2 - Remove the outriggers from their transport
supports (S) and fully insert them into their
positions (V) checking that they are fixed by
the pins (R).
4.3 - Adjust the outrigger stabilisers (Q) by
turning the cranks to level the lift. Ensure it is
in a vertical position by using the bubble level
indicator (F) found on the base section. The
bubble should be in the centre of the circle.
4.4 - Place the forklifts in a horizontal position
and secure them with the pins.
VMB recommends the SU-070 Elevation Kit
and the BS-070 Elevation Kit which have both
been especially designed for loading and
elevating with the TL-070.
4.5 - THE MAXIMUM LOAD IS 250KG. The
lift should NEVER be overloaded (over 250KG).
Safety at work is the most important element.
Place the load onto the lift using an adequate
support according to the need, use so that the
weight of the load will only elevate in a vertical
direction. The minimum load is 50KG
4.6 - How to place the load

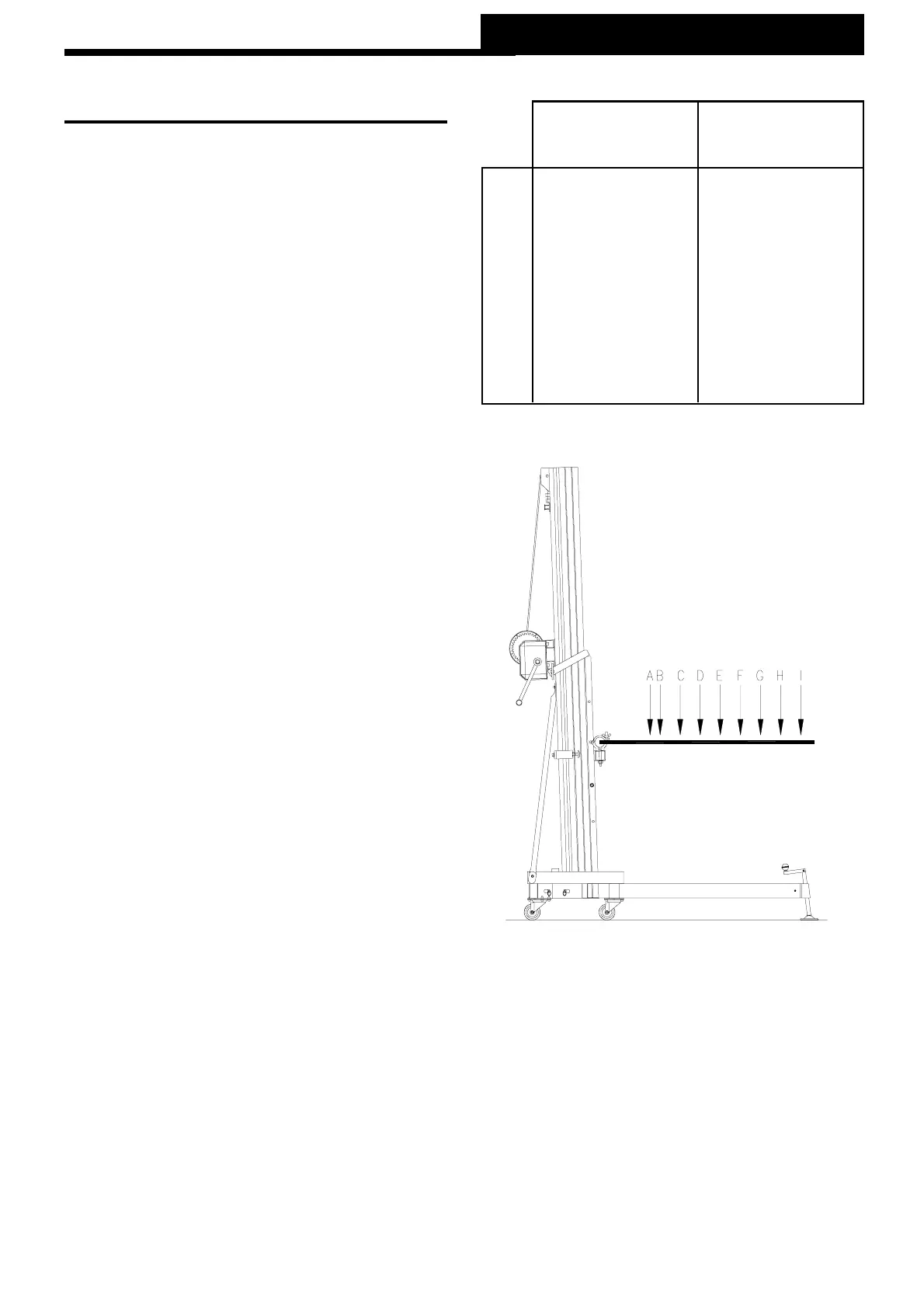

Always load as close to the tower as possi-
ble. The maximum load diminishes according
to the distance from the body of the tower as
illustrated in the diagram below.
The maximum load is 250 kg when the load’s
centre is at 25 cm from the lifting carriage of
the towerlift.
VMB recommend the use of the VMB special
support kits SU-070 and BS-070. The SU-070
Kit is prepared for frontal loading of triangular
or rectangular trusses of all the dimensions from
25 cm to 52 cm. The BS-070 Kit can be used
for frontal or lateral loading.
A 10 ‘‘ - 25 cm 550 lb - 250 kg
B 12 ‘‘ - 30 cm 457 lb - 208 kg
C 16 ‘‘ - 40 cm 343 lb - 156 kg
D 20 ‘‘ - 50 cm 275 lb - 125 kg
E 24 ‘‘ - 60 cm 229 lb - 104 kg
F 28 ‘‘ - 70 cm 196 lb - 89 kg
G 32 ‘‘ - 80 cm 171 lb - 78 kg
H 36 ‘‘ - 90 cm 152 lb - 69 kg
I 40 ‘‘ -100 cm 136 lb - 62 kg
Load centre’s
DISTANCE
to the lifting carriage
Maximum lifting
LOAD
How to load a bridge
To lift a bridge you can use the VMB kits SU-
070 and BS-070. To load bridges of both tri-
angular and rectangular trusses measuring be-
tween 25 and 52 cm, the SU-070 Kit can be
used for frontal mountings. BS-070 can be used
for frontal or lateral loading. NEVER use the
half couplers alicraft to lift a bridge.
