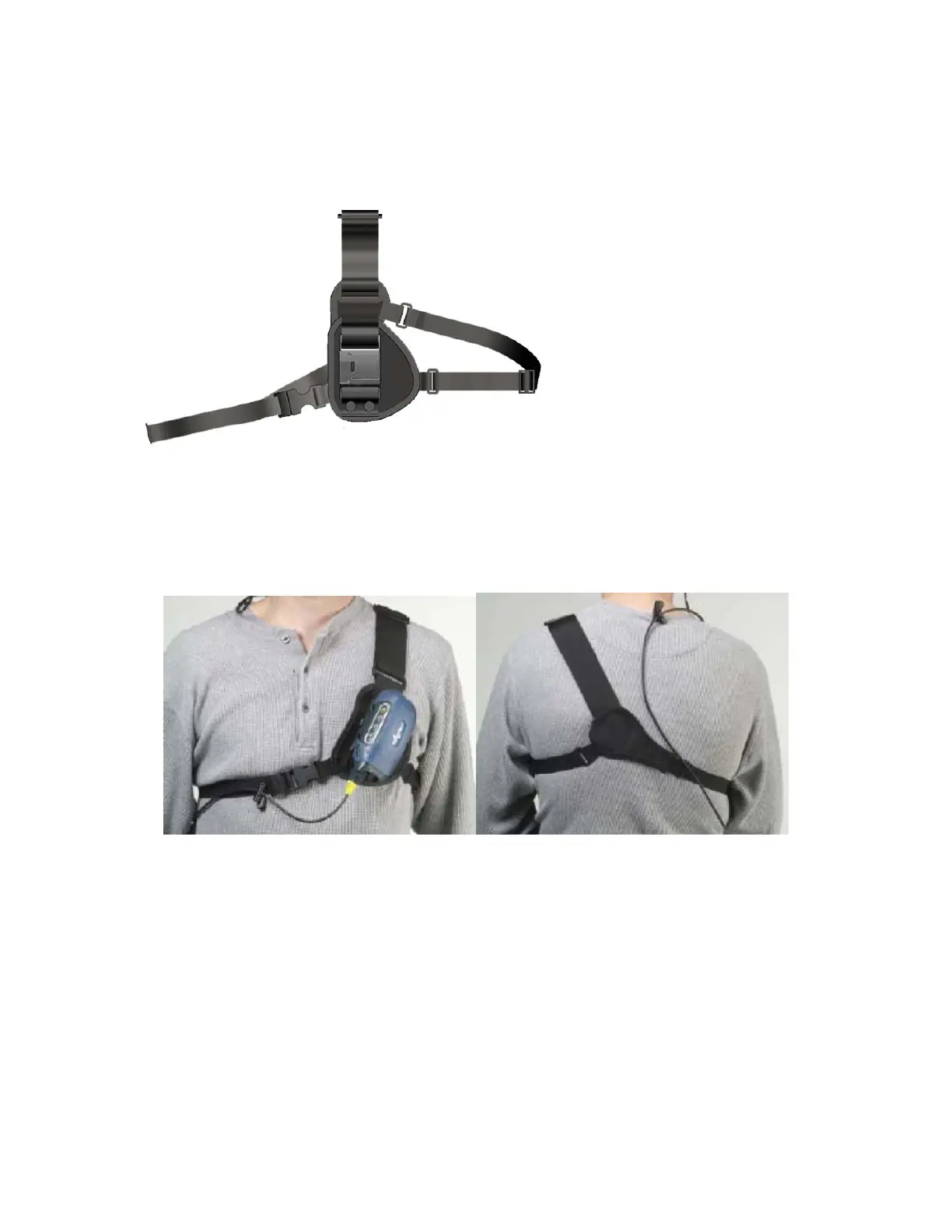

T5 Shoulder Harness
To put the clip and terminal on the shoulder harness:
Open the flap on the front of the shoulder harness by unsnapping the two buttons.
Slide the flap through the slots on the belt clip.
With the clip all the way on the flap, snap the buttons together.
To put on the shoulder harness:
1. Unbuckle the large loop.
2. Put your left hand through the small loop and slide the harness over your left shoulder.
3. Clip the large loop in front of your chest.
4. Adjust the straps.
5. Connect the terminal to the shoulder harness clip by sliding the terminal onto the clip until
it snaps into place.
Note: The terminal is properly clipped in place if you cannot remove it from the
clip without pressing the terminal's clip release button.
