6
ASSEMBLY
1
2
3

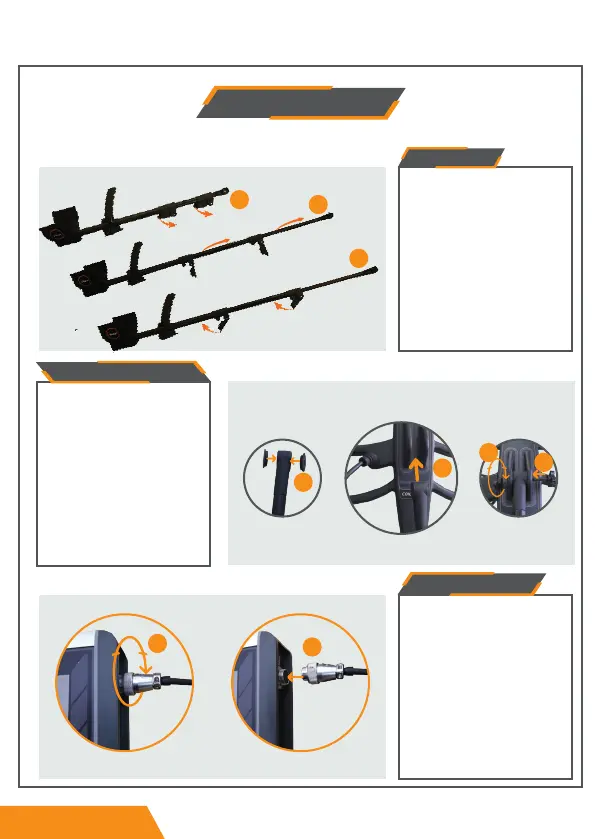

1- We open the handle locks to
calibrate the length of the
handle.
2- Lengthening or shortening
both arms of the carrying
handle in proportion to the
user.
3- When determining the
appropriate length for each of
the forearms, we close the
locks to give them movement.
4- Putting rubber protection to
prevent friction between the
handle and the search disk.
5- Place the contact head of the
handle in the place designated for
it in the search coil.
6- Inserting the fixing shaft into
the channel designated for fixing
the handle to the search coil.
7- Turn the locking nut clockwise.
8- Align the coil plug and insert it
into the socket on the side of the
main unit.
9- Slightly tighten the retaining
ring clockwise to secure the cable.
4
9
8
5
7
6
Page 8
HANDEL SETUP
CONNECT THE HANDEL WITH SEARCHING COIL
CONNECT THE JACK WITH THE DEVICE
