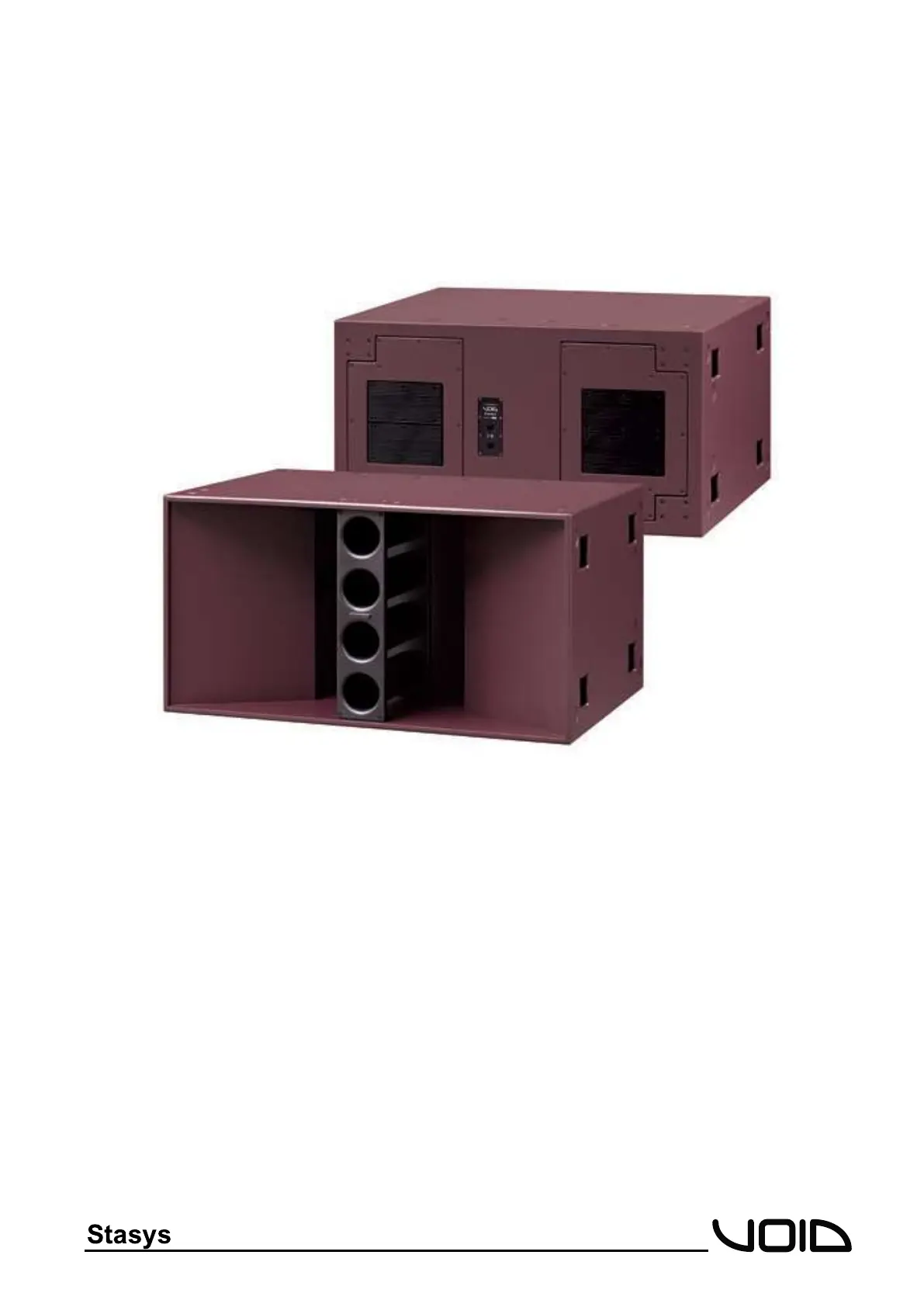

The document provides an owner's manual for the Stasys X loudspeaker, manufactured by Void Acoustics and distributed by Fusion Event Services.

Function Description

The Stasys X is a high-performance, professional-grade loudspeaker designed for sound reinforcement applications. It is a subwoofer enclosure, indicated by its frequency response and driver configuration, optimized for delivering powerful low-frequency output. The system is designed for reliability and durability, suitable for demanding environments.

Important Technical Specifications

Frequency Response: The Stasys X has a frequency response of 33 Hz to 200 Hz at -3dB points, indicating its capability to reproduce deep bass frequencies.

Sensitivity: The low-frequency (LF) sensitivity is 105 dB at 1 watt/1 meter, signifying high efficiency in converting power into sound pressure.

Impedance: The nominal impedance of the enclosure is 4 ohms. This is achieved by connecting two 8-ohm woofers in parallel.

Power Handling: The Stasys X can handle 2800 watts RMS, demonstrating its robust power capacity.

Maximum Output: It can achieve a continuous maximum output of 138 dB and a peak output of 142 dB, indicating its ability to produce very high sound pressure levels.

Dispersion: The dispersion pattern is "Array Dependent," suggesting it is designed to be used in arrays for controlled sound coverage.

Crossover Point: The manual specifies crossover points for both high-pass and low-pass filters:

Hi Pass: 30 Hz with a 24 dB/octave Butterworth (But) filter.
Lo Pass: 110 - 138 Hz with a 24 - 48 dB/octave Butterworth (But)/Linkwitz-Riley (LR) filter.

Driver Configuration: The enclosure houses two 18-inch drivers, each with a 125 mm voice coil, utilizing neodymium (neo) magnets.

Construction: The cabinet is constructed from 18 mm, 15-laminate birch plywood, ensuring superior strength and durability. The finish is textured polyurethane.

Grill: The Stasys X features a perforated steel grill with foam filters, designed to be kick-proof and protect internal components from heavy abuse.

Connectors: It uses 2 x 4-pole speakON™ connectors. These connectors are wired in parallel, allowing one to be used as an input and the other as a link output to connect additional enclosures.

Dimensions:

Width: 1220 mm
Height: 636 mm
Depth: 820 mm

Weight:

Net weight: 94 Kg
Shipping weight: 105 Kg

Usage Features

Reliability and Output: The Stasys X incorporates close tolerance and durable woofers, which contribute to increased reliability and greater output.

Heat Transference Technology (HTT): This technology is integrated to maintain low power compression, ensuring consistent performance even during extended use.

Cabinet Strength: The accurately machined 15-laminate birch plywood cabinets provide superior structural strength, enhancing the longevity and integrity of the enclosure.

Mobility: The enclosure includes four rear wheel mounting points for 100 mm wheels, facilitating easier transport and setup.

Input/Output Flexibility: The parallel-wired speakON connectors offer flexibility for system wiring, allowing for easy linking of multiple Stasys X units. A positive signal to the + pin results in a forward cone movement, ensuring correct phase alignment.

Maintenance Features

Component Protection: Tough, kick-proof grills with foam filters are designed to protect the internal components from physical damage, reducing the need for frequent repairs.

Warranty: The Stasys X comes with a three-year warranty and guarantee, providing assurance of product quality and manufacturer support.

Precautions for Use:

Environmental Conditions: The Stasys X enclosure should be installed in a dry environment and not exposed to rain or moisture to prevent damage.
Magnetic Interference: Due to the very powerful magnets within the enclosure, it should not be located near sensitive electronic equipment such as VDU monitors, TVs, or high-gain preamplifiers, as this could cause interference or damage to these devices.
