3. Function
3.1 Design

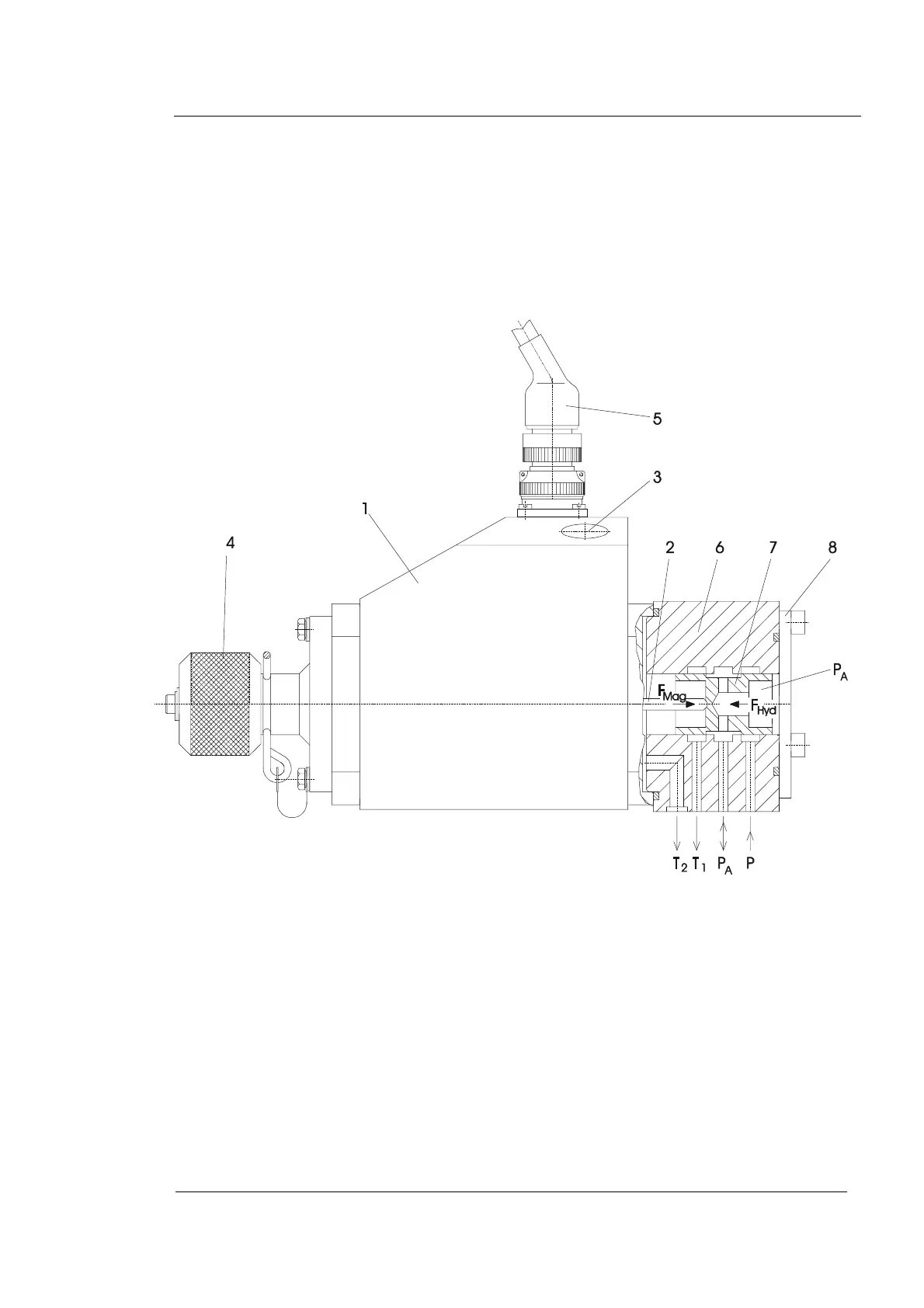

I/H converter DSG-BXX112
(In case of DSG-BXX102 the manual operation knob
item 4 is replaced by a cover, see chapter 10)
Bild: 3.1.1
1 – Control magnet VRM P - Input pressure P
in
2 – Tappet for power transmission P
A
- Output signal pressure
3 - Potentiometers X0 and X1
4 – Manual operation knob T
1
- Tank return line
5 – Electric connection T
2
- Tank return line for int. leakage
6 – Control housing F
Mag
- Magnetic force
7 – Control piston F
Hyd
- Hydraulic force
8 - Cover
