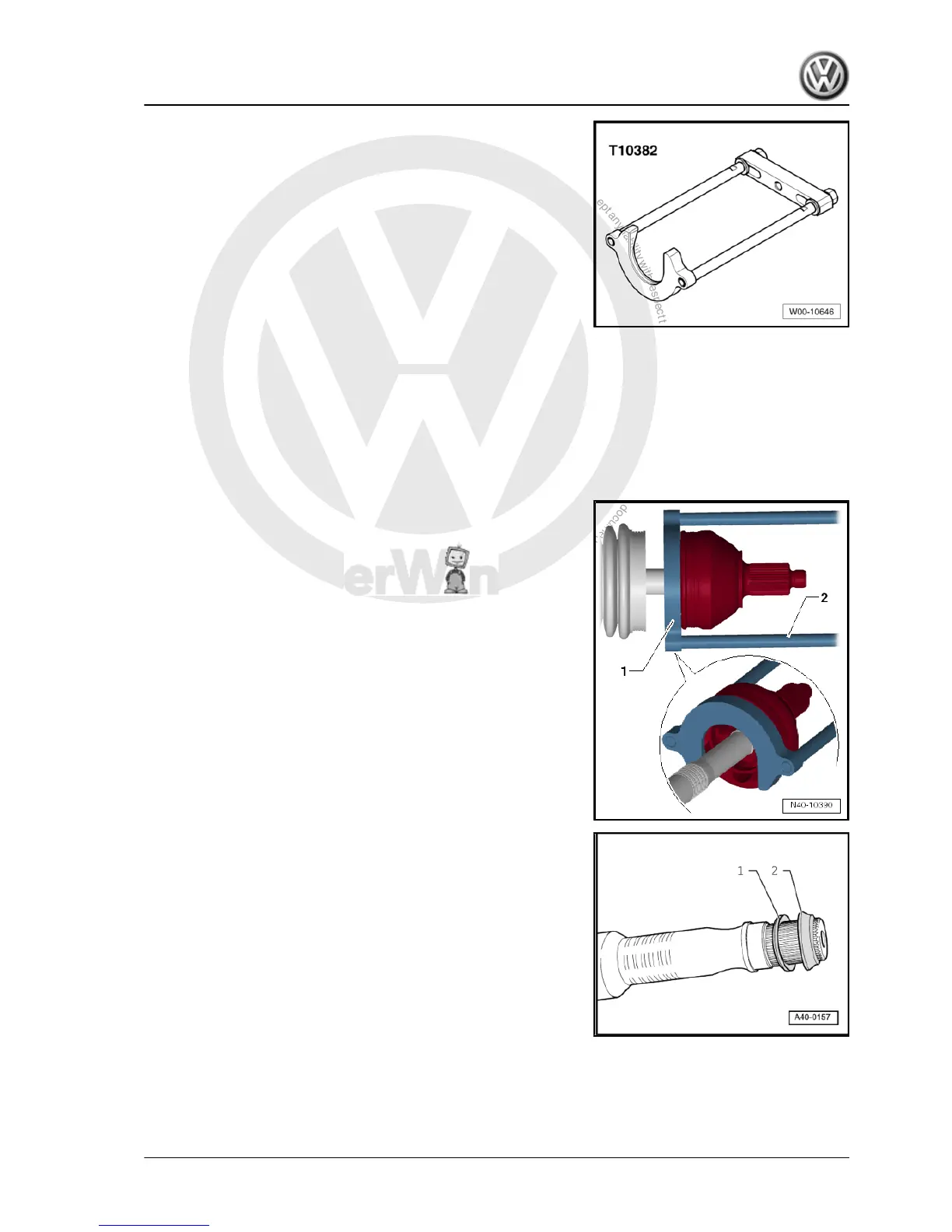

♦ Puller -T10382-
Removing outer constant velocity joint
– Clamp drive shaft in vice using protective jaw covers.
– Fold back boot.
– Set puller -T10382- up so that smooth side of puller plate -
T10382/1- points to spindles -T10382/2- .
– Assemble puller -T10382- complete with multi-purpose tool -
VW 771- .
– Pull constant velocity joint from drive shaft with puller -T10382-
and multi-purpose tool -VW 771- .
1 - Puller plate -T10382/1-
2 - Spindles -T10382/2-
Driving on outer constant velocity joint
Installation position of dished spring and thrust washer on outer
joint
1 - Dished spring
2 - Thrust washer
– Install new retaining ring.
– If necessary, push new joint boot onto drive shaft.
– Knock onto shaft with plastic hammer until circlip engages.
Dismantling
– Unfasten both hose clips on inner joint and push back boot.
– Pull joint body off drive shaft.
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
12. Assembly overview - drive shaft with triple roller joint AAR3300i 131
