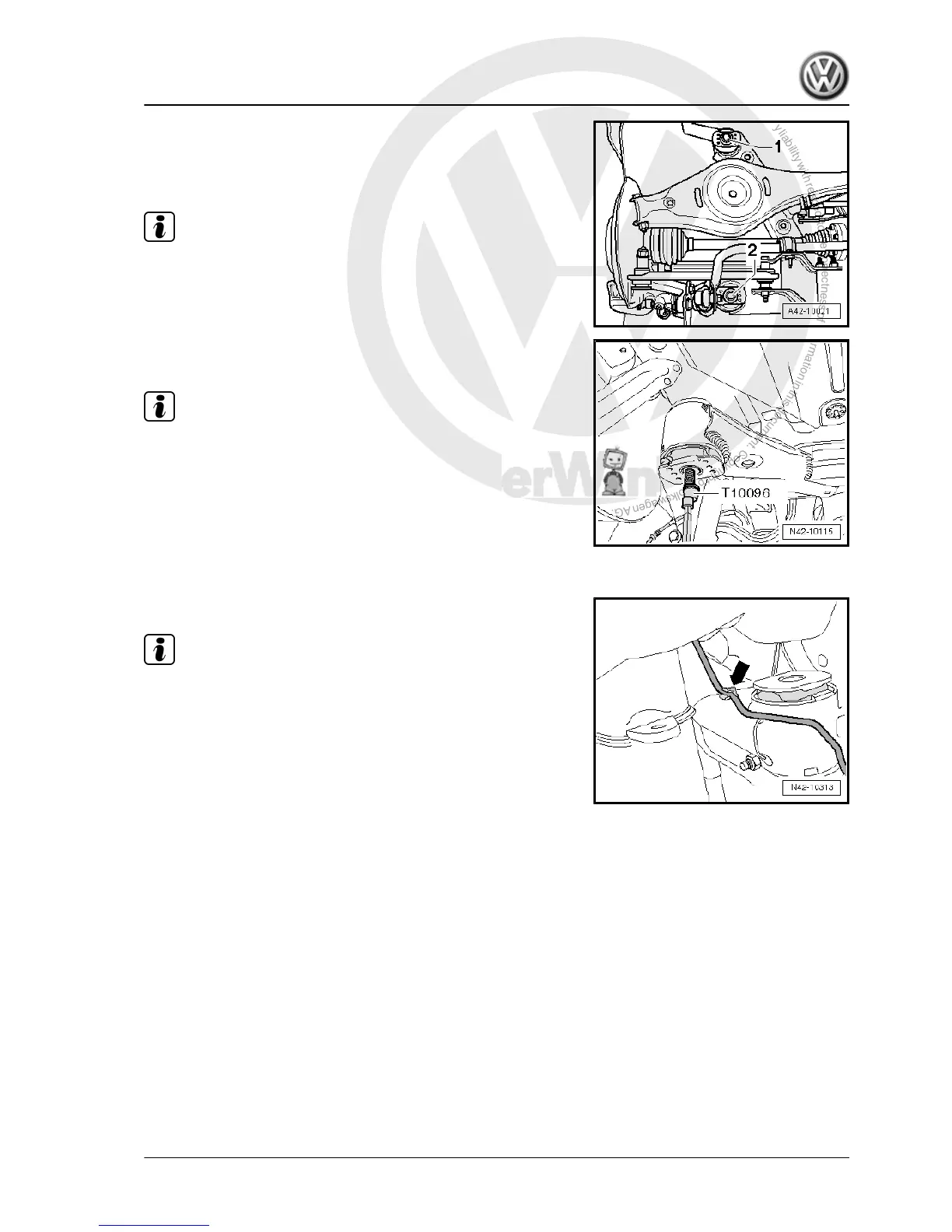

To secure the subframe in place, ensure that at positions -1- and
-2- the locating pins -T10096- are screwed in one after the other
on both sides of vehicle.
– Unscrew one hexagon bolt -1- or -2- on both sides.
Note
Only the left vehicle side is shown to improve clarity.
– Secure position of subframe using 2 locking devices -T10096-
and tighten to 20 Nm.
Note
The locating devices -T10096- must only be tightened to a max‐
imum of 20 Nm; otherwise the threads of the locating pins may
be damaged.
– Replace the subframe securing bolts on both sides one after
the other with locating pins -T10096- and tighten to 20 Nm.
The position of the subframe is now fixed.
– Carefully lower subframe with attachments about 2 cm.
– Unclip brake lines on both sides -arrow-.
Note
The clips will be destroyed and must be renewed.
Golf 2004 ➤ , Golf Plus 2005 ➤
Running gear, axles, steering - Edition 08.2009
10. Assembly overview - subframe made from steel, final drive (four-wheel drive) 203
