5.2 Exhaust emissions test for petrol en‐
gines with engine code CFPA
Note
♦
The following description refers to vehicles fitted with „On‐
board diagnosis“ (OBD) and regulated catalytic converter.
♦
The OBD monitors all components and part systems influenc‐
ing the exhaust emissions quality.
Special tools and workshop equipment required

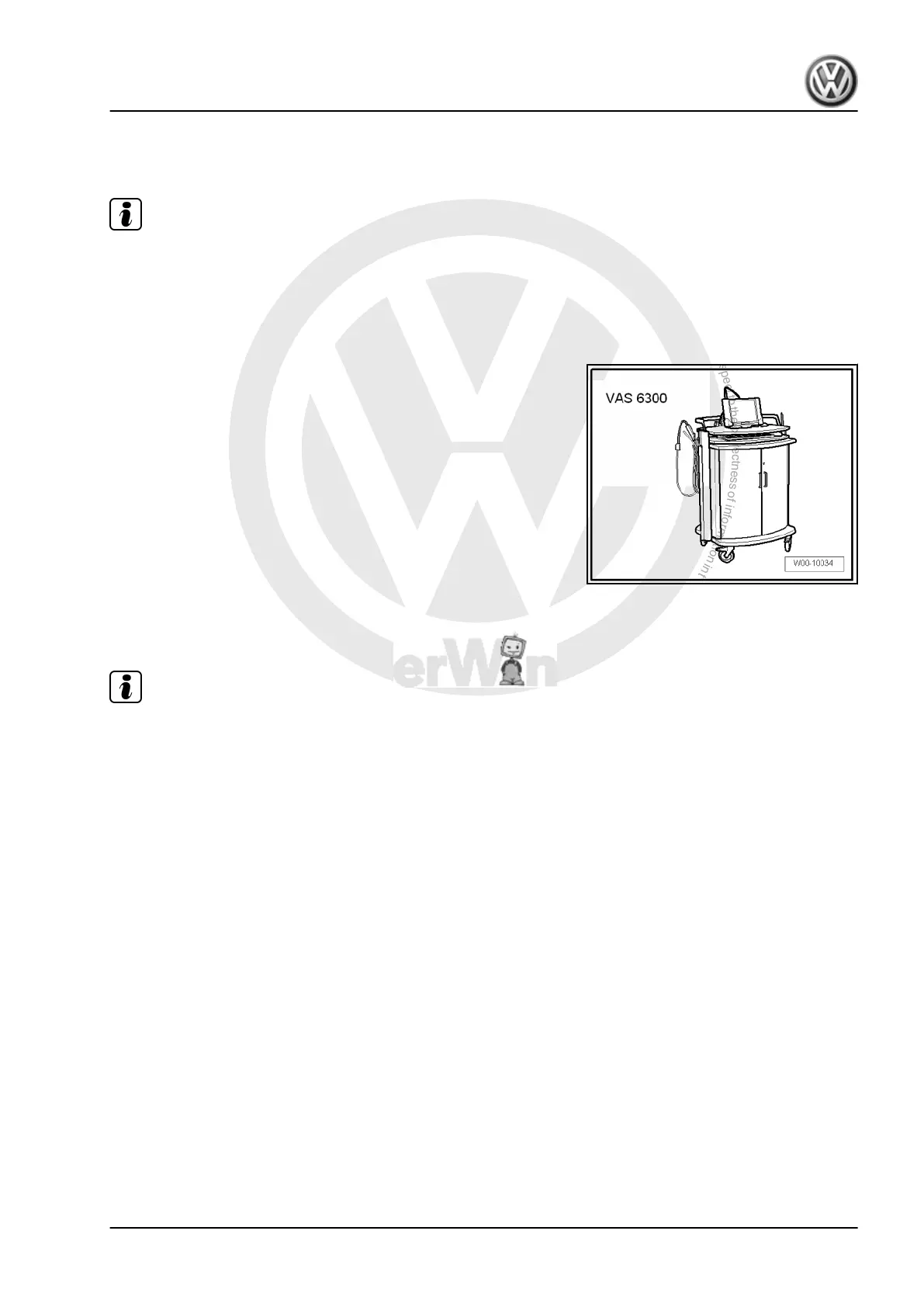

♦ Emissions testing station -VAS 6300-
♦ OBD adapter cable -VAS 5052/16-
♦ Data sheets for exhaust emissions test
Note
♦
It is only possible to carry out an exhaust emissions test when
all units of the emissions testing station -VAS 6300- are con‐
nected properly and combined with each other according to
the ⇒ operating instructions .
♦
All work to be performed is displayed by the emissions testing
station -VAS 6300- .
Test prerequisites
• All test conditions and data required for exhaust emissions test
⇒ Data sheets for exhaust emissions test for respective engine
• For bar code reading the EET data sheet must be printed out.
• Manual gearbox: Gear lever in neutral
• Handbrake pulled on
– Perform exhaust emission test according to instructions on
display.
Amarok 2011 ➤
Maintenance - Edition 01.2011
5. Exhaust emissions test 135
