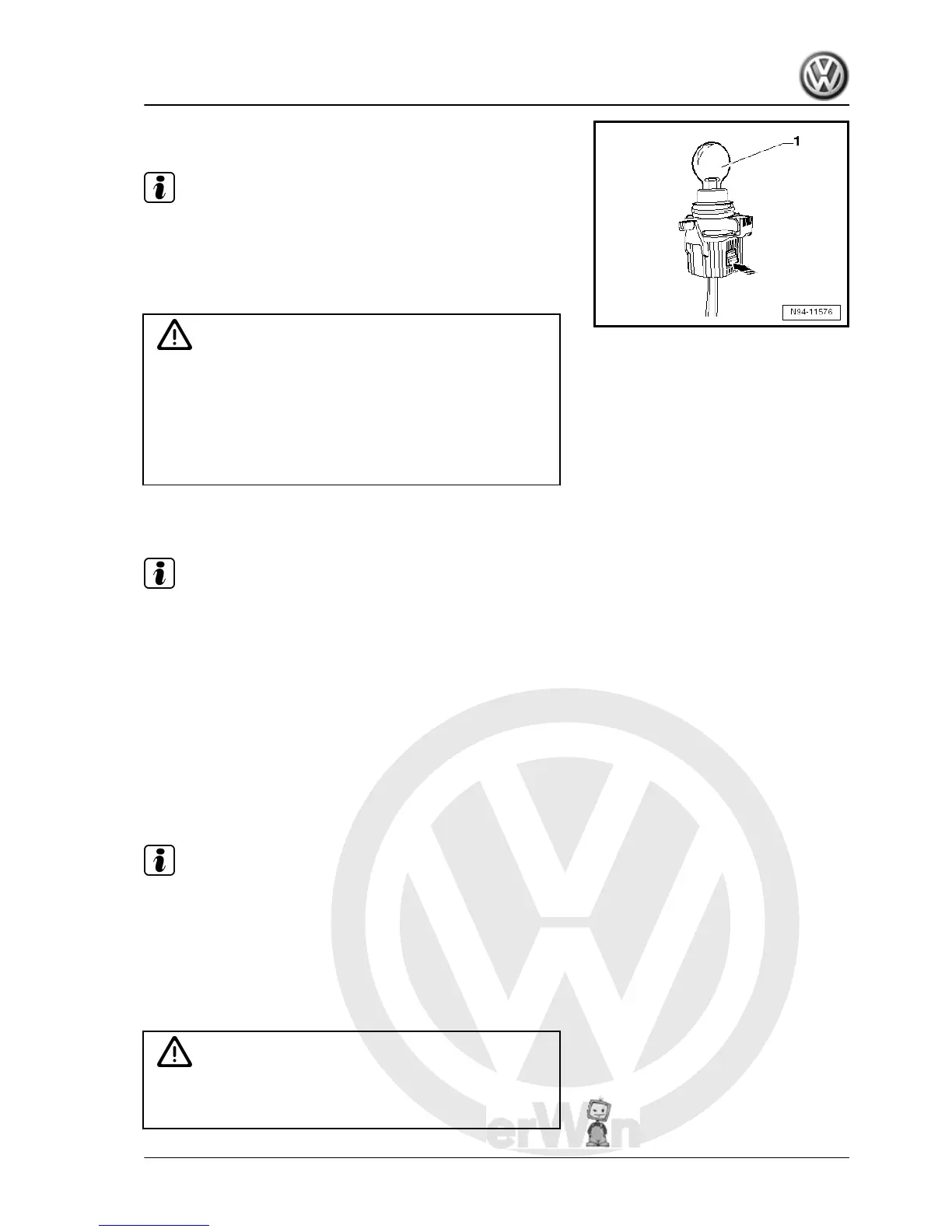

– Press lock button -arrow- and pull left front turn signal bulb -
M5- -1- upwards out of bulb holder.
Note
The left front turn signal bulb -M5- is permanently attached to the
bulb holder and cannot be dismantled.
Bulb: 12 V/24 W
Installing
Caution
♦ Do not touch glass envelope when fitting bulb. Fingers
leave traces of grease on the glass envelope, which evap‐
orate when the bulb is switched on and cause the glass
envelope to cloud over.
♦ When installing cover cap, ensure that it seats properly.
The ingress of water will lead to permanent damage to the
headlight.
Carry out installation in the reverse sequence, noting the follow‐
ing:
Note
♦ To lock the bulb holder, there are two locking lugs of different
lengths in the reflector.
♦ Insert bulb holder together with left front turn signal bulb -M5-
into reflector so that the longer locking lug points upwards.
– Check headlight functions.
2.6 Removing and installing headlight range
control motor
2.6.1 Removing and installing (Hella)
Note
♦ If control motors are removed and reinstalled or renewed, the
headlight adjustment must be checked and the headlights ad‐
justed ⇒ Maintenance ; Booklet 20.1 ; Description of work .
♦ The illustrations show the renewal of the left headlight range
control motor -V48- for the left headlight.
♦ The renewal of the headlight range control motor -V49- for the
right headlight is carried out in the same way.
Caution
♦ Switch off ignition and all electrical consumers.
♦ Remove the ignition key.
Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤
Electrical system - Edition 07.2010
2. Headlights with halogen bulbs (from MY2009) 247
