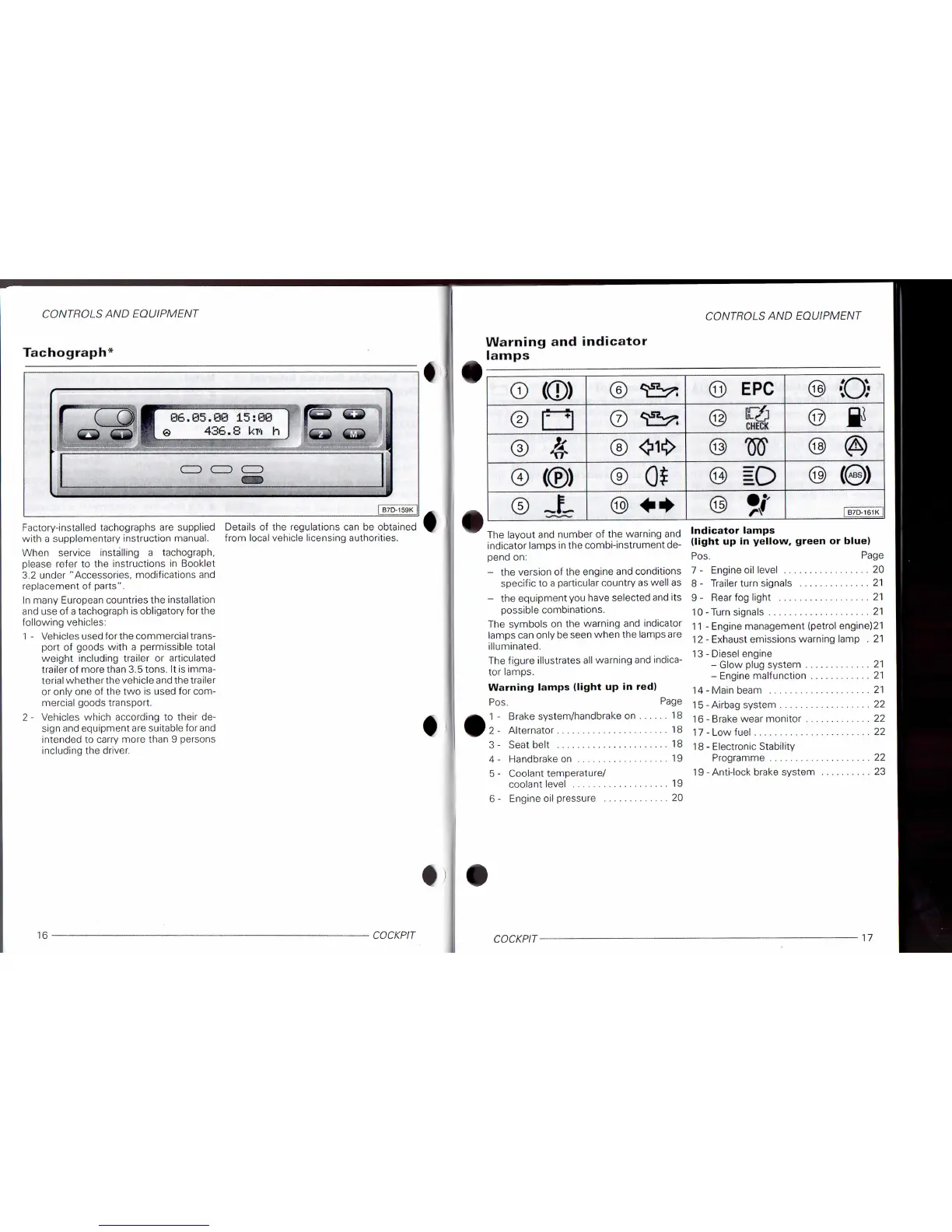

CONTROLS AND
EQUIPMENT
Tachograph*
r
r c_o|
;
86.85.88
15:88
[
©
436.8
km h t
CD
( ) ( )
CZD
i
I
B7D-159K
|
Factory-installed tachographs
are
supplied Details
of the
regulations
can be
obtained
with
a
supplementary instruction manual. from local vehicle licensing authorities.
When service installing
a
tachograph,
please refer
to the
instructions
in
Booklet
3.2 under "Accessories, modifications
and
replacement
of
parts".
In
many European countries the installation
and
use of
a tachograph
is
obligatory for the
following
vehicles:
1
-
Vehicles used
for
the commercial trans-
port
of
goods with
a
permissible total
weight including trailer
or
articulated
trailer
of more than
3.5
tons.
It is
imma-
terial
whether the vehicle and the trailer
or only one
of
the two
is
used for
com-
mercial goods transport.
2
-
Vehicles which according
to
their
de-
sign
and equipment are suitable for and
intended to carry more than
9
persons
including the driver.
16
COCKPIT
CONTROLS AND
EQUIPMENT
Warning
and
indicator
lamps
©
((D)
©
©
EPC
©
O
©
Q
©
©
^6
V-/
CHECK
©
fll
©
©
<>10
©
w
©
(S>
©
(®)
©
Qi
©
ID
©
(©)
®
©
ft
[B7D-161KJ
The layout and number
of
the
warning
and
indicator lamps in the combi-instrument de-
pend
on:
-
the
version
of
the engine and conditions
specific to
a
particular country
as
well
as
-
the
equipment you have selected and
its
possible combinations.
The symbols
on the
warning
and
indicator
lamps can only be seen when the lamps are
illuminated.
The figure illustrates all warning and indica-
tor
lamps.
Warning
lamps
(light
up in red)
Pos.
Page
1
-
Brake system/handbrake
on
18
2
-
Alternator
18
3
-
Seat
belt
18
4
-
Handbrake
on
19
5
-
Coolant temperature/
coolant level
19
6
-
Engine
oil pressure
20
Indicator lamps
(light
up in yellow, green or blue)
Pos.
Page
7
-
Engine
oil level
20
8- Trailer turn
signals
21
9
-
Rear fog light
21
10 -
Turn
signals
21
11
-
Engine
management (petrol engine)21
12
-
Exhaust
emissions warning lamp
. 21
13
-
Diesel engine
-
Glow plug system
21
-
Engine
malfunction
21
14
-
Main
beam
21
15 - Airbag system
22
16
-
Brake wear monitor
22
17-Low fuel
22
18
-
Electronic Stability
Programme
22
19 - Anti-lock brake system
23
COCKPIT
17
