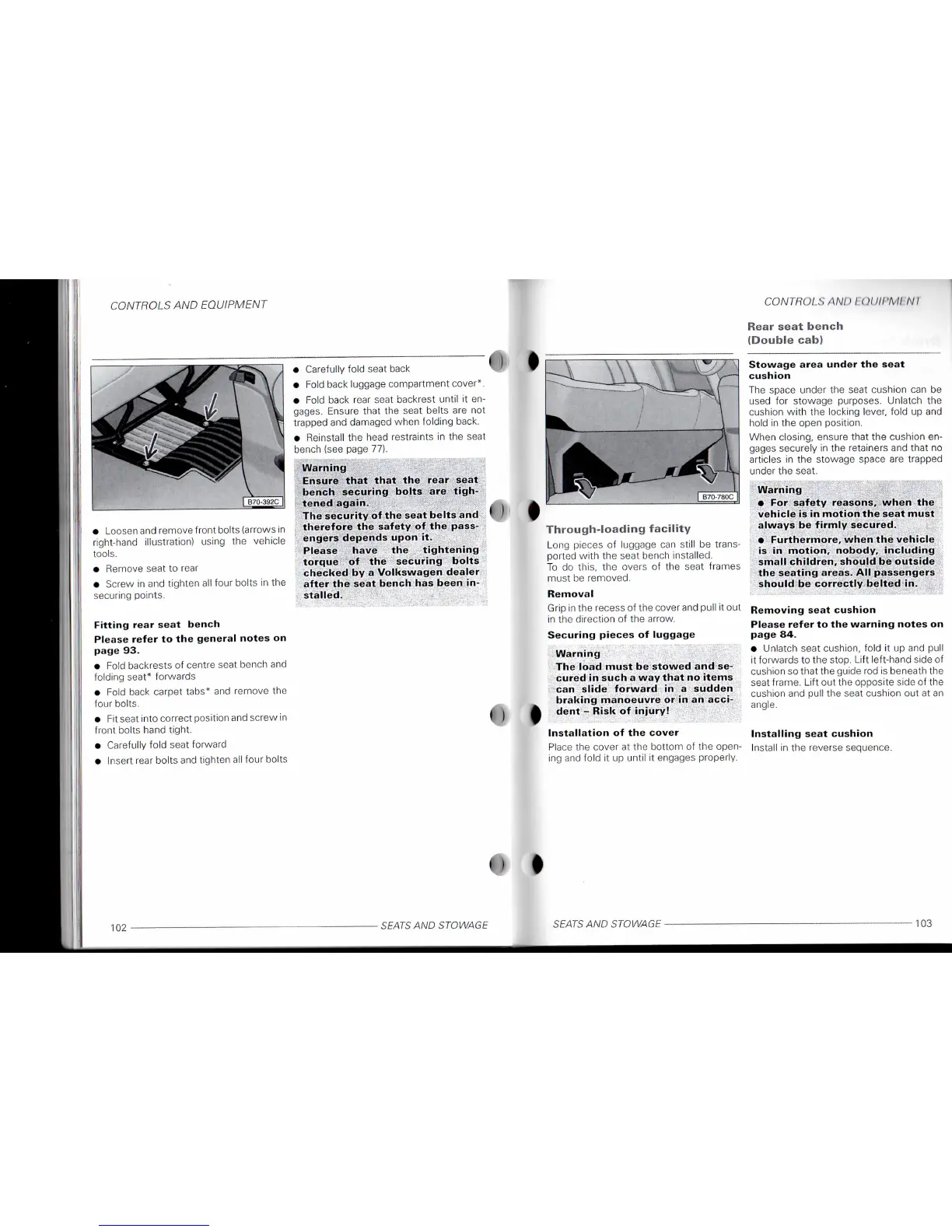

CONTROLS
AND EQUIPMENT
• Loosen and remove
front
bolts (arrows in
right-hand illustration) using the vehicle
tools.
• Remove seat to rear
• Screw in and
tighten
all four bolts in the
securing points.
Fitting
rear
seat
bench
Please
refer
to the
general
notes
on
page
93.
• Fold backrests of centre scat bench and
folding seat* forwards
• Fold back carpet tabs* and remove the
four bolts.
• Fit seat
into
correct position and screw in
front
bolts hand
tight.
• Carefully fold seat forward
•
Insert
rear bolts and
tighten
all four bolts
• Carefully fold seat back
• Fold back luggage compartment cover*.
• Fold back rear seat backrest
until
it en-
gages.
Ensure
that
the seat belts are not
trapped and damaged when folding back.
• Reinstall the head restraints in the seat
bench (see page 77).
Warning
Ensure
that that
the
rear
seat
bench
securing
bolts
are
tigh-
tened
again.
The
security
of the
seat
belts
and
therefore
the
safety
of the pass-
engers
depends
upon
it.
Please
have
the
tightening
torque
of the
securing
bolts
checked
by a
Volkswagen
dealer
after
the
seat
bench
has
been
in-
stalled.
102
SEATS
AND
STOWAGE
CONTROt
SAND I
OUII'MI
Nl
^^^~~/*—'
| B70-780C |
Through-loading
facility
Long pieces of luggage can still be trans-
ported
with
the seat bench installed.
To do this, the overs of the seat frames
must be removed.
Removal
Grip
in the recess of the cover and pull it out
in the direction of the arrow.
Securing
pieces
of
luggage
Warning
The
load
must
be
stowed
and se-
cured
in such a way
that
no
items
can
slide
forward
in a
sudden
braking
manoeuvre
or in an acci-
dent
-
Risk
of
injury!
Installation
of the
cover
Place
the cover at the
bottom
of the open-
ing and fold it up
until
it engages properly.
Rear
seat
bench
{Double
cab)
Stowage
area
under
the
seat
cushion
The space under the seat cushion can be
used
for stowage purposes. Unlatch the
cushion
with
the locking lever, fold up and
hold in the open position.
When closing, ensure
that
the cushion en-
gages
securely in the retainers and
that
no
articles in the stowage space are trapped
under the seat.
Warning
• For
safety
reasons,
when
the
vehicle
is in
motion
the
seat
must
always
be
firmly
secured.
•
Furthermore,
when
the
vehicle
is in
motion,
nobody,
including
small
children,
should be
outside
the
seating
areas.
All
passengers
should be
correctly
belted
in.
Removing
seat
cushion
Please
refer
to the
warning
notes
on
page
84.
• Unlatch seat cushion, fold it up and pull
it forwards to the stop.
Lift
left-hand side of
cushion so
that
the guide rod is beneath the
seat frame.
Lift
out the opposite side of the
cushion and pull the seat cushion out at an
angle.
Installing
seat
cushion
Install
in the reverse sequence.
SEATS
AND
STOWAGE
-
103
