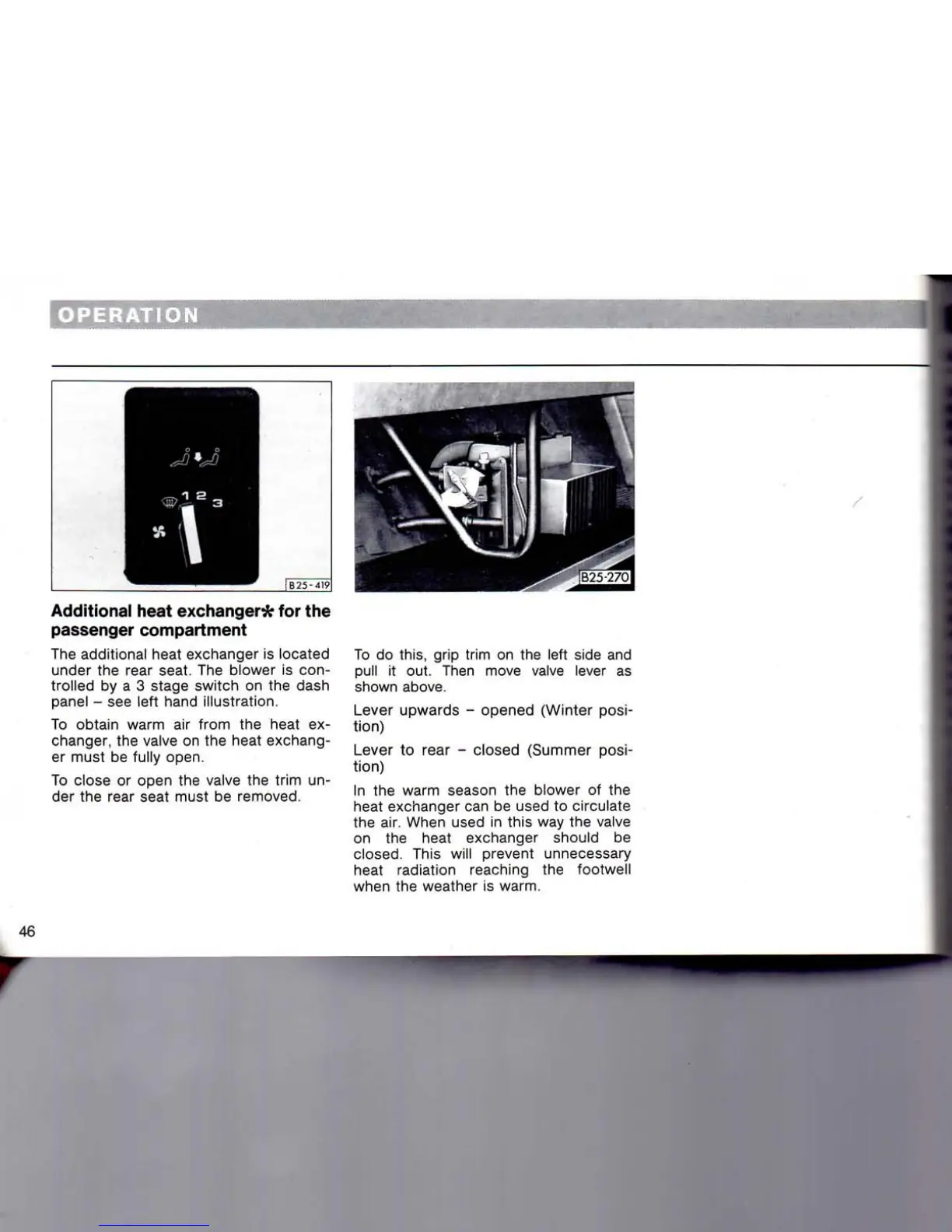

Additional heat exchanger* for the
passenger compartment
The additional heat exchanger is located
under the rear seat. The blower is
con-
trolled by a 3 stage switch on the dash
panel - see left hand illustration.
To obtain warm air from the heat ex-
changer, the valve on the heat exchang-
er must be fully open.
To close or open the valve the trim un-
der the rear seat must be removed.
To do this, grip trim on the left side and
pull it out. Then move valve lever as
shown above.
Lever upwards - opened (Winter
posi-
tion)
Lever to rear - closed (Summer
posi-
tion)
In the warm season the blower of the
heat exchanger can be used to circulate
the air. When used in this way the valve
on the heat exchanger should be
closed.
This will prevent unnecessary
heat radiation reaching the footwell
when the weather is warm.
