48oz. Portion Control Dispenser
SETTING DISPENSER PORTIONS:
Squeeze the end of the octagonal pin (part
#8600) together and push it out until the
octagonal-shaped cam can be rotated easily.
Rotate cam to desired portion, marked 1 through
8 on cam. This will limit the travel of the
dispenser bar and the amount dispensed.
Portions will vary slightly depending upon the
viscosity of the ingredient dispensed and the style
of diffuser. Two diffusers are available: a diffuser
for heavy or non-homogenous sauces with a large
hole in the middle (part #9600-06), and a diffuser
for smooth homogeneous sauces with six small
holes around the edges (part #9601-06). Both
diffusers are black in color (natural rubber), you
will need to pick them up and examine them to
determine which diffuser you will install.

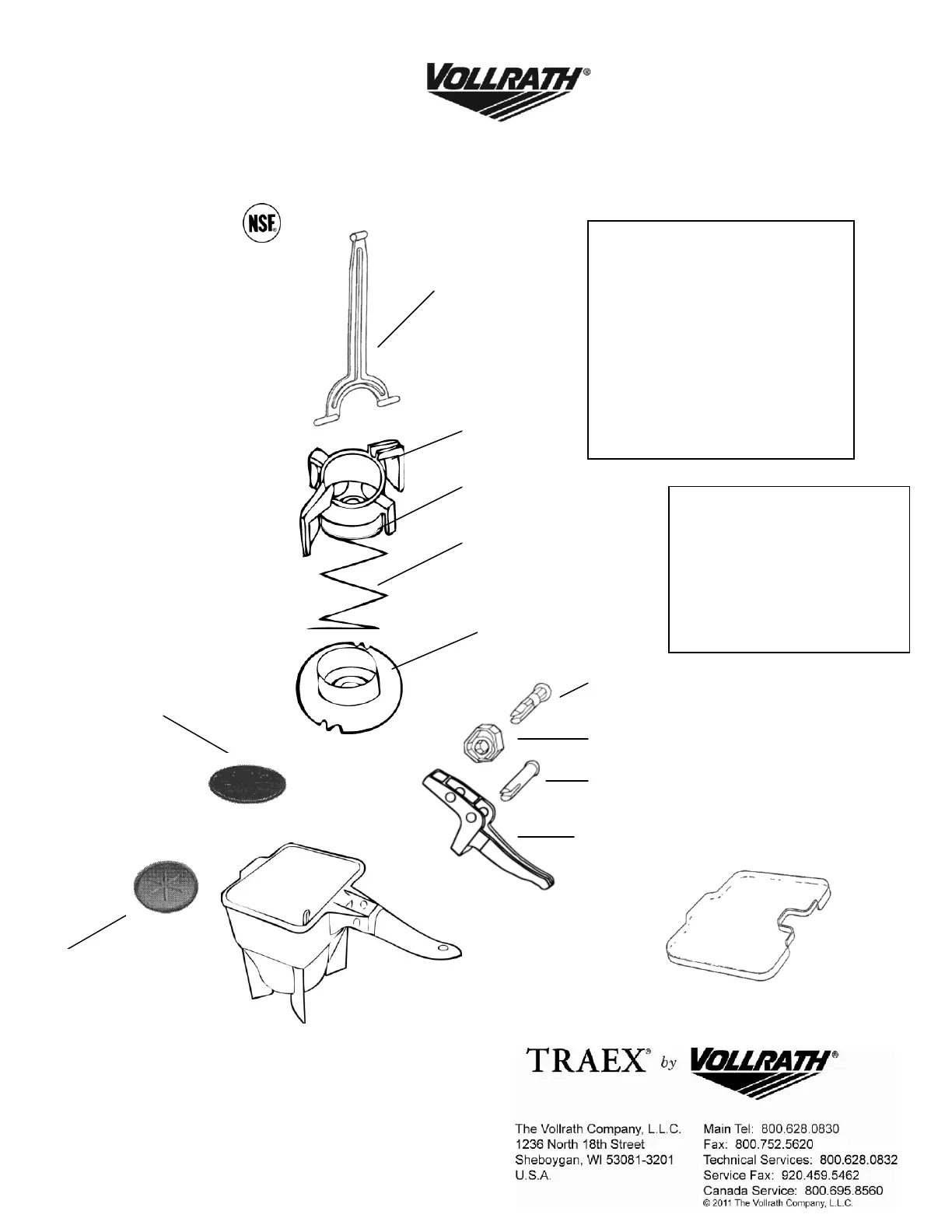

For reordering Octagonal
Pin, Octagonal Cam, Trigger
Pin, Trigger, Dispenser Bar,
Piston, Check Valve,
Cylinder, Octagonal Yellow
Auxiliary Cam, Spring,
Order Kit number 2802
