INSTALLATION INSTRUCTIONS
www.voltlighting.com
VOLT
®
The Tank
130 Series
Wire Connections
3

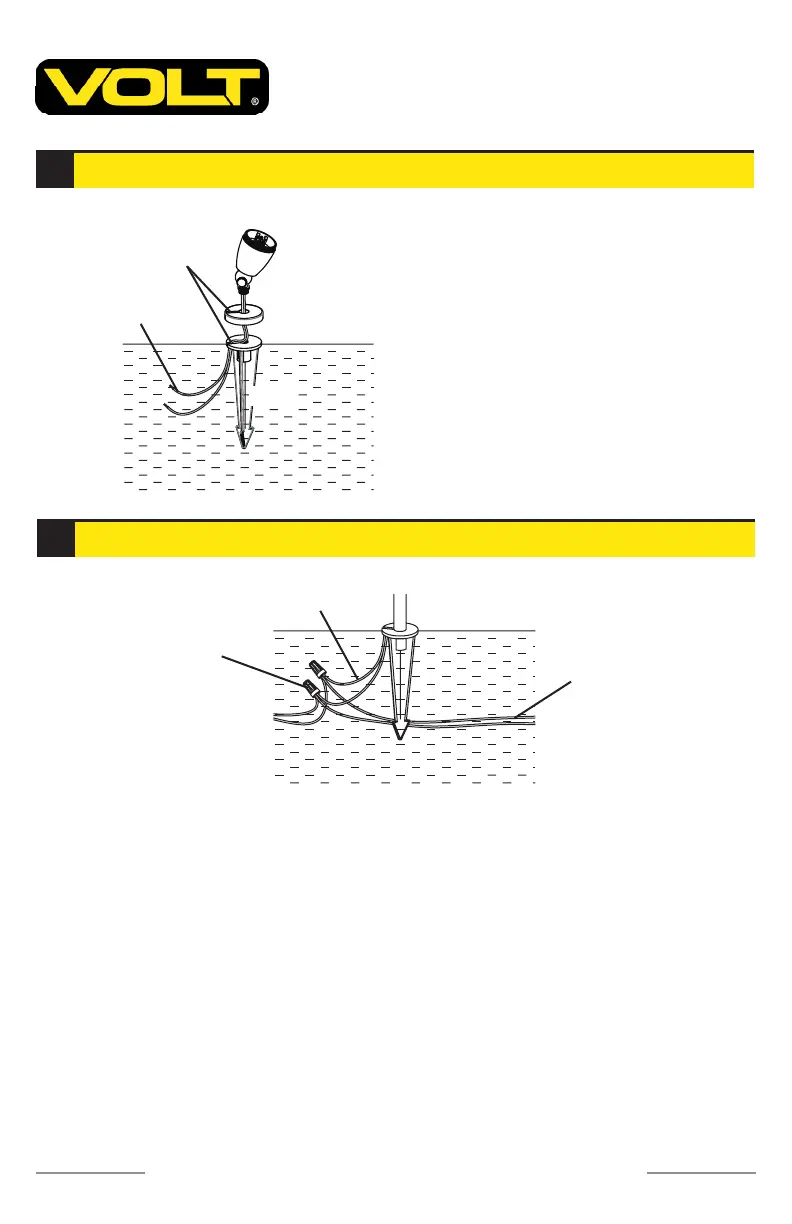

Strip two leads from luminaire pigtail. Using two wire connectors, sold
separately, connect leads from luminaire to main low voltage supply
cable lead.
Luminaire Wires
Main Low Voltage
Supply Cable
Wire
Connectors
Clear away area in ground at wireway
slot in top of stake. Lay luminaire
pigtail into wireway slots and screw
luminaire into stake.
If using optional stake cover, sold
separately, align the wireway slots on
stake cover and stake before screw-
ing luminaire into stake.
Use included locknut to secure the
luminaire position.
Install Luminaire to Stake
2
Luminaire
Stake Cover
Stake
Pigtail
Wireway Slot
