Classico Path & Area Light
360 Series

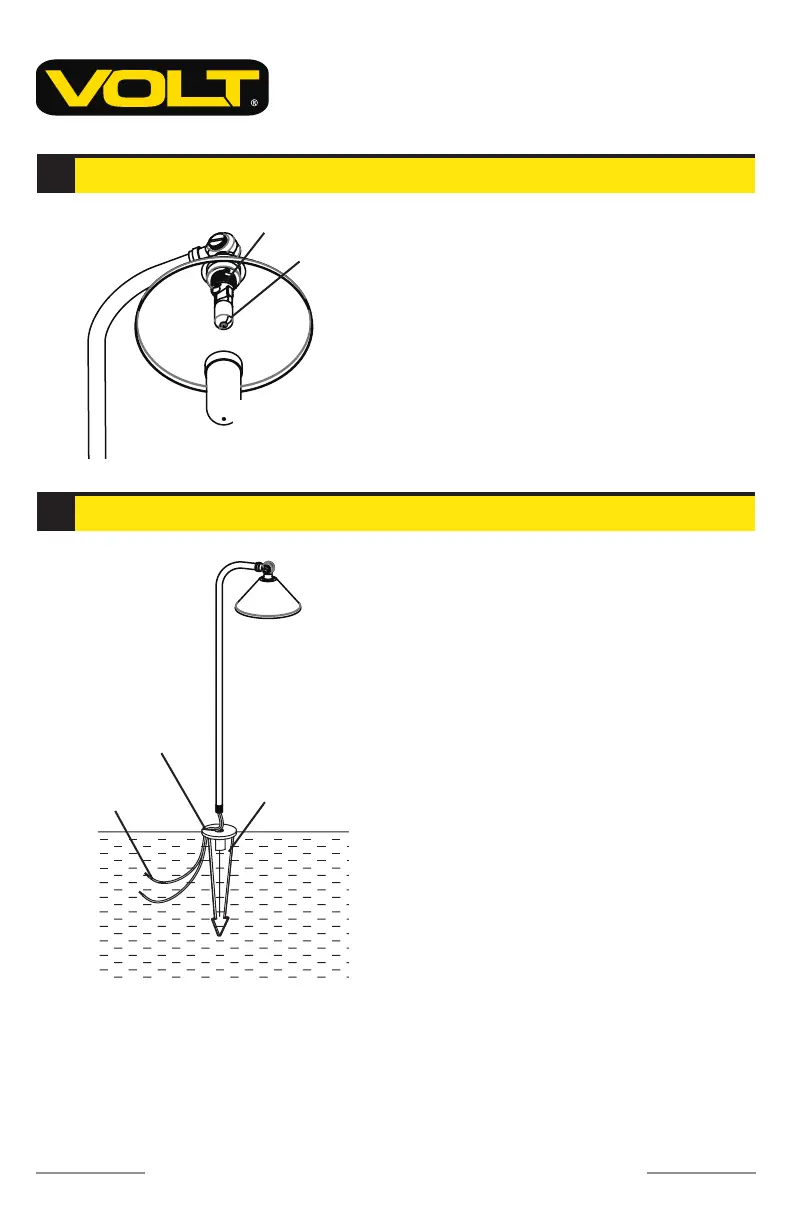

Install Lamp Shield
Install Luminaire to Stake
3
4
Attach inner shield over socket and
secure by threading handle into
mounting hole on the stem.
Clear away area in ground at wireway
slot in top of stake. Lay luminaire
pigtail into wireway slot and screw
stem into stake.
If assembly does not look straight,
adjust by pushing or pulling on stake
only.
Use bubble level against side of stem
to ensure that stem is perpendicular
to ground.
Socket
Lamp Shield
Pigtail
Stem
Stake
Wireway Slot
Lamp
