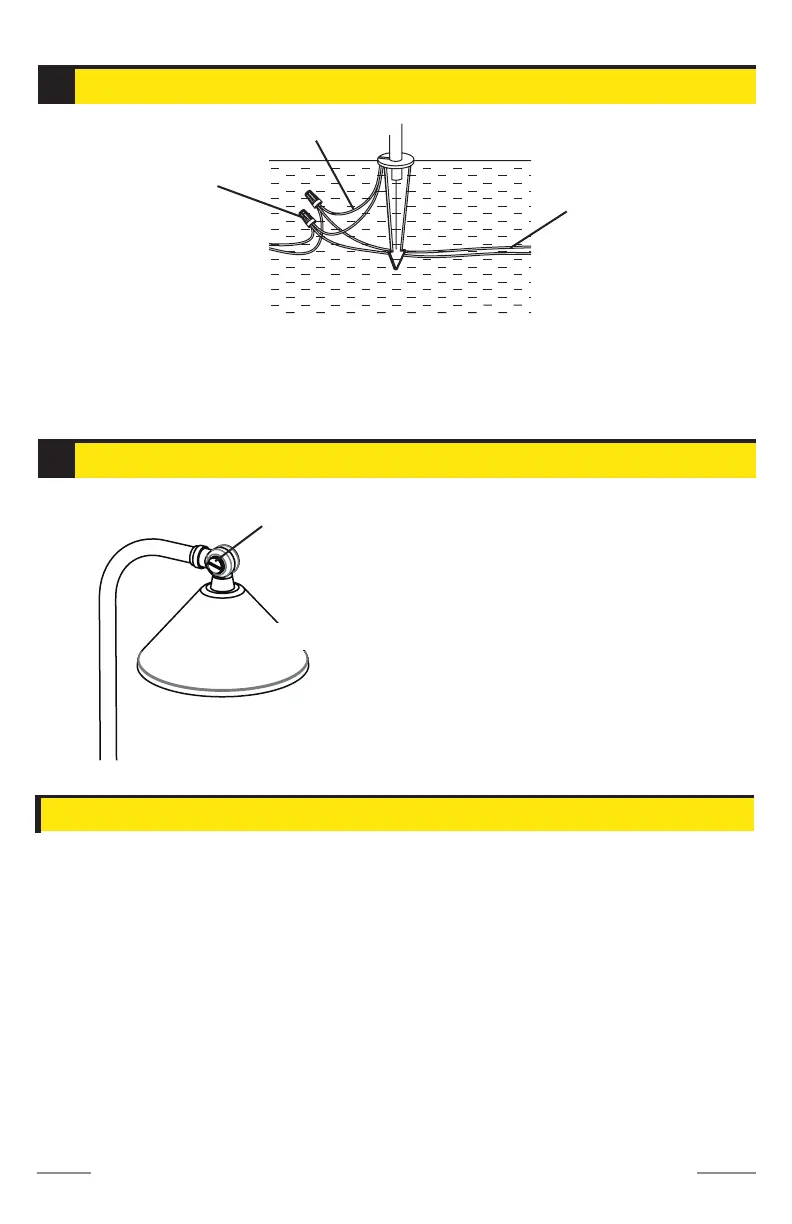

Wire Connections
Adjust Angle of Shade
5
6
Using screwdriver, loosen set screw
then move shade to desired angle.
Retighten set screw.
Strip two leads from luminaire pigtail. Using two wire connectors, sold
separately, connect leads from luminaire to main low voltage supply
cable lead.
Luminaire Wires
Main Low Voltage
Supply Cable
Wire
Connectors
Set Screw
Shade
Maintenance – Install/Replace Lamp
Unscrew the lamp shield to expose the lamp and replace it with correct
wattage and type marked on luminaire label. And then reinstall the lamp
shield.
IMPORTANT: Halogen lamps must be protected from moisture and dust at all
times. Always re-install shade and lens when moved.
