6.4 Examination of brake
6.4.1 Brake Drum:

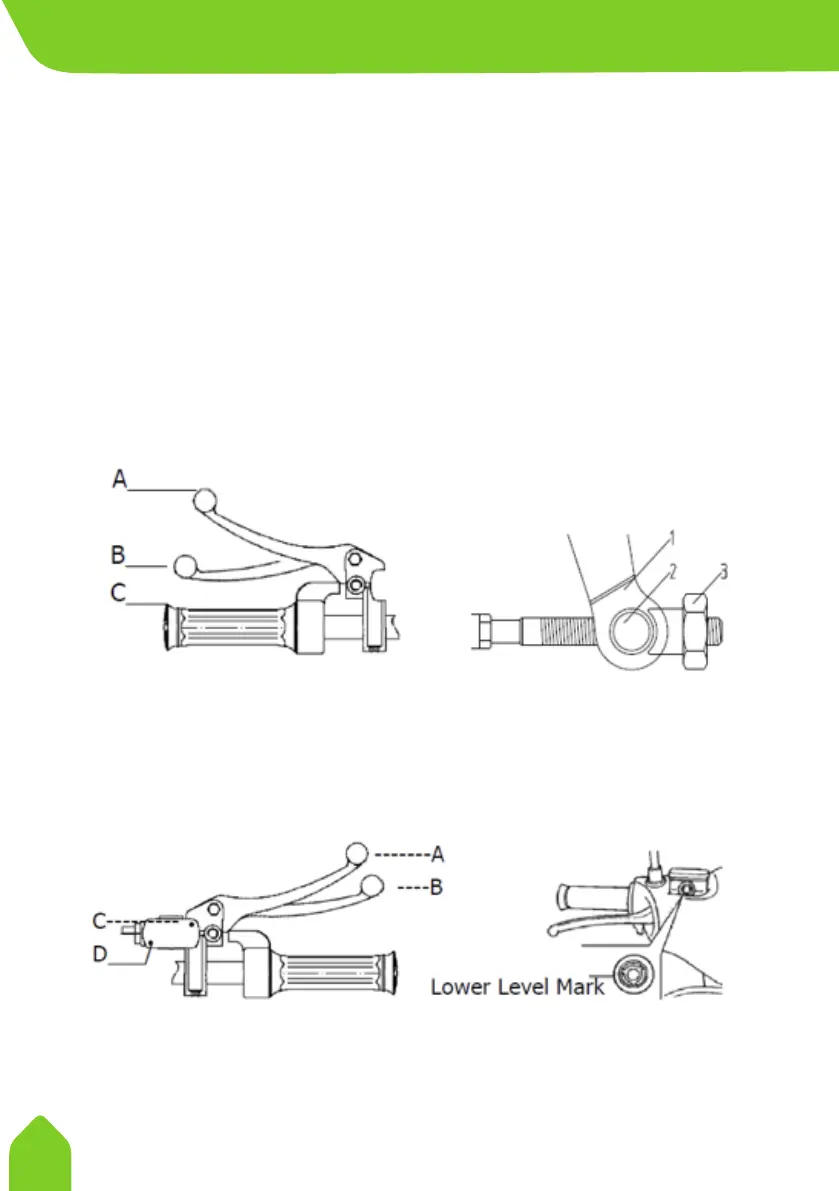

6.4.1.1 Press the connection area (1), Tighten adjustable nut (3), Hold brake
lever at the same time (2), and press the brake at your desired level at a
distance of 1/3rd-1/2th of A-C distance (B-C).
6.4.1.2 Place the brake drum and tighten the nut to obtain best eciency,
tightness and performance.
6.4.1.3 Optimum braking is provided when distance between brake disc and
drum is 1.5 mm.
6.4.1.4 When brake lining is reduced to half of its status replace it .
6.4.2 Disc Brake:
6.4.2.1 Brake lever that is at the right side of handlebar belongs to disc
brake.Empty distance of 10-20 mm is left between A and B positions.
6.4.2.2 If empty distance is not 10-20 mm, brake hydraulics has reduced.
Private brake hydraulics should be added to the space opened by
dismounting C and D nuts.
