VOLTECH AT3600 USER MANUAL OVERVIEW
INTRODUCTION VPN 98 - 024 PAGE 1.3.3.

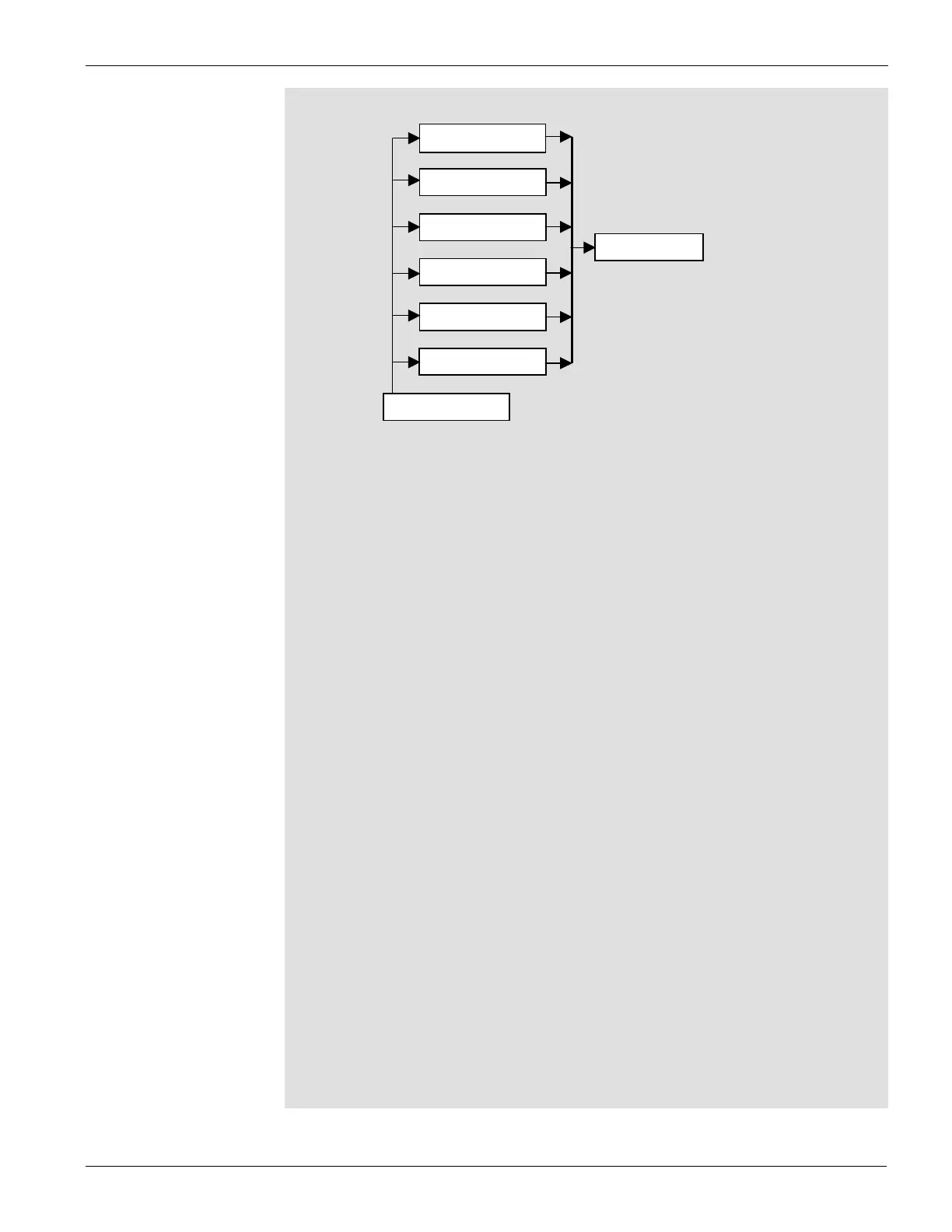

Test Sources
There are six different test sources within the AT3600.
The processors select which one is to be connected to the relay matrix, as each test is executed.
Measurement Circuits
The AT3600 tester contains a variety of circuits, capable of performing all the following
measurements:
• Voltages from less than 1mV to greater than 7000V,
• Currents from nano-amps to amps,
• DC and harmonic analysis,
• RMS, mean-sense, wattage and VA analysis,
• Transient capture,
and more.
Again, the processors select which is appropriate for each test as it is executed.
Keyboard & Display
The front-panel of the tester contains an LCD graphics panel display, three LED’s, and a
membrane type alpha-numeric keyboard.
To give the greatest versatility and ease of use, the front panel ergonomics are based around
four ‘soft-keys’, which are situated to the right of the display. During operation, the display
provides titles for these keys, allowing them to change with the context, so that the operator is
presented with only the key choices that are relevant at that point in time.
Interfaces
These include the Remote, Bar Code, Auxiliary and Server Ports located on the rear panel, and
the User Port that is at the rear of the top surface.
AC Hi-Pot
DC Hi-Pot
Sur
e
Hi
h Powe
Low Powe
Constant Current
Processors
Rela
Matrix
To Next Page
