VOLTECH AT3600 USER MANUAL QUICK START TUTORIAL
GETTING STARTED VPN 98 - 024 PAGE 2.3.1.
3. QUICK START TUTORIAL
2.3.1 QUICK START TUTORIAL
After you have installed the AT3600, together with the editor and server software
packages as described in the previous section you may wish to follow through this
tutorial before trying to create any programs for actual use.
The purpose of this tutorial is to familiarize you with the process of creating a
schematic and a test program using the editor. The program you will create will only
run if your tester has been installed with the tests used.

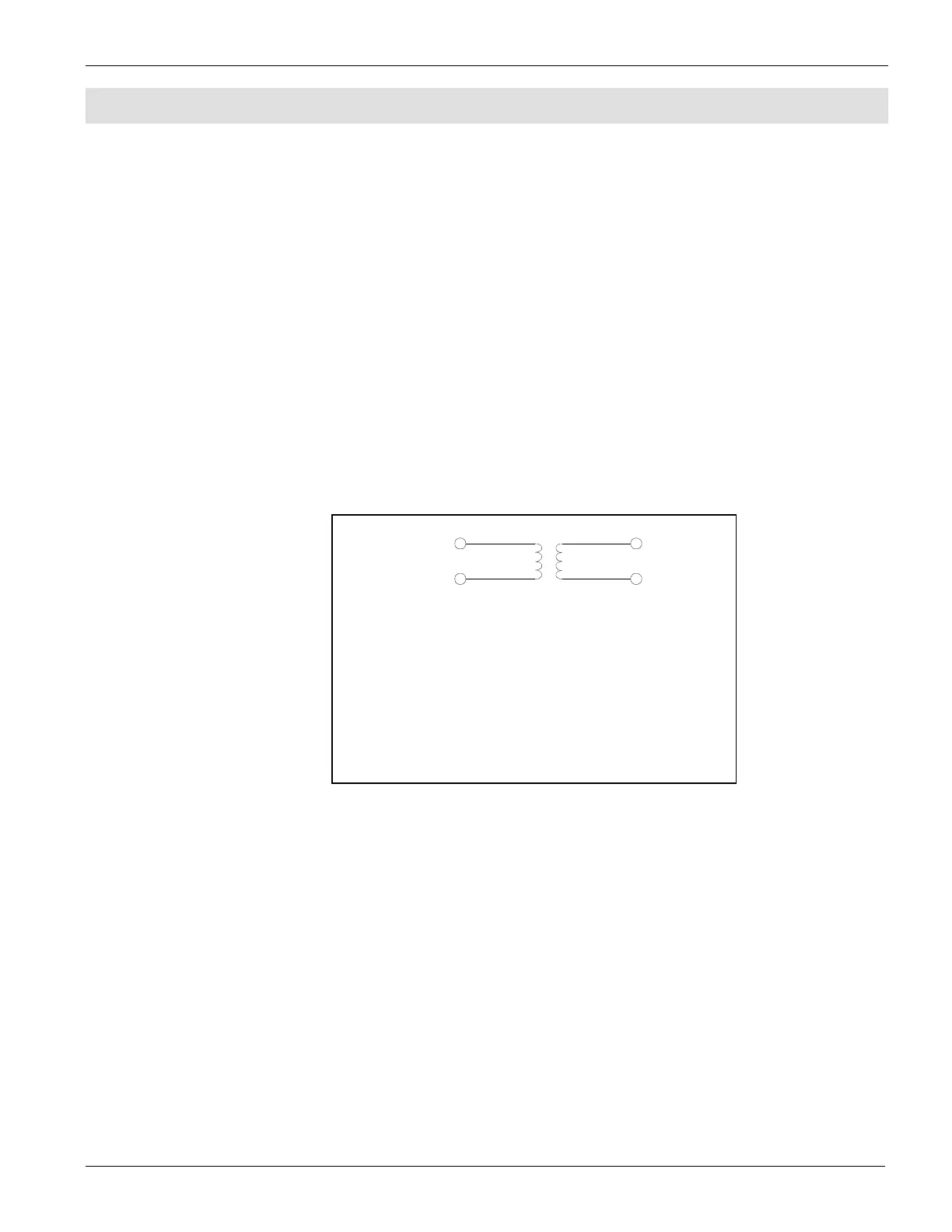

C
REATING A SCHEMATIC OF A 2-WINDING, 4-TERMINAL
SAMPLE TRANSFORMER
This tutorial describes a method of setting up the tester to test a two winding
transformer with the following specification:
Resistance of winding AB (59 to 73Ω)
Resistance of winding CD (59 to 73Ω)
Inductance of winding AB (>3H)
Turns ratio AB to CD (1:1 ± 2%)
Before proceeding ensure that the tester is connected to the editor PC as described in
chapter 2.2.
A
B
C
D
