QUICK START TUTORIAL VOLTECH AT3600 USER MANUAL
PAGE 2.3.4 VPN 98 - 024 GETTING STARTED
Initially set up the program options:
From the top level menu bar select:
Program
Options

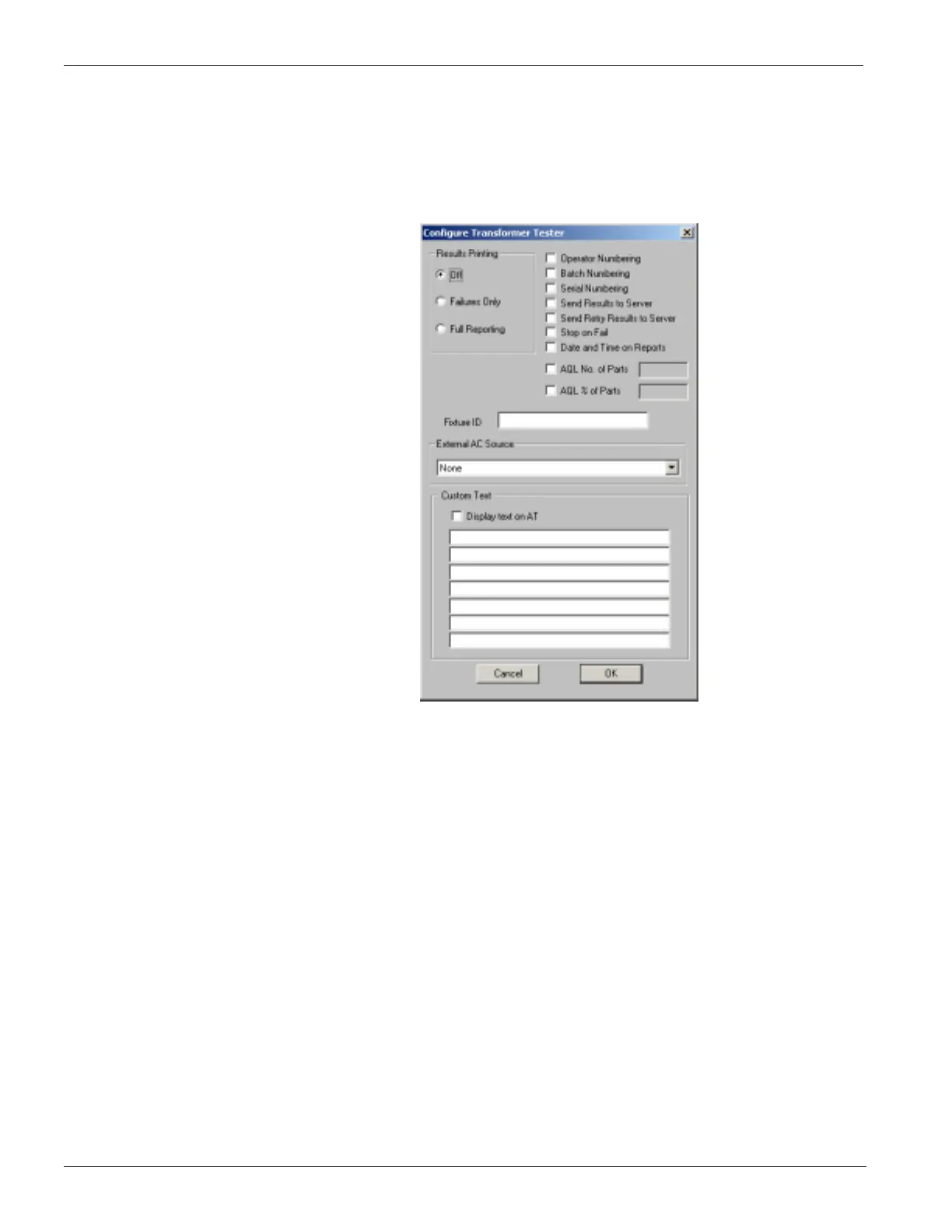

The following dialogue box will appear:
By clicking with the mouse, enable the following option
‘Send Results to Server’
In the Fixture ID box, enter the name:
‘UNIVERSAL’
Click on ‘OK’ or press [Return] to accept and close the dialogue box.
You can now move on to create the program:
From the Top Level ‘Program’ menu, select ‘Edit’.
The screen will now be made up of three Windows:
Top left: The schematic window showing the two windings.
Right: The available tests window listing all the tests available on your
AT3600. (If the tester is connected all unavailable tests will be
greyed out).
Lower left: The Program window displaying the tests programmed so far.
