Identification Numbers
Informational Decals and
Identification Plates

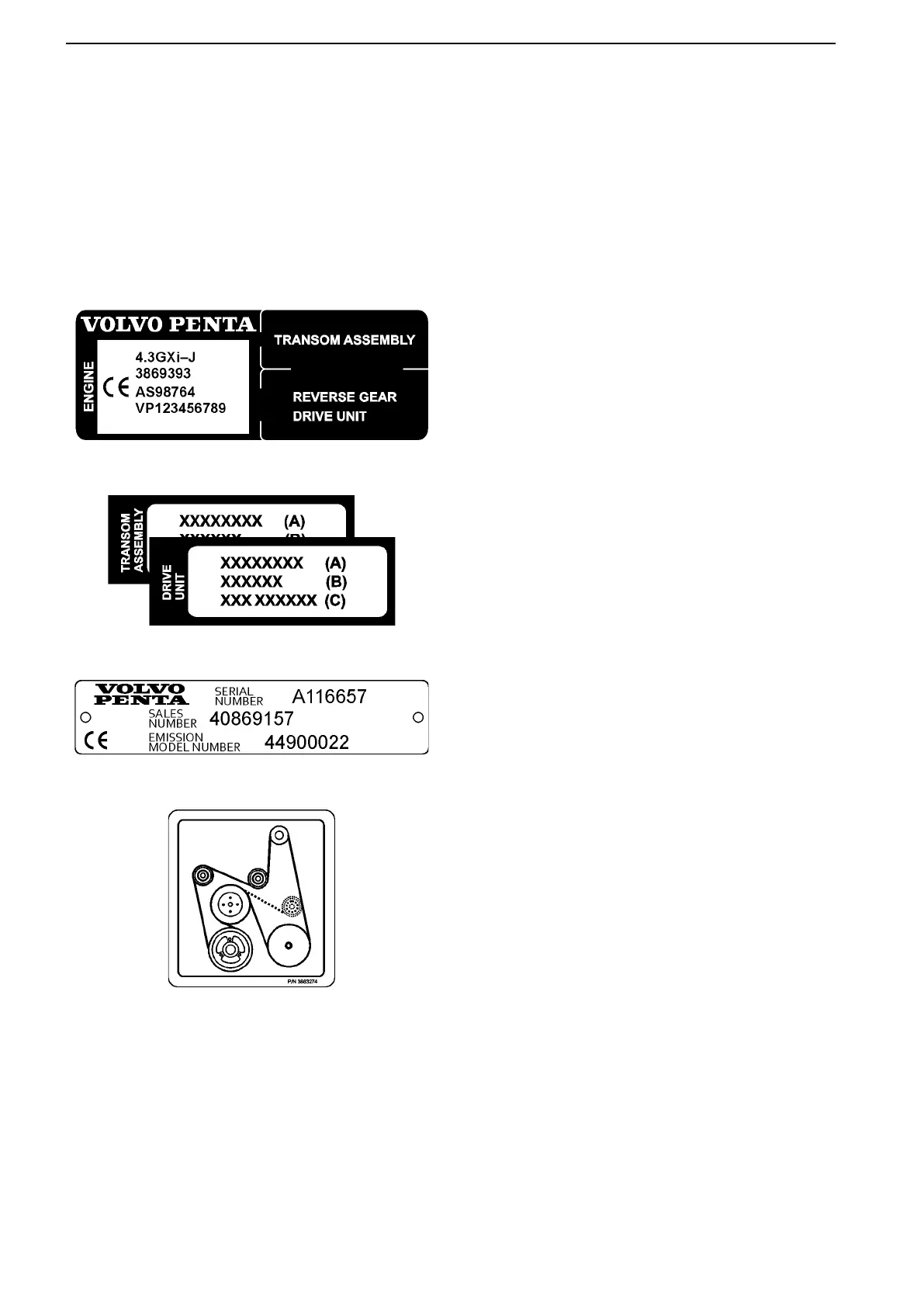

The following images provide graphical representations of various engine decals. The areas described are gen-
eral locations and are intended to be guides only. Engine models and configurations do vary and, depending on
the amount of space available, the exact locations of engine decals tend to vary also.
51805
The engine decal is located on the engine cover.
22780-1
The transom assembly & drive unit stickers should be
located on the engine decal. Your Volvo Penta dealer
will have attached these stickers at the time that the
transom assembly and drive unit were mounted on
your boat and attached to the engine.
51802
The engine plate is typically located on the port rear
side of the engine block.
3863274
The label depicting the serpentine belt configuration
is typically mounted on a flat surface located on the
front of the alternator/automatic tensioner bracket.
Technical Data
164 47701898 12-2010
