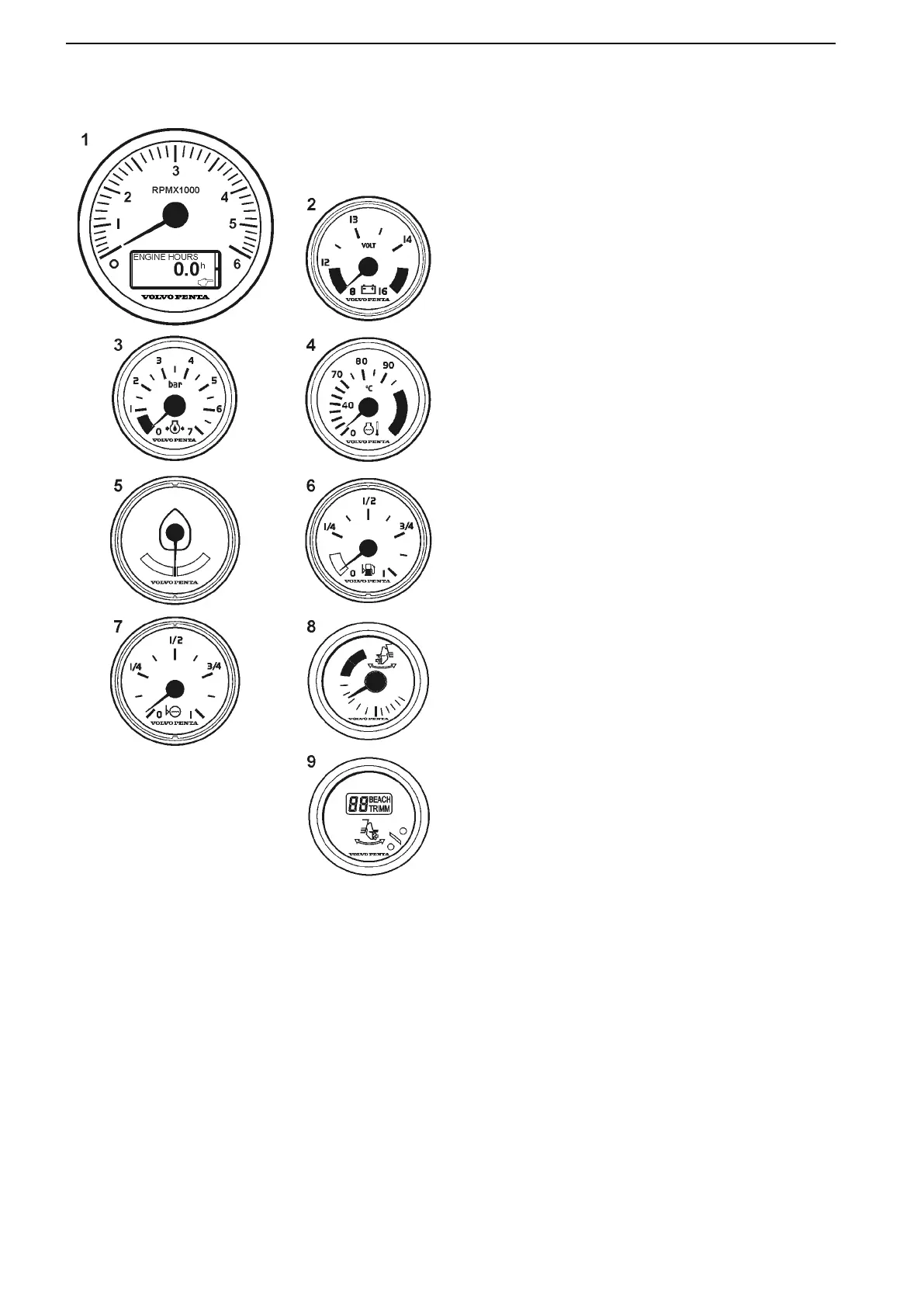

Optional Gauges
51279
There is one gauge (of each type) for each engine.
All gauges are optional; however, the boat is always
equipped with either an EVC System Tachometer with
LCD display or an EVC System Display, since at least
one of these instruments is needed when modifying
EVC settings.
1. EVC System Tachometer (with LCD display)
Information about the tachometer display and
how to handle it can be found in EVC Menu.
2. Voltmeter
3. Oil Pressure Gauge
4. Coolant Temperature Gauge
5. Rudder Indicator
6. Fuel Level Gauge
7. Fresh Water Level Gauge
8. Analog Trim Instrument
9. Digital Trim Instrument
Instruments and Controls
16 47701898 12-2010
