5 Crankcase ventilation heater, Solenoid valves 15A
6 Mass airflow sensor, Engine control module, Injectors 15A
7 Throttle module 10A
8 AC compressor, Accelerator pedal position sensor 10A
9 Horn 15A
10 Tailgate wiper 10A
11 AC compressor, Ignition coils 20A
12 Brake light switch 5A
13 Windshield wipers 25A
14 ABS 30A
15 -
16 Windshield and headlight washers 15A
17 Low beam, right 10A
18 Low beam, left 10A
19 ABS 30A
20 High beam, left 15A
21 High beam, right 15A
22 Starter motor 25A
23 Engine control module 5A
24 -
pg. 114 Fuses in the passenger compartment

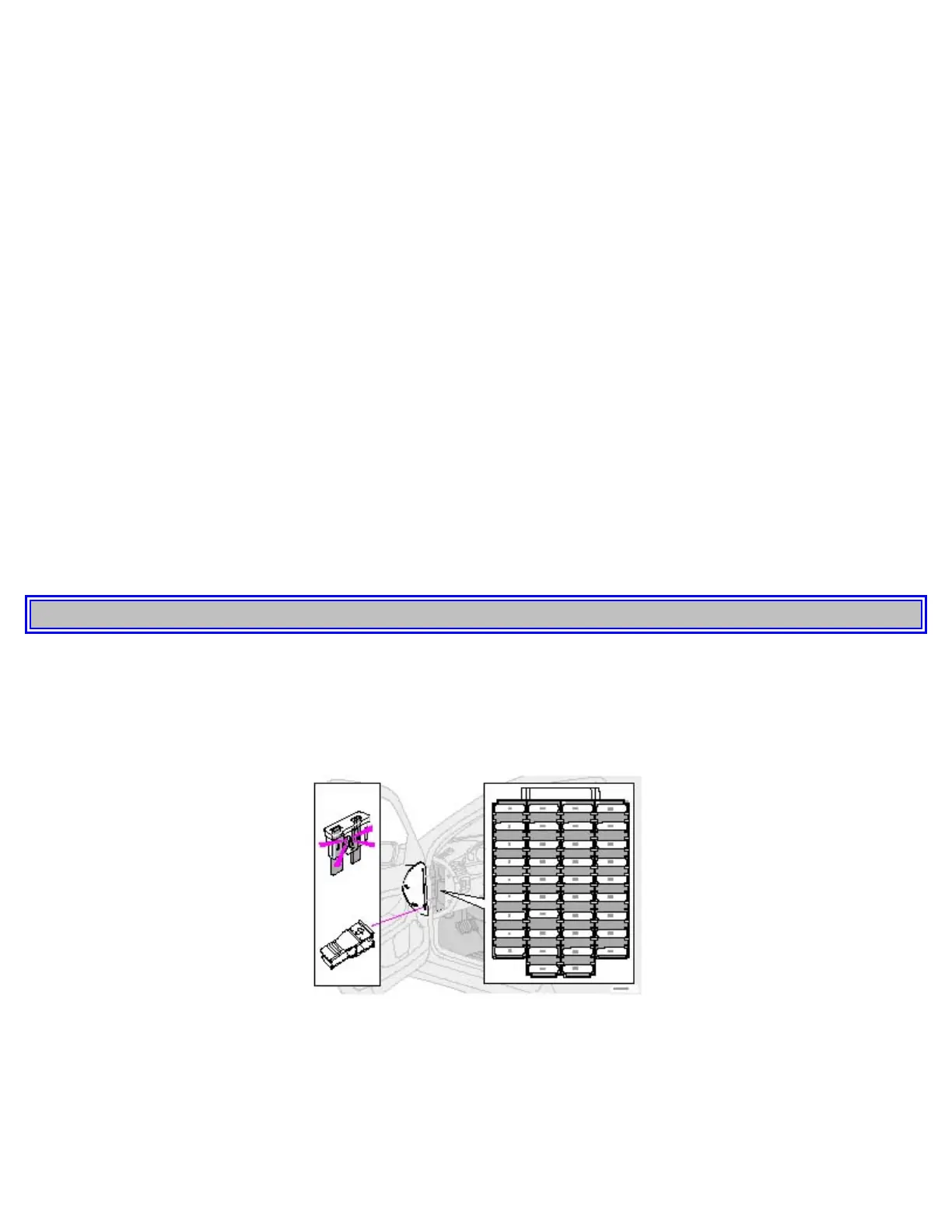

Fuse box in the passenger compartment
This fuse box is located at the far left side of the instrument panel. Extra fuses and the fuse removal tool are also stored
here. When replacing a blown fuse, be sure to replace it with a new one of the same color and amperage (written on
the fuse).
Location Amperage
1 -
2 -
3 Low beam headlights 15A
4 High beam headlights 20A
5 Power driver's seat 30A
