16
IMG- 231565

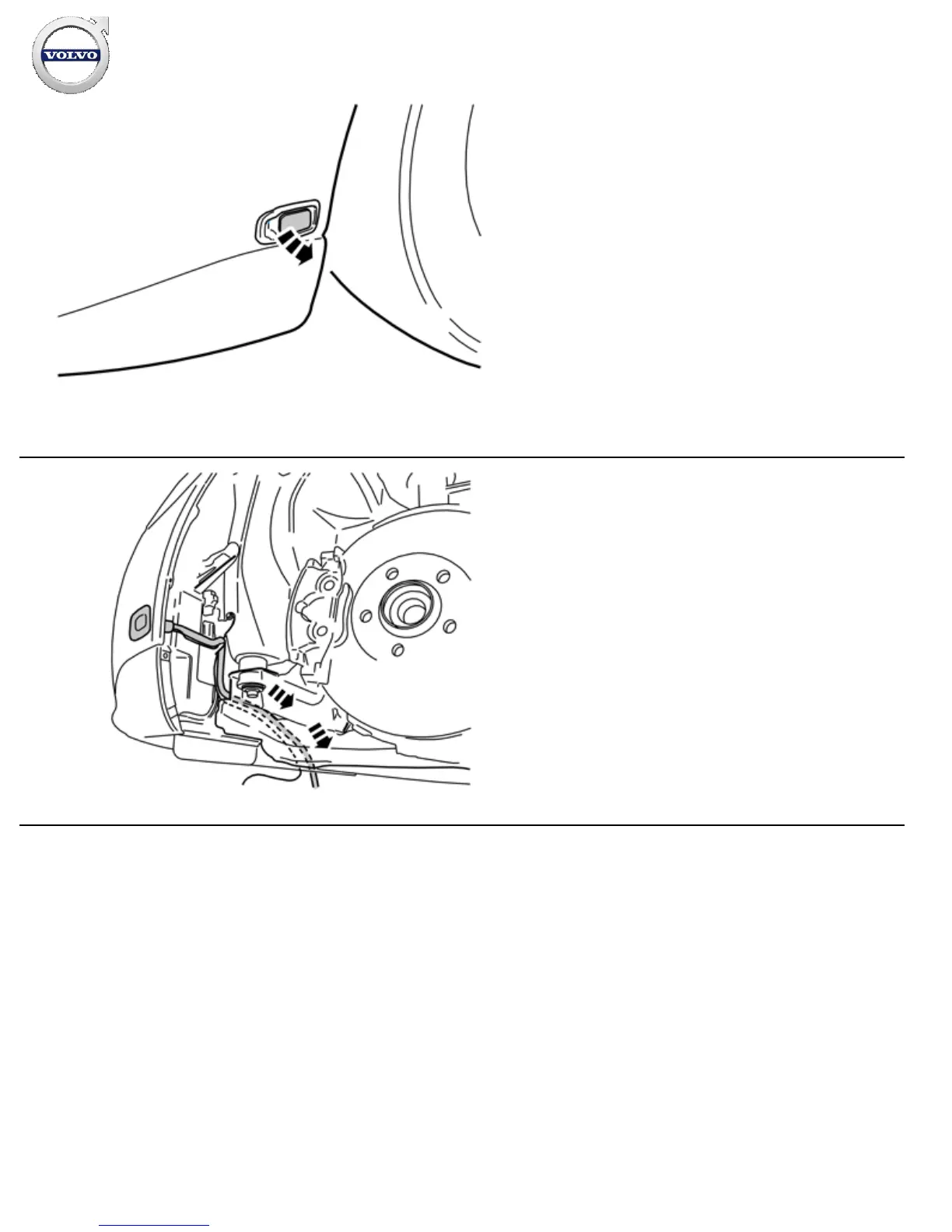

Ensure that the front intake cover opens rearwards.
17
IMG- 231567
Route the cable with the ground lead from the front intake in front
of the subframe's left front mounting.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
© Volvo Car Corporation Electric engine heater, 230V, (R - design) - 31399512 - V1.1
Page 12 / 33
