18
IMG- 231568

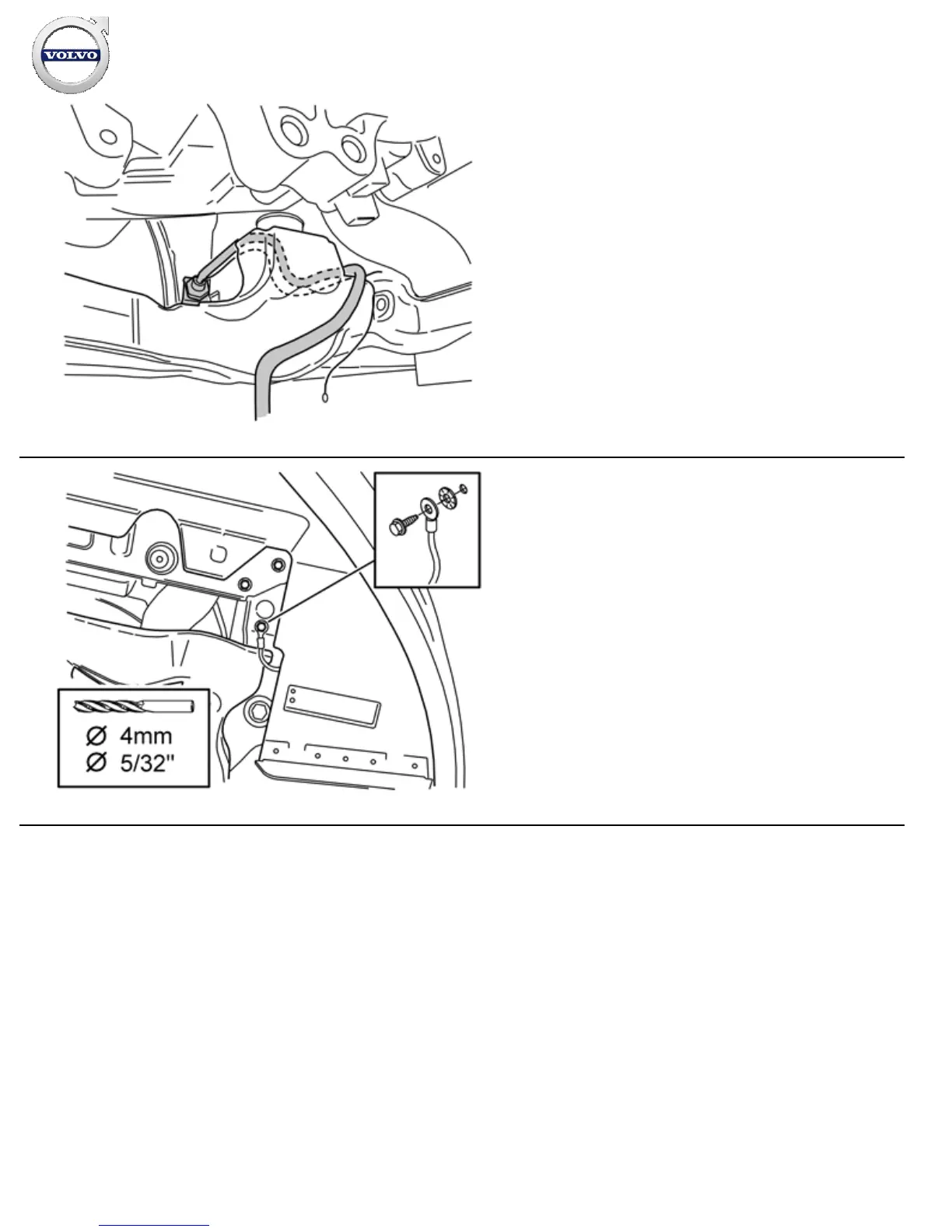

Continue downwards on the inside of the subframe.
19
IMG- 231571
Drill a Ø 4mm (5/32 ") hole for the front intake grounding on the
underside of the left front side member as illustrated.
Deburr the hole edges, remove the drill swarf and apply
rustproofing agent.
Take a screw and toothed washer from the kit and tighten in the
ground cable.
