22
IMG- 316566

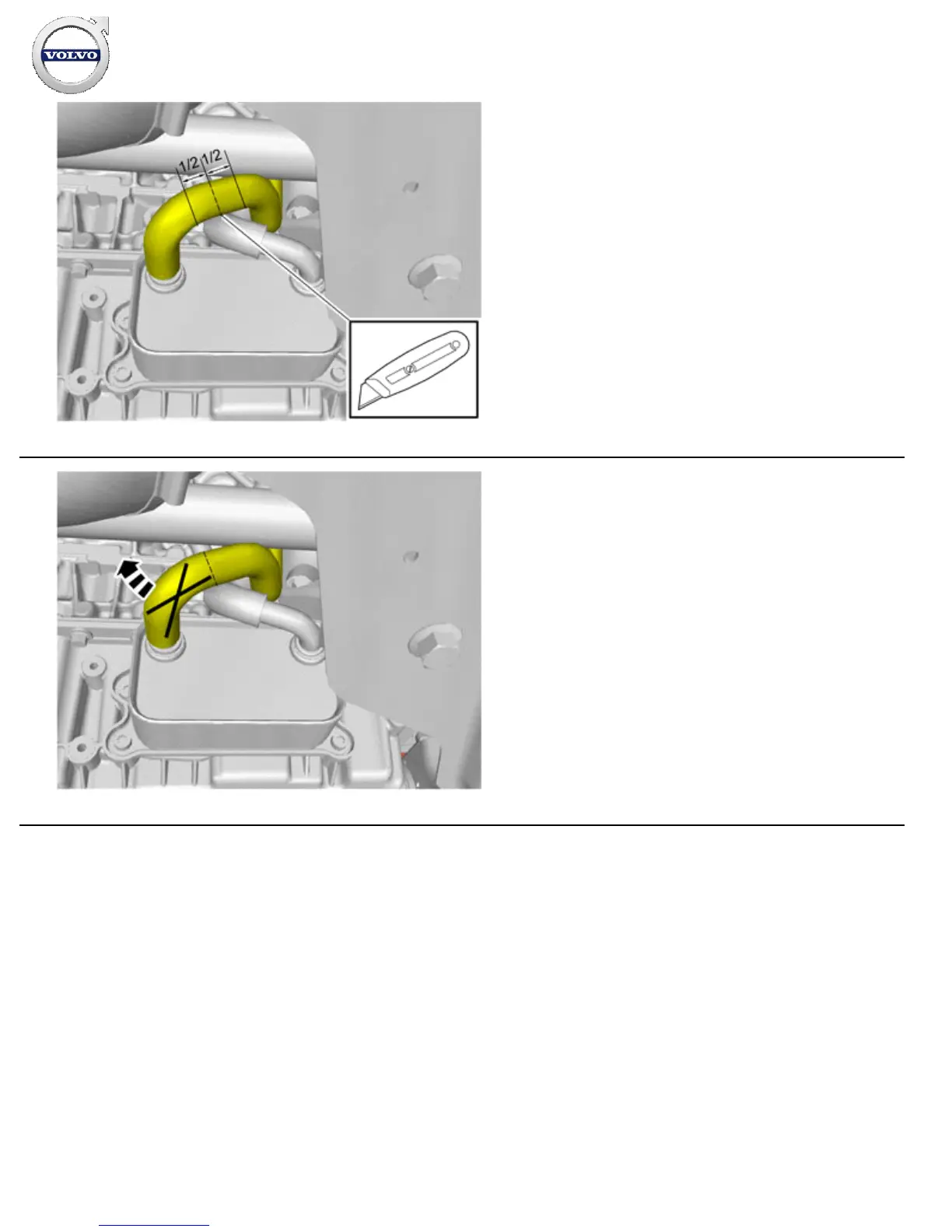

Install the hose again and cut it off approx. in the middle of the
straight hose elbow.
23
IMG- 316568
Pull loose the hose end and throw it away. New hose and nipple
are included in the kit.
