24
IMG- 316571

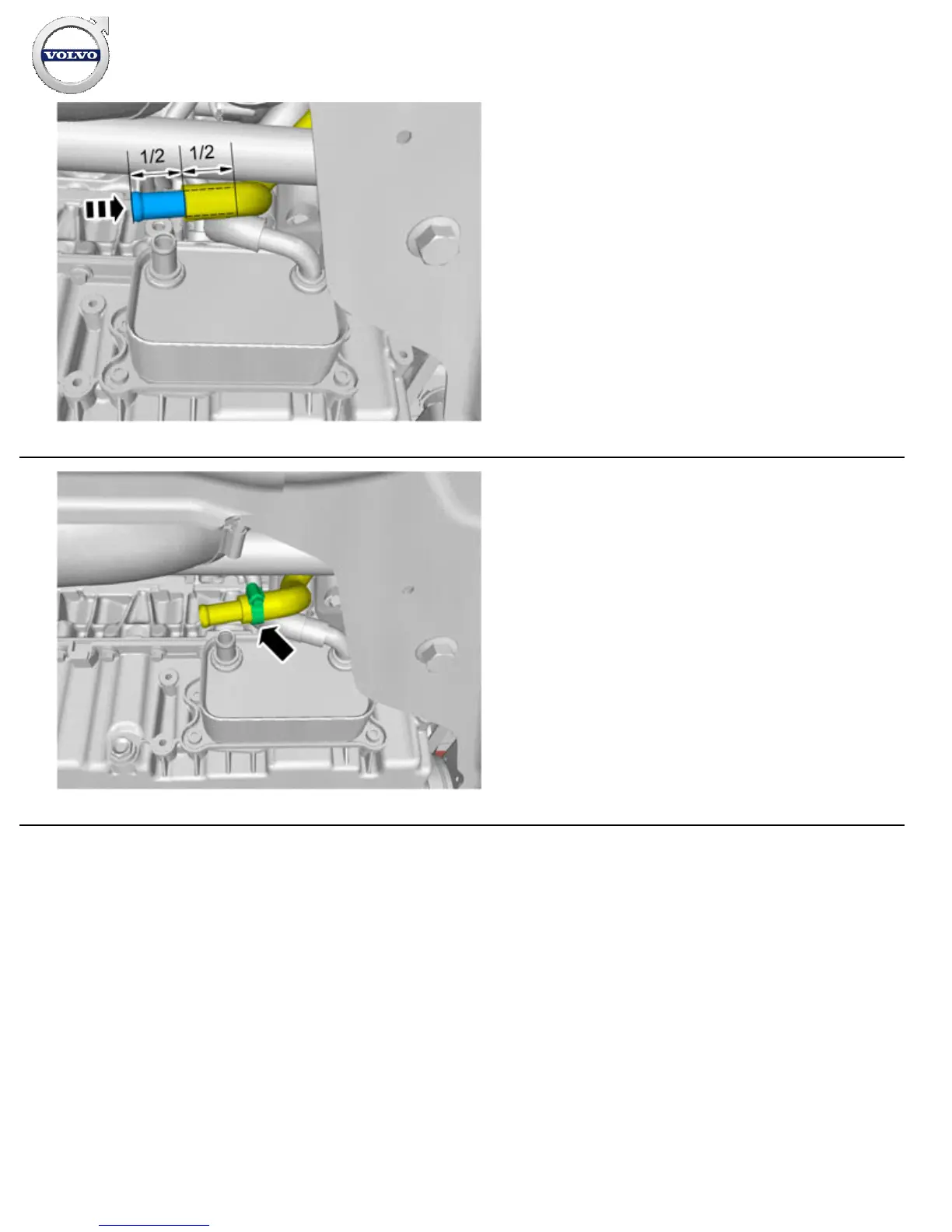

Get a junction nipple from the kit and insert half of it in the
remaining hose part.
25
IMG- 316583
Take hose clamp from the kit and tighten down the nipple.
Tighten the hose clamp securely.
