30
IMG-
316743

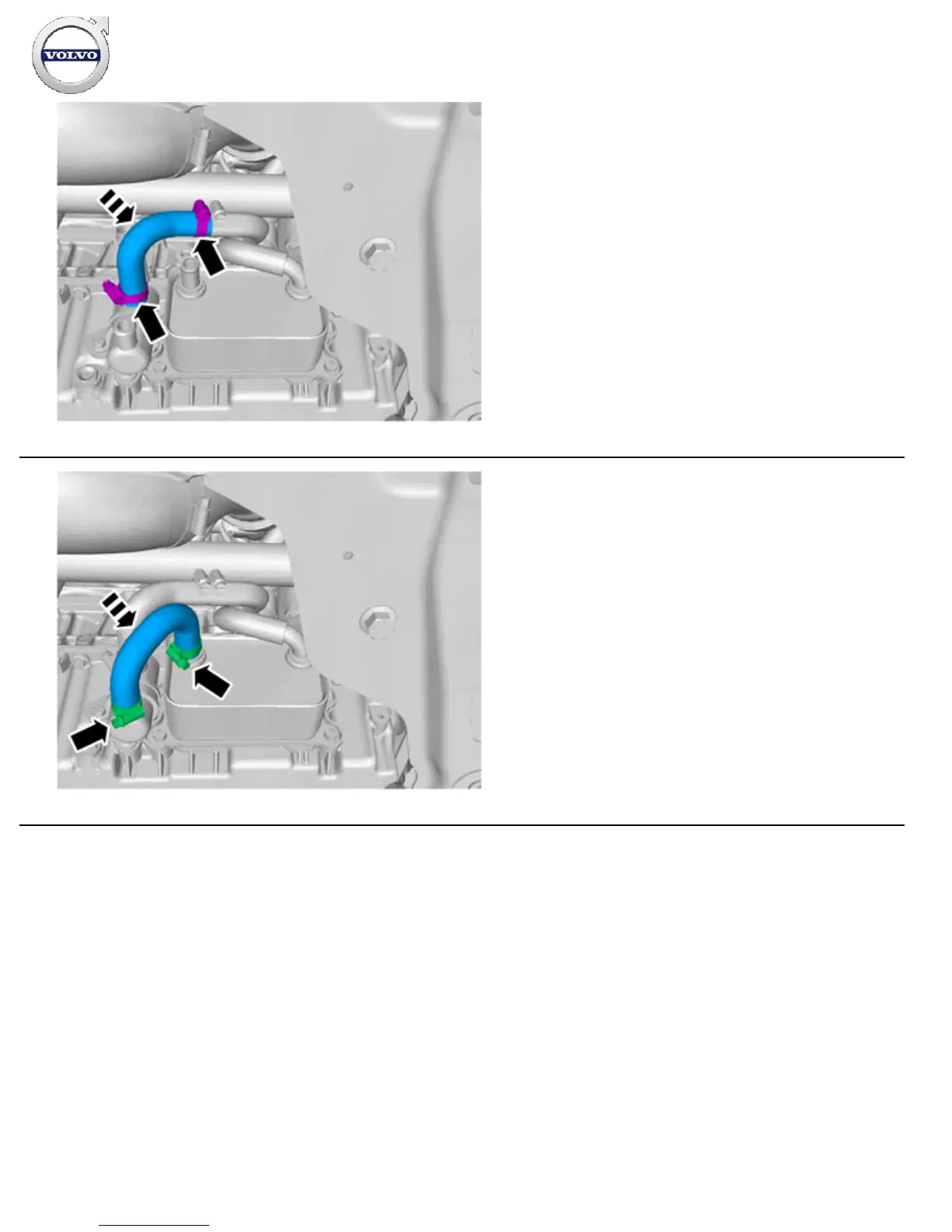

Install the hose between the earlier installed junction nipple and
the upper connection in the engine heater.
Tighten the clamps securely. Make sure that the hoses do not rub
against the drive shaft or hose clamps.
31
IMG-
316744
Get the last junction hose and the two remaining hose clamps
from the kit. Connect the junction hose between the remaining
connections in the engine heater and the oil cooler.
Tighten the clamps securely.
Installation instructions, accessories
Volvo Car Corporation Gothenburg, Sweden
