Volvo 31664097 - Page 20

32
IMG- 317737

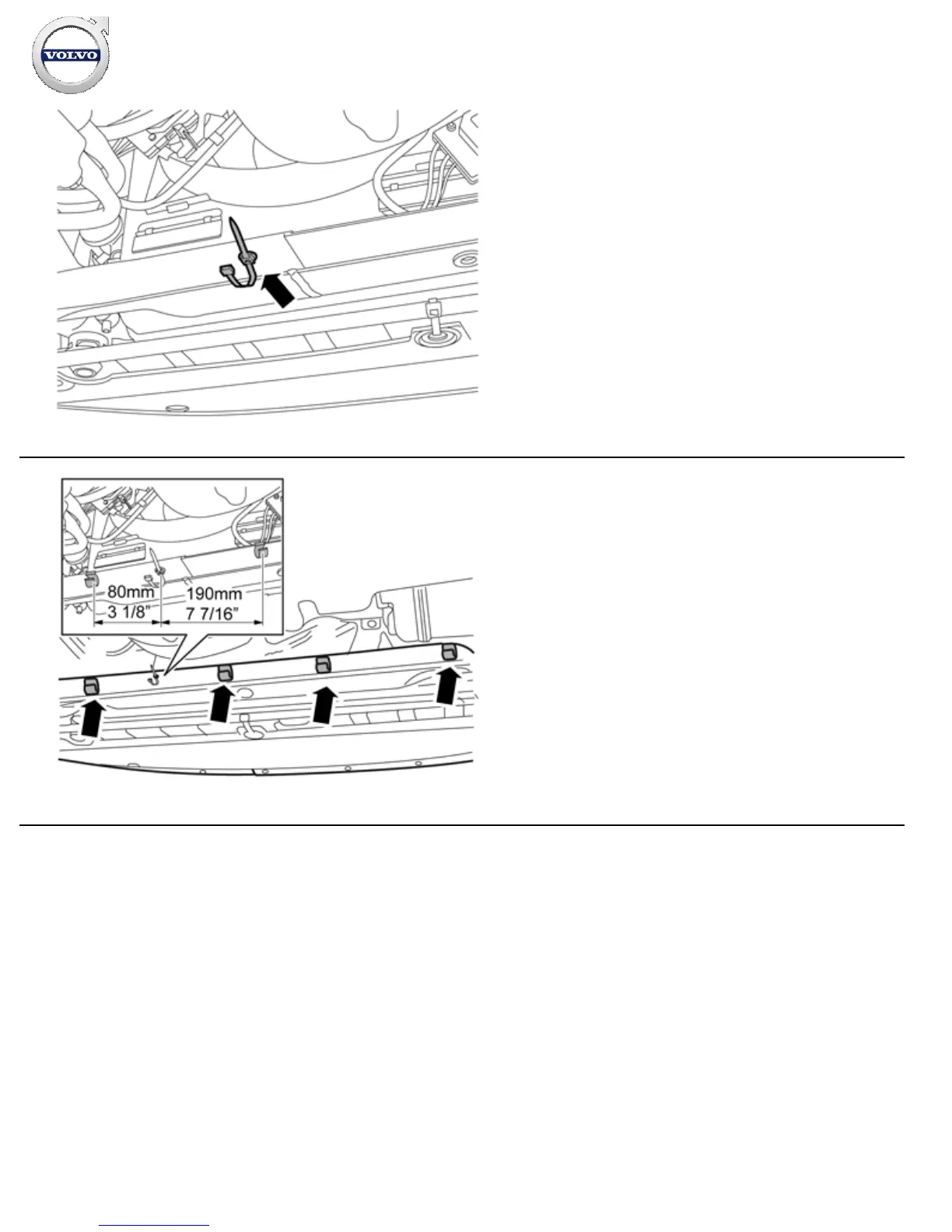

Take the clip with tie strap for a Ø 6.5 mm (1/4 ") hole and
press it into the left hole on the inside of the upper edge of the
subframe.
33
IMG- 317740
Take four clips from the kit and press them into place on the
upper/front edge of the subframe.
