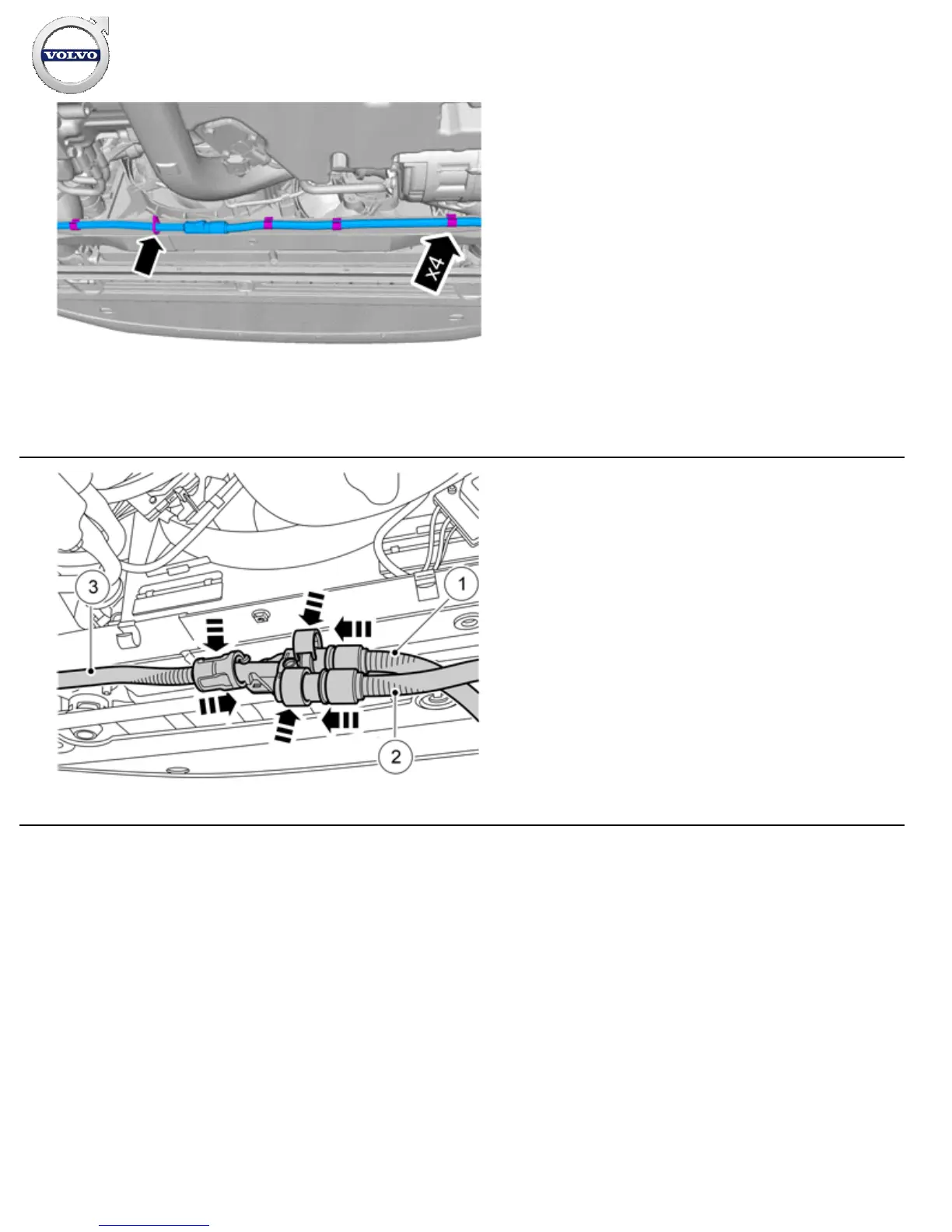

Clamp the cable splice (1) to the inside of the subframe using the
tie strap and press the cable into the clips.
37
IMG-
231576
Applies when fitting passenger compartment connector
at the same time
If the accessory passenger compartment connector is to be
installed at the same time, install the junction connector now and
lubricate the O
-rings of the connector as described earlier.
Connect:
cable (1) from heater
cable (2) to the passenger compartment connector socket
cable (3) to the front inlet
Installation instructions, accessories
