Connect the lifting hook to the inner hole.
Permanent connection with shackle.
Connect the lift ring with chain from the ratchet block. Install the pin and secure it with the lock pin.

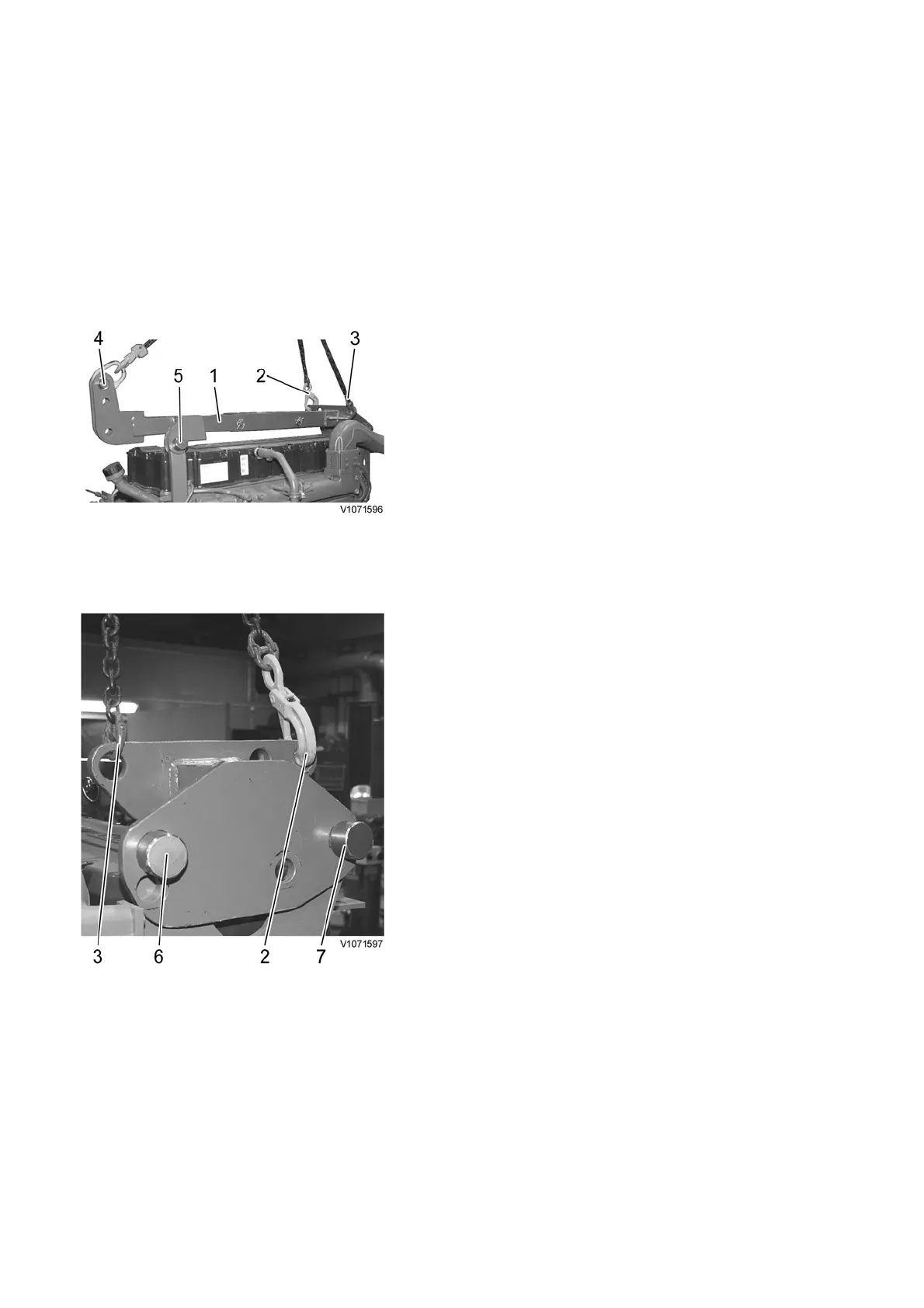

5, 6, 7 - Connect the lifting tool to the engine's attaching points. Install the pins and secure them with the lock pins.
Lift carefully and adjust the lift angle with the ratchet block, depending on the engine and machine being handled.
NOTE!
Risk area, suspended load.
Never stand under a suspended load as this may be associated with fatal danger.
Connecting lifting tool to engine D12D
Figure 15
Engine D12D
Figure 16
1.
2.
3.
4.
Inner pipe with telescopic function is adapted to the long position and turned up according to the figure (4.) Install
the pins and secure them with the lock pins.
Connect the lifting hook to the outer hole.
Permanent connection with shackle.
Connect the lift ring with chain from the ratchet block. Install the pin and secure it with the lock pin.
5, 6, 7 - Connect the lifting tool to the engine's attaching points. Install the pins and secure them with the lock pins.
Lift carefully and adjust the lift angle with the ratchet block, depending on the engine and machine being handled.
